300V Series

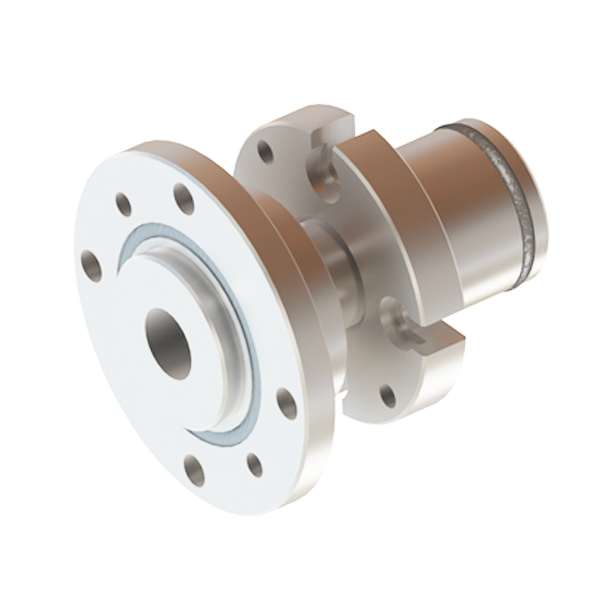

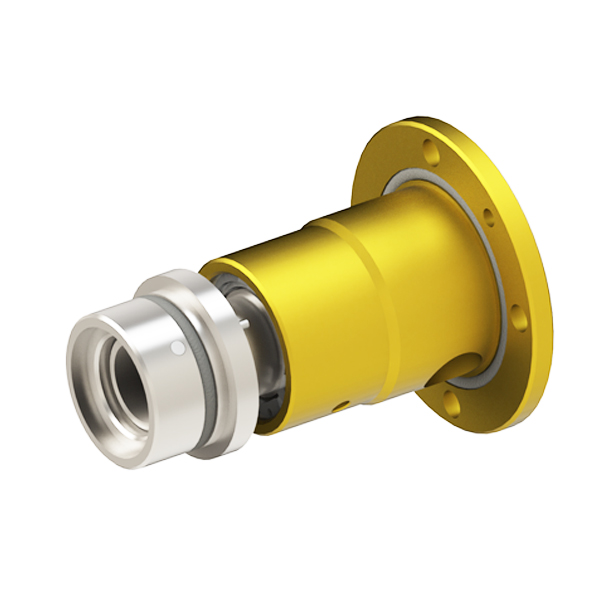

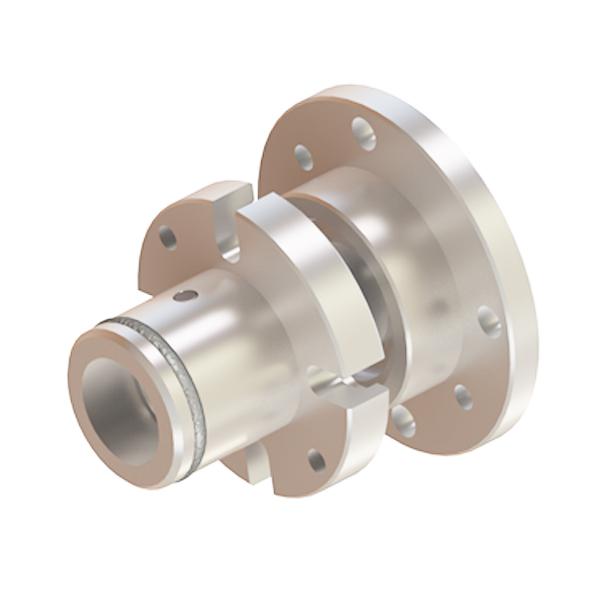

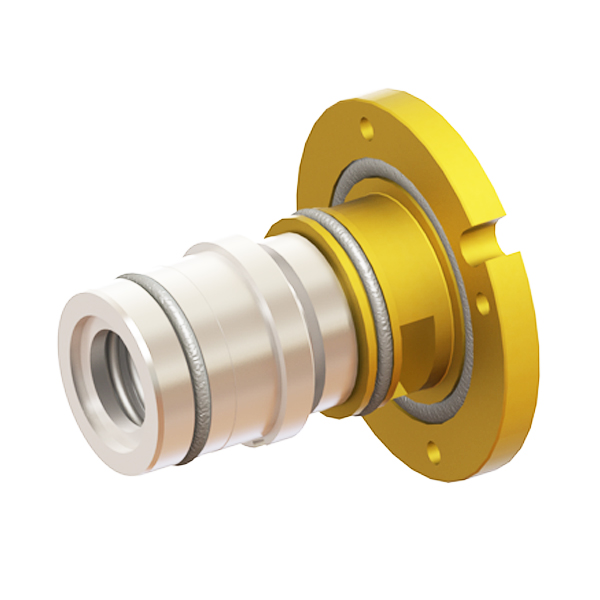

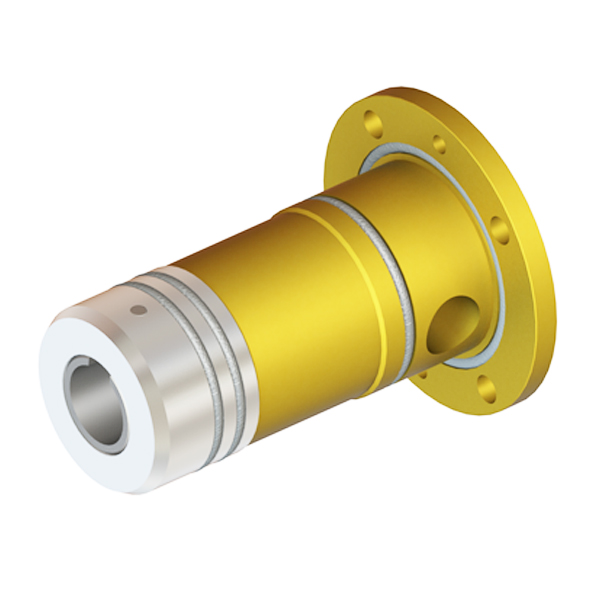

300V Series Continuous Casting Rotary Joints

Medium: Water

Size: 1/2″ (DN15) – 1 1/2″ (DN40)

– Bearingless design

– Single and dual flow models

– In the shaft mounted design

– Full flow design

– Easy and quick replacement of seals

– Reliable useage with poor water quality

– Brass and stainless steel models

– Special design eliminates flexible hoses

– Complete stainless steel design as option

– Please consult factory for special applications


Warning: sizeof(): Parameter must be an array or an object that implements Countable in /home/rotoflui/public_html/wp-content/themes/betheme/woocommerce/single-product/meta.php on line 26
Description

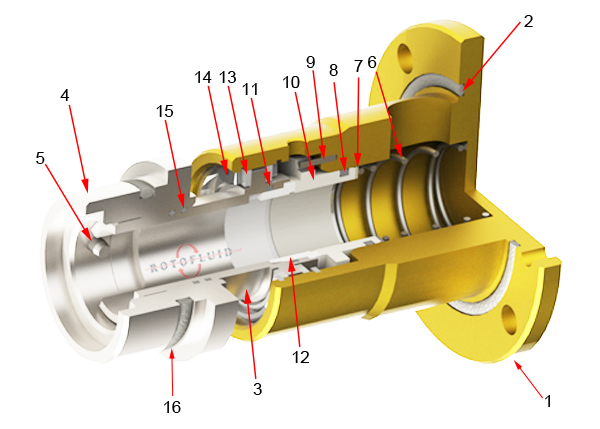

WEB-ROTOFLUID-ROTARY JOINT-300V-CUTAWAY

300V Series Rotary Joints are designed and manufactured according to machine dimensions. Internal design and spare parts may be different in each design. Please consult factory for further information.

NO PART NAME
1 300V HOUSING
2 FLANGE O-RING
3 INTERNAL SHAFT
4 FRONT SHAFT
5 PIM
6 SPRING
7 WASHER
8 FLOATING SEAL O-RING

NO PART NAME
9 PIM
10 FLOATING SEAL RING
11 SEAL O-RING
12 SEAL RING
13 TEFLON WASHER
14 INT. RETAINING RING
15 INTERNAL SHAFT O-RING
16 FRONT SHAFT O-RING

Max. Water Pressure: 10 bar (150 psi)

Max. Water Temperature: 120ºC (250ºF)

Max. Speed: 100 RPM  (100 minˉ¹)

Do not work with max. pressure at max. speed.

300V SERIES INSTALLATION & OPERATION & ASSEMBLY INSTRUCTIONS – ENGLISH

300V SERIES MAINTENANCE INSTRUCTIONS – ENGLISH

300V SERIES INSTALLATION INSTRUCTIONS – ENGLISH
