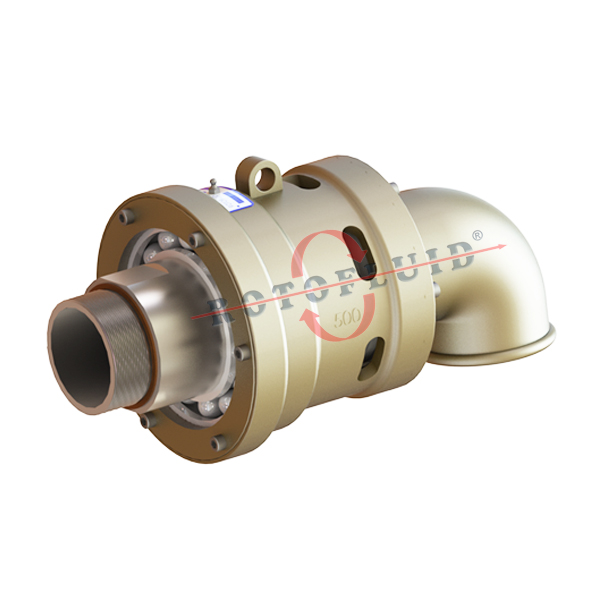

500 Series Rotary Joints
Medium: Water, Steam, Hot Oil, Air
Size: 2″ (DN50) – 4″ (DN100)
– Self supported rotary joints

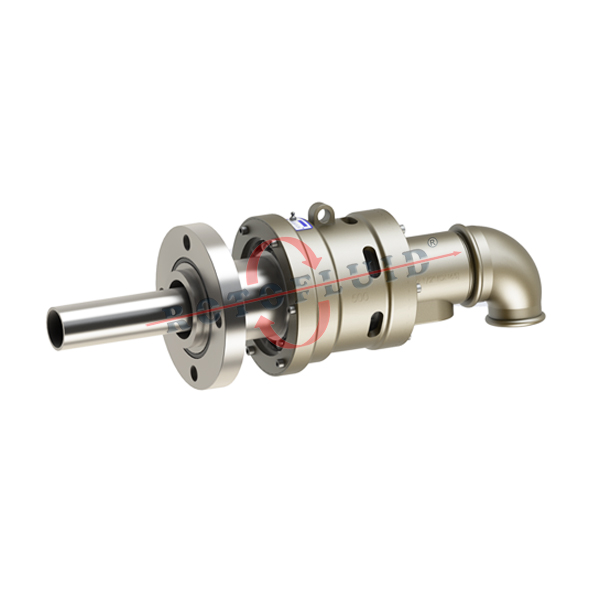

– Single and dual flow models
– Radial hose connections on housing
– Balanced mechanical seals
– Easy and quick replacement of seals
– Reliable usage with poor water quality
– Cast iron housing
– Stainless steel internal parts
– Consult factory for special applications
Warning: sizeof(): Parameter must be an array or an object that implements Countable in /home/rotoflui/public_html/wp-content/themes/betheme/woocommerce/single-product/meta.php on line 26

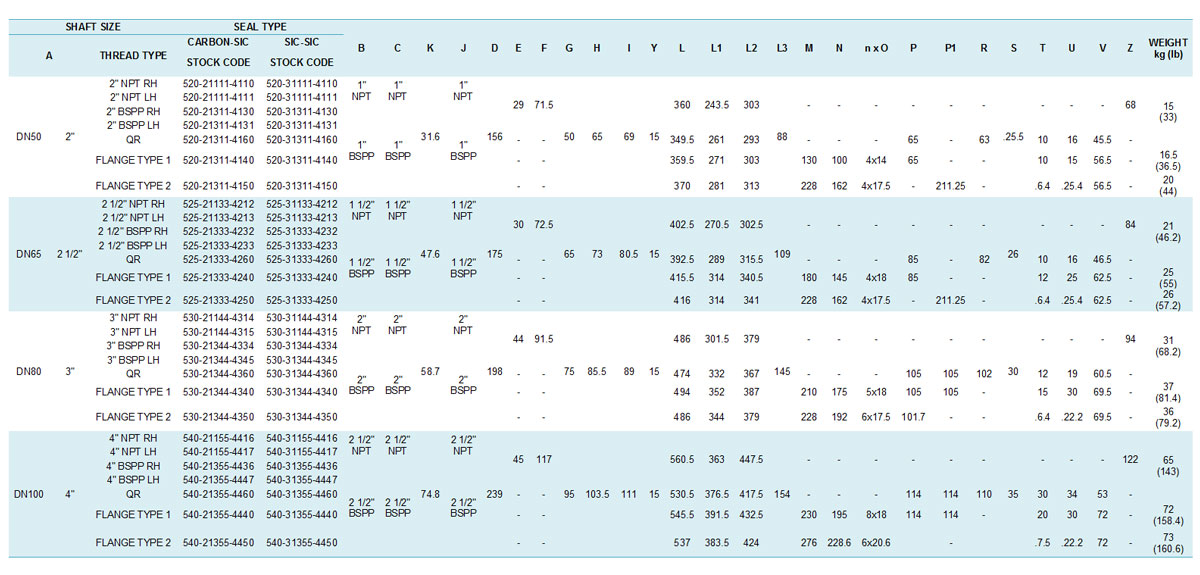

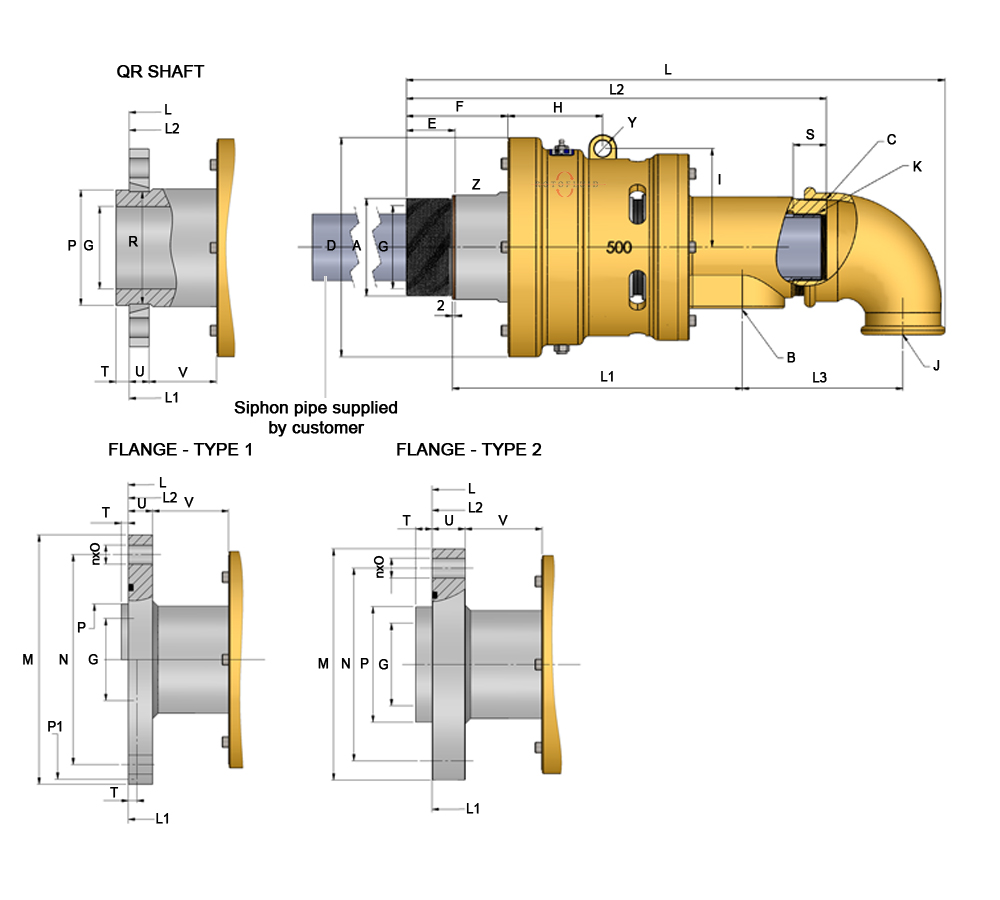

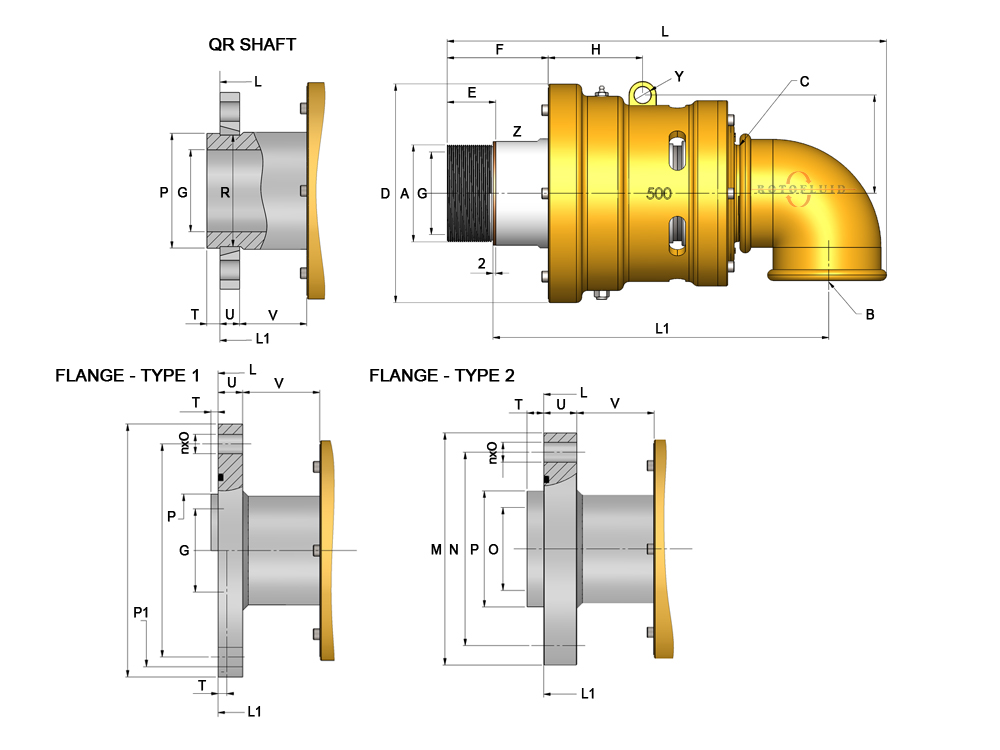

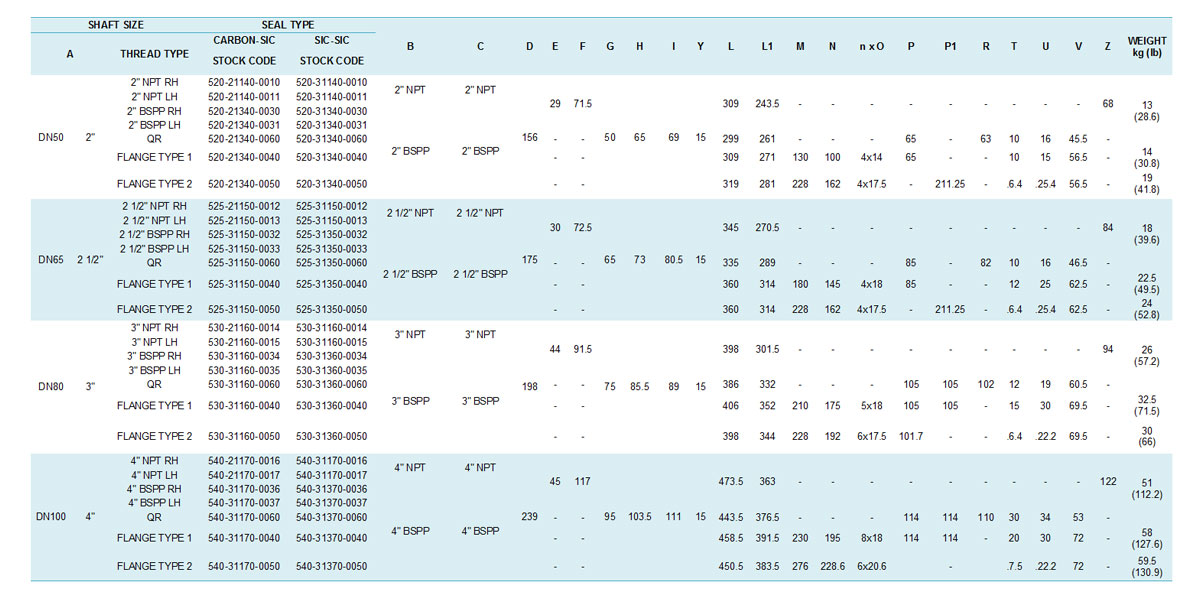

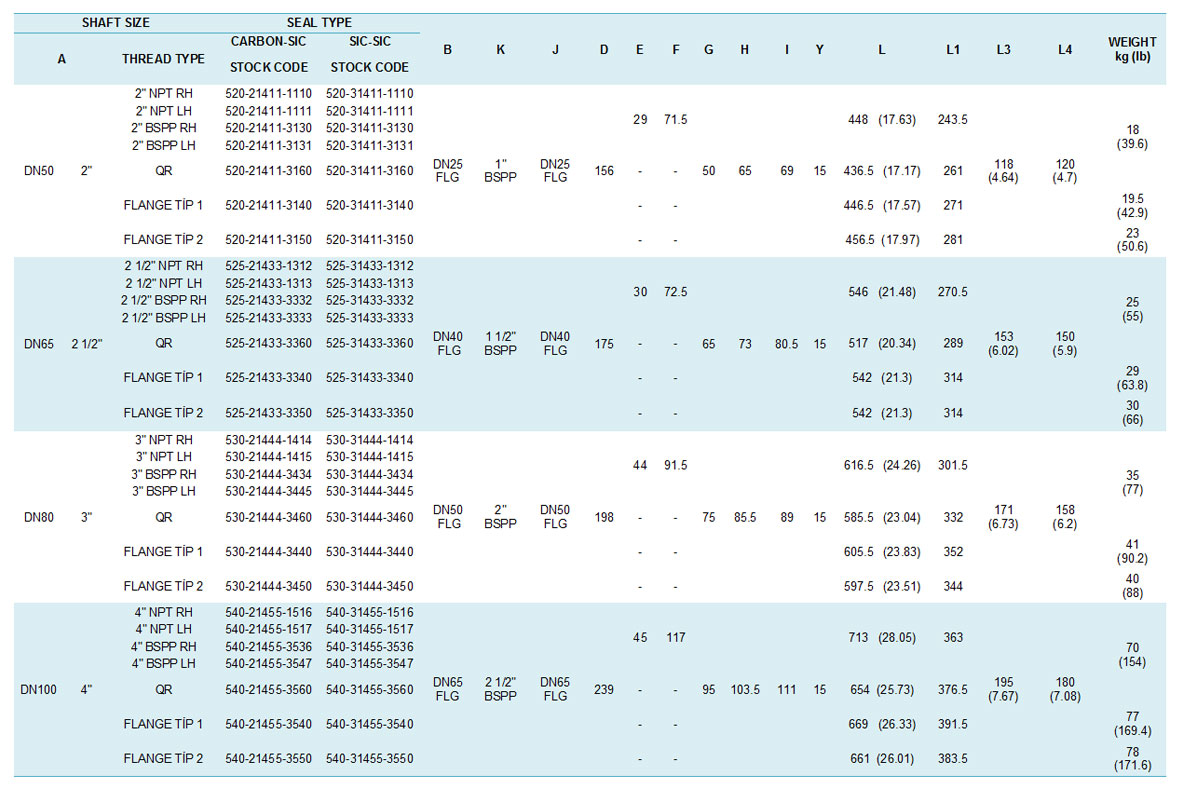

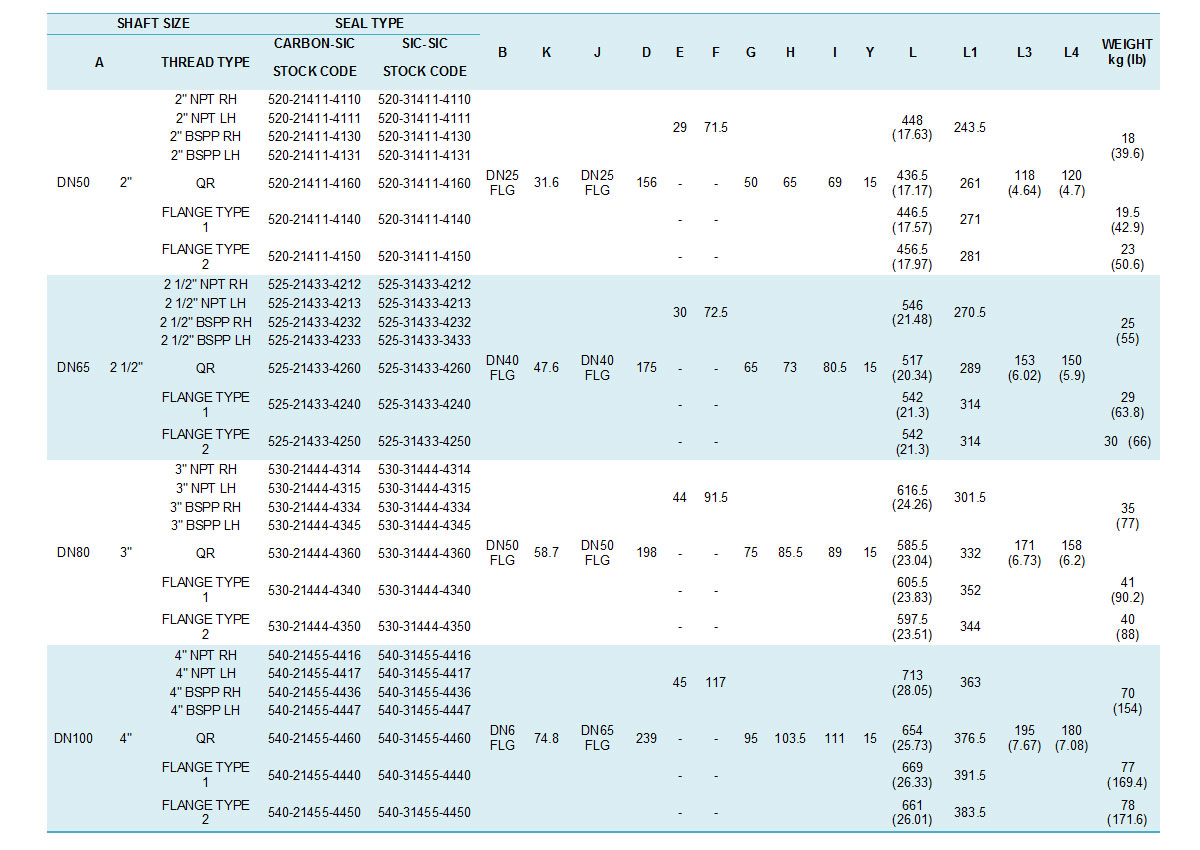

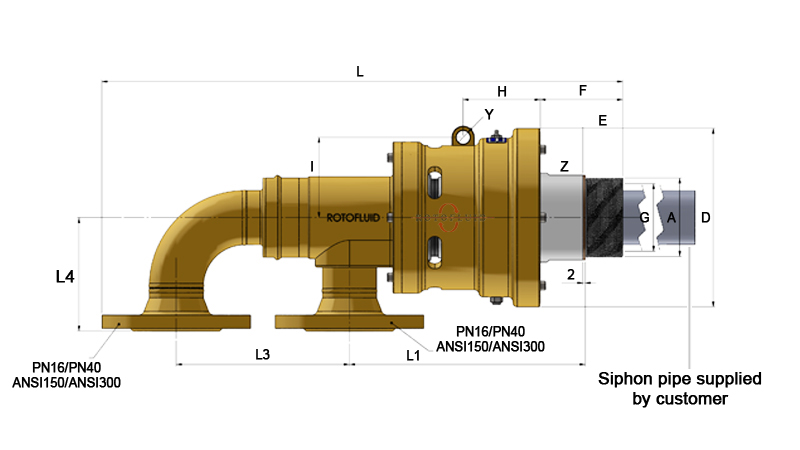

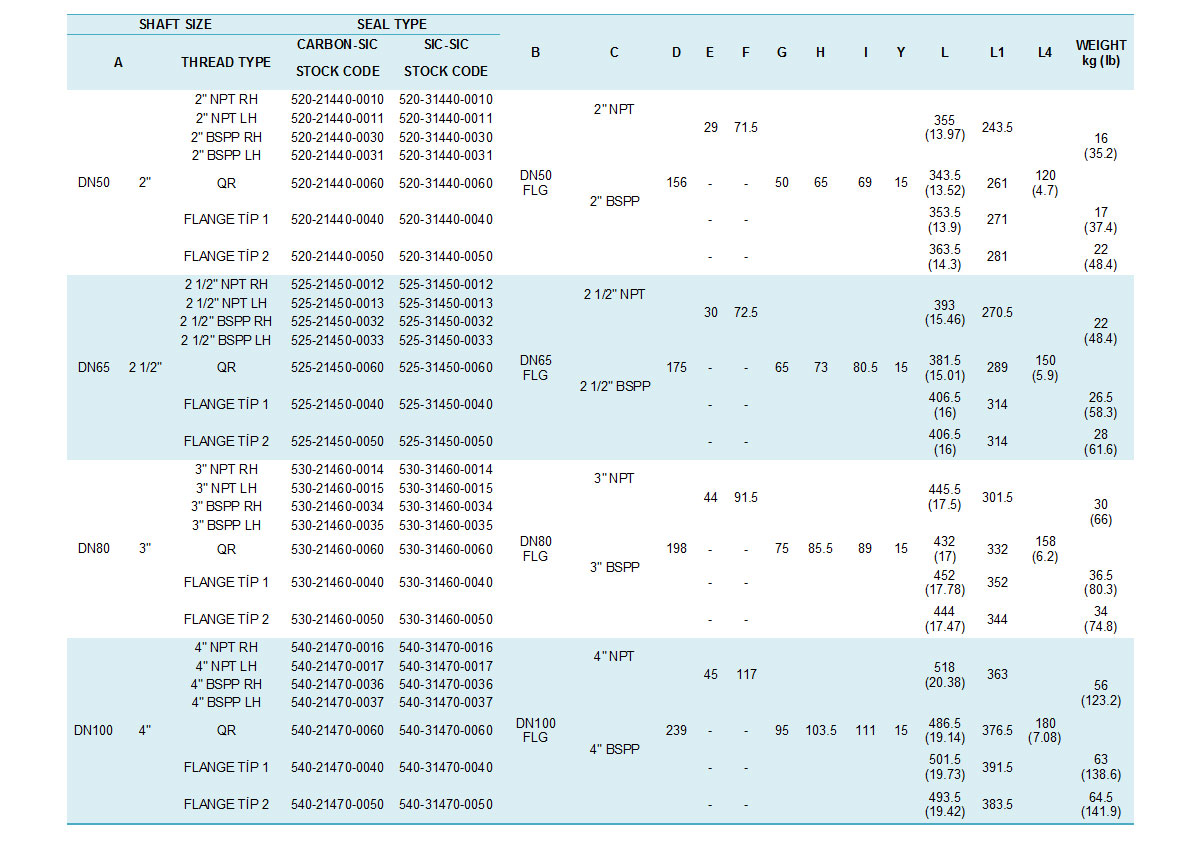

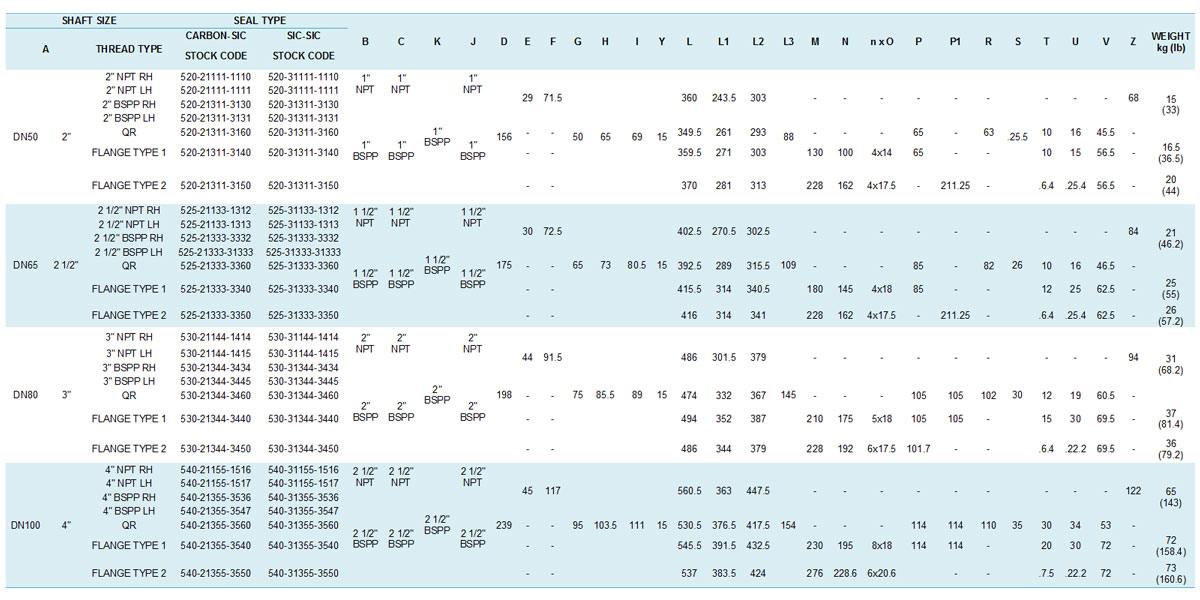

Max. Pressure: 10 bar (150 psi) Max. Temperature: 120ºC (250ºF) Max. Speed: 750 RPM (750 minˉ¹) Do not work with max. pressure at max. speed. No need to disassemble the joint from the system. Just remove bolts on the end cap and seperate end cap with hoses. Remove old rotary seal and floating seal group and replace them with new ones. Place end cap on the housing and fix it with appropriate bolts.
NO
PART NAME
1
HOUSING
2
FRONT HOUSING FLANGE
3
BOLTS
4
SHAFT
5
FRONT BALL BEARING
6
SPACER
7
REAR BALL BEARING
8
EXT. RETAINING RING
9
SEAL RING O-RING
10
PIM
11
ROTARY SEAL RING
12
FLOATING SEAL RING
13
PIM
NO
PART NAME
14
FLOATING SEAL RING O-RING
15
FLOATING SEAL HOLDER
16
FLOATING SEAL HOLDER O-RING
17
PIM
18
SPRING
19
HOUSING FLANGE
20
PIM
21
END CAP O-RING
22
END CAP
23
BOLTS
24
ELBOW
25
GREASE RING
26
GREASE RELIEF VALVE
