600 Series

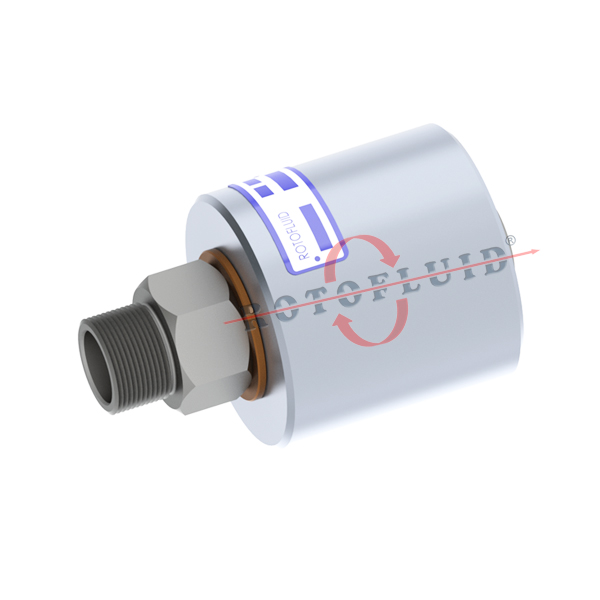

600 Series Rotary Joint
Medium: Air, Hydraulic

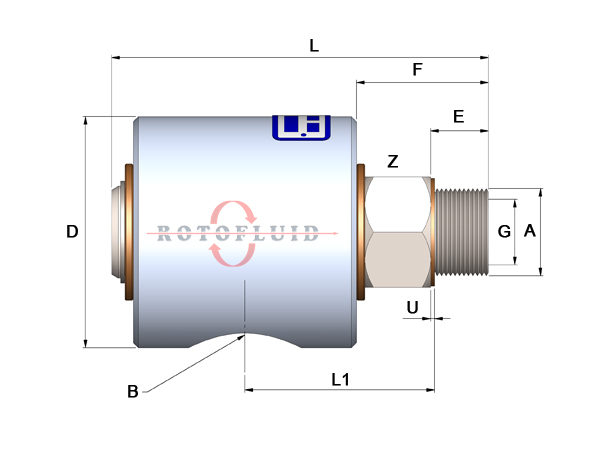

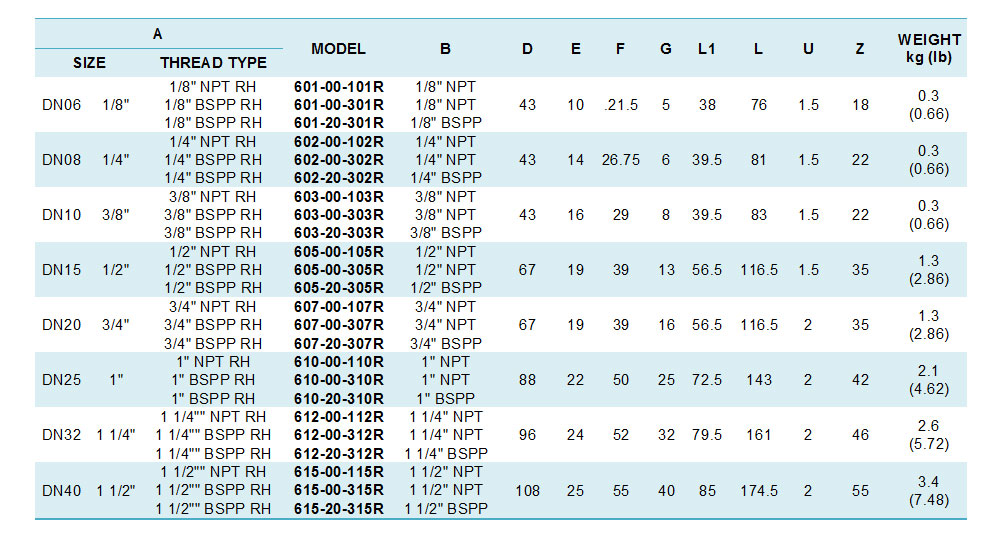

Size: 1/8″ (DN06) – 1 1/2″ (DN40)
– Self supported design
– Radial hose connections on housing
– Aluminium housing
– Hard chrome plated shaft
– Bronze bearing and washer
– Special designs for other mediums
– Consult factory for special applications
Warning: sizeof(): Parameter must be an array or an object that implements Countable in /home/rotoflui/public_html/wp-content/themes/betheme/woocommerce/single-product/meta.php on line 26
Max. Air Pressure: 10 bar (150 psi) Max. Vacuum: 7 kPA (2″ HG) Max. Hydraulic Pressure (10 dev/dak): 300 bar (4,350 psi) Max. Hydraulic Pressure (250 dev/dak): 10 bar (150 psi) Max. Temperature: 120ºC (250ºF) Max. Speed: 250 RPM (250 minˉ¹) Do not work with max. pressure at max. speed.

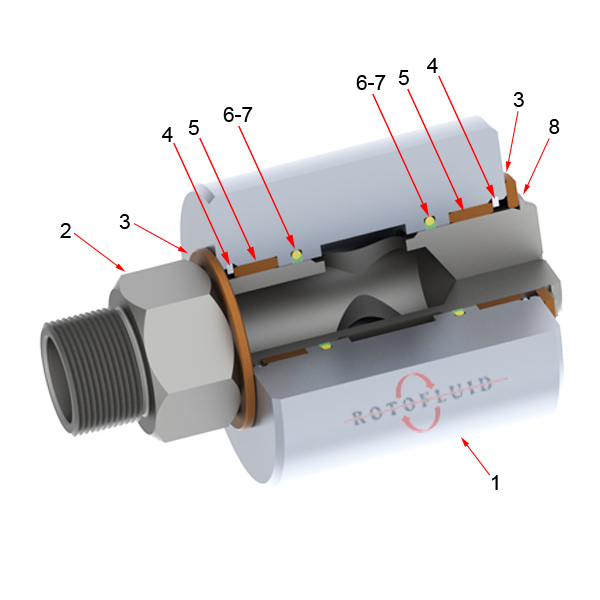

NO
PART NAME
1
HOUSING
2
SHAFT
3
BRONZE WASHER
4
INT. RETAINING RING
NO
PART NAME
5
BRONZE BEARING
6
BACK-UP
7
SEAL O-RING
8
EXT. RETAINING RING
