600+1 Series

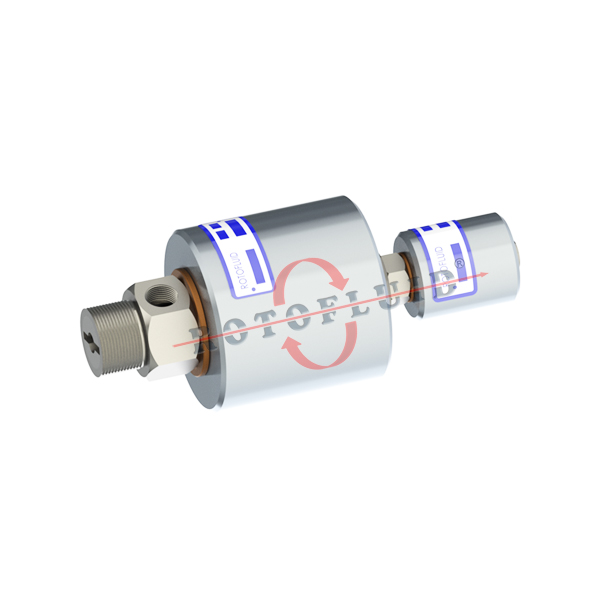

600+1 Series Rotary Joint
Medium: Air, Hydraulic

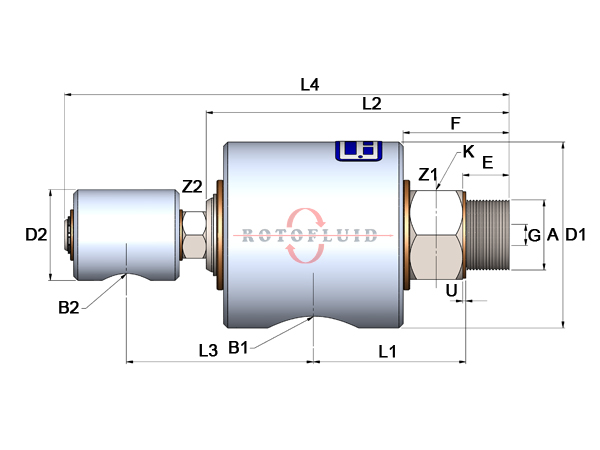

Ölçü: 1/2″x1/8″ (DN15xDN06) – 1″x3/8″ (DN25-DN10)
– Self supported design
– Radial hose connections on housing
– Aluminium housing
– Hard chrome plated shaft
– Bronze bearing and washer
– No interpassage leakage between ports
– Special designs for other mediums
– Consult factory for special applications
Warning: sizeof(): Parameter must be an array or an object that implements Countable in /home/rotoflui/public_html/wp-content/themes/betheme/woocommerce/single-product/meta.php on line 26
Max. Air Pressure: 10 bar (150 psi) Max. Vacuum: 7 kPA (2″ HG) Max. Hydraulic Pressure (10 dev/dak): 300 bar (4,350 psi) Max. Hydraulic Pressure (250 dev/dak): 10 bar (150 psi) Max. Temperature: 120ºC (250ºF) Max. Speed: 250 RPM (250 minˉ¹) Do not work with max. pressure at max. speed.

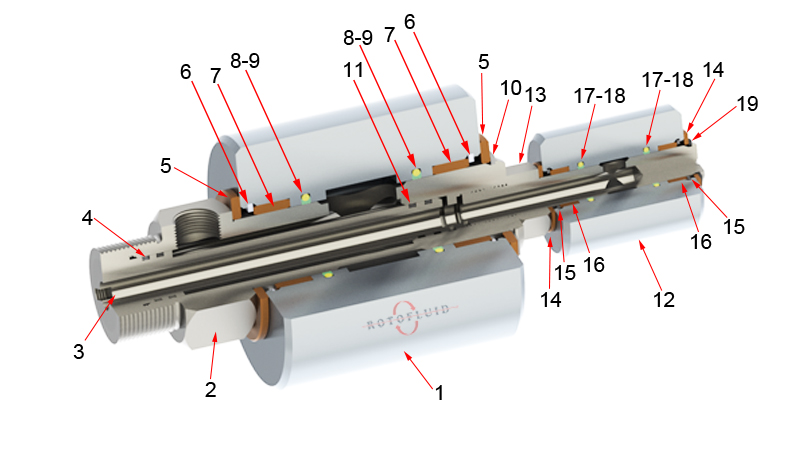

NO
PART NAME
1
HOUSING
2
SHAFT
3
INNER SHAFT
4
INNER SHAFT O-RING
5
BRONZE WASHER
6
INT. RETAINING RING
7
BRONZE BEARING
8
BACK-UP
9
SEAL O-RING
10
EXT. RETAINING RING
NO
PART NAME
11
INNER SHAFT O-RING
12
HOUSING
13
SHAFT
14
BRONZE WASHER
15
INT. RETAINING RING
16
BRONZE BEARING
17
BACK-UP
18
SEAL O-RING
19
EXT. RETAINING RING
