700 Series
700 Series Rotary Joints
Medium: Air,Hydraulic

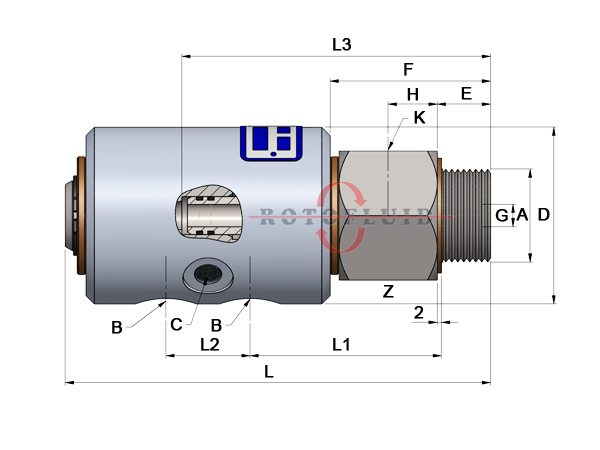

Size: 2×1/4″ (2xDN08) – 2×3/4″ (2xDN20)
– Self supported rotary joint
– 2-ports design
– Radial housing connection on housing
– Aluminium Housing
– Hard chrome plated steel shaft
– Bronze bearing for slow speeds
– 1/8″ (DN06) drain line between ports

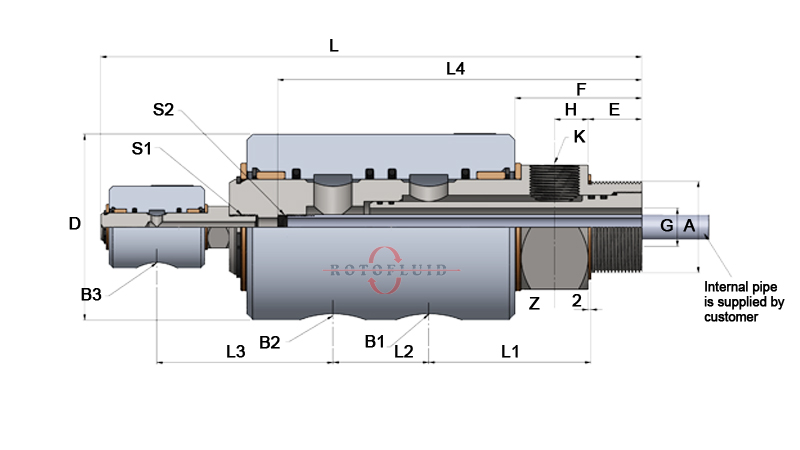

– 3-port design with an additional 600 Series joint
– Consult factory for special applications
Warning: sizeof(): Parameter must be an array or an object that implements Countable in /home/rotoflui/public_html/wp-content/themes/betheme/woocommerce/single-product/meta.php on line 26
Max. Air Pressure: 10 bar (150 psi) Max. Vacuum: 7 kPA (2″ HG) Max. Hydraulic Pressure (10 RPM): 300 bar (4,350 psi) Max. Hydraulic Pressure (250 RPM): 10 bar (150 psi) Max. Temperature: 120ºC (250ºF) Max. Speed: 250 RPM (250 minˉ¹) Do not work with max. pressure at max. speed.

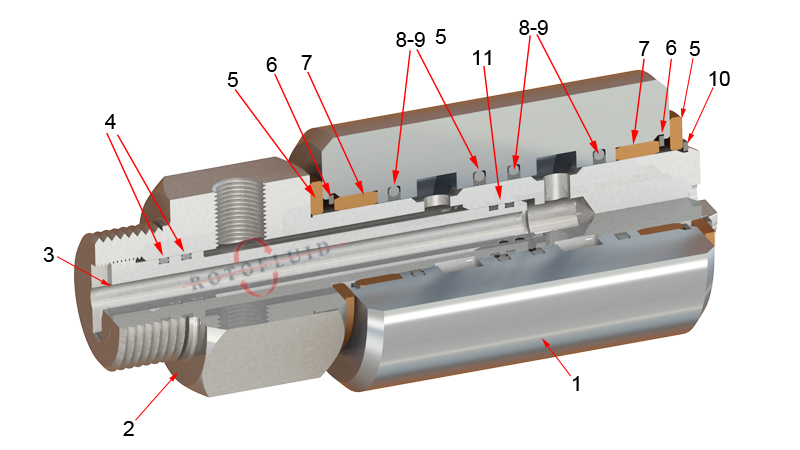

NO
PART NAME
1
HOUSING
2
SHAFT
3
INNER SHAFT
4
INNER SHAFT O-RING
5
BRONZE WASHER
6
INT. RETAINING RING
NO
PART NAME
7
BRONZE BEARING
8
SEAL O-RING
9
BACK-UP
10
EXT. RETAINING RING
11
INNER SHAFT O-RING
