8000 Series

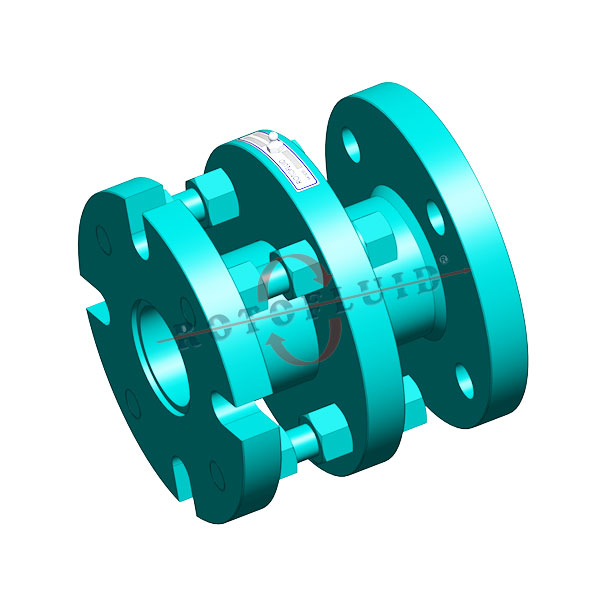

8000 Series Swivel Joints
Medium: Water, Pneumatics, Chemicals, All Liquids
Size: 2″ (DN50) – 12″ (DN300)
– Single ball race design
– Deep hardened ball race
– Different seal alternatives for different applications
– Different connection style alternatives upon customer request
Warning: sizeof(): Parameter must be an array or an object that implements Countable in /home/rotoflui/public_html/wp-content/themes/betheme/woocommerce/single-product/meta.php on line 26

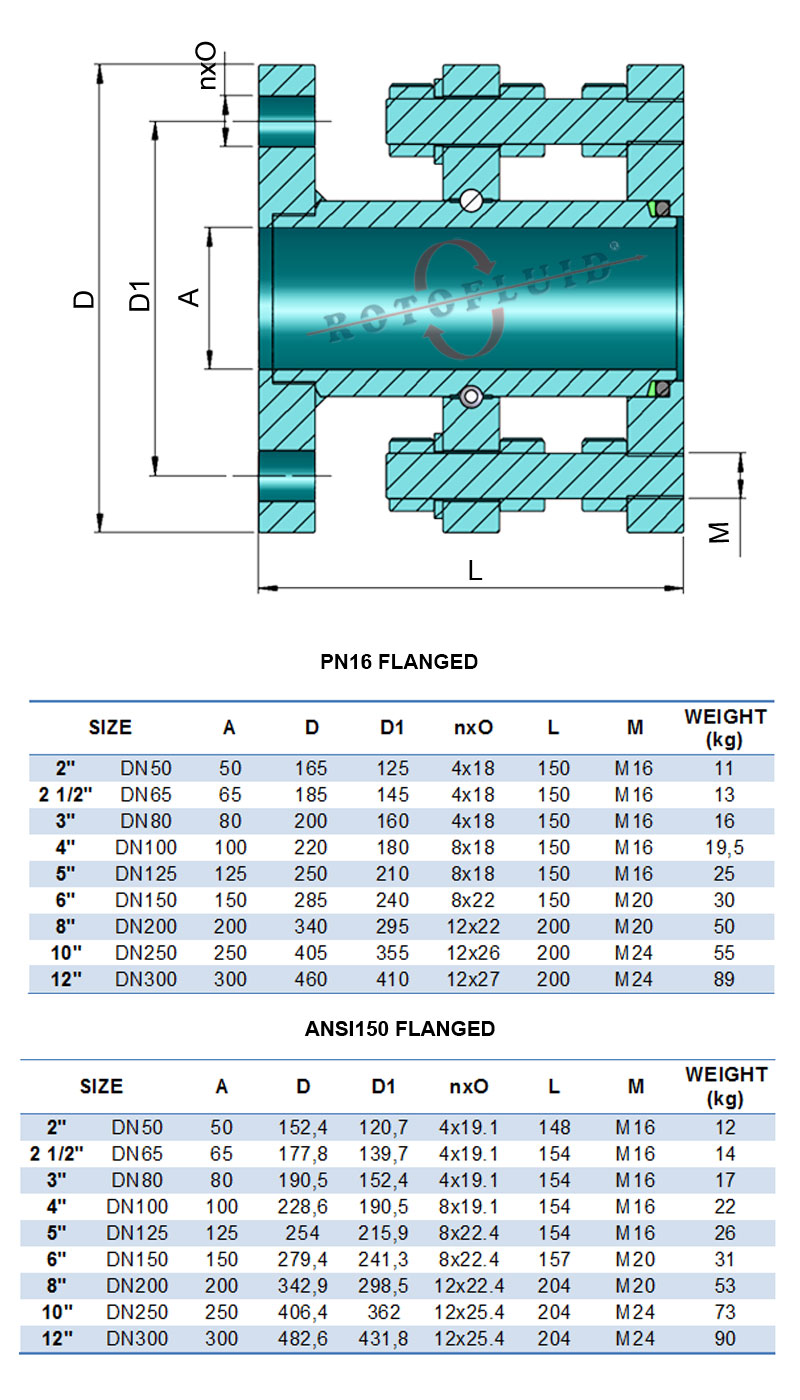

Single Ball Race Design Size: 2″ (DN50) – 12″ (DN300) Material: ST52-3, 42CrMo4, AISI304,316,316TI Other materials upon request Max. Temperature: (-45⁰C) – (200⁰C) (-49⁰F) – (392⁰F) Max. Pressure: 20 bar (290 psi) Connection Style: Flanged (DIN, ANSI, etc.)

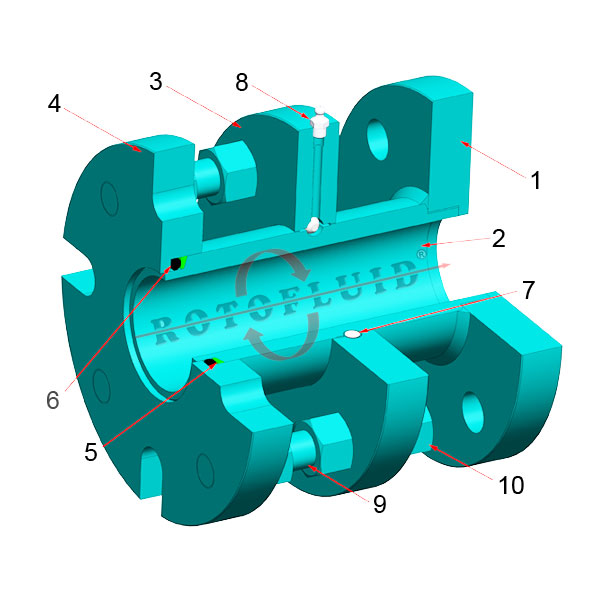

NO
PART NAME
1
FRONT FLANGE
2
SHAFT
3
CENTER FLANGE
4
REAR FLANGE
5
BACK-UP
6
O-RING
7
BALLS
NO
PART NAME
8
GREASE RING
9
STUD BOLT
10
NUTS
11
WASHER
12
BALL PLUG
13
CAP SCREW
