A Series Ball Joints
Medium: Hydraulic, Pneumatic
Size: 3/4″ (DN20) – 5″ (DN125)
– Style 20 standartd production
– Other styles upon request
– No lubrication needed
– Steel and AISI316TI standard
– Other materials upon request
– Articulated motion only

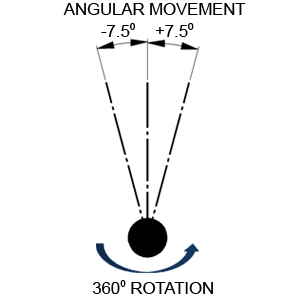

– ±7.5⁰ angular movement
Warning: sizeof(): Parameter must be an array or an object that implements Countable in /home/rotoflui/public_html/wp-content/themes/betheme/woocommerce/single-product/meta.php on line 26

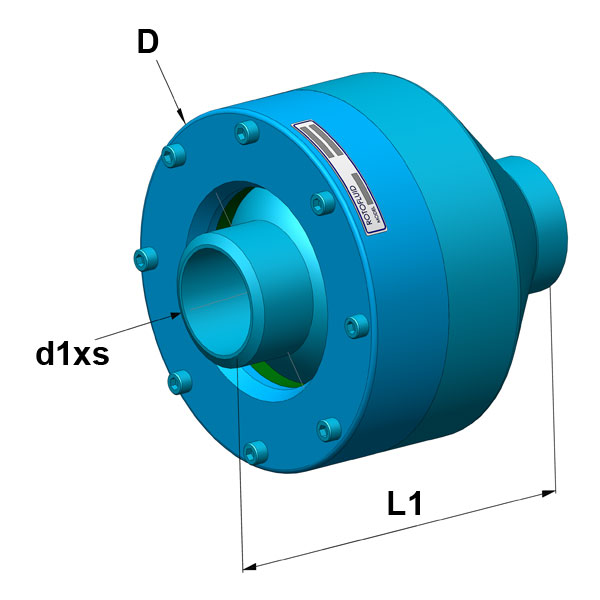

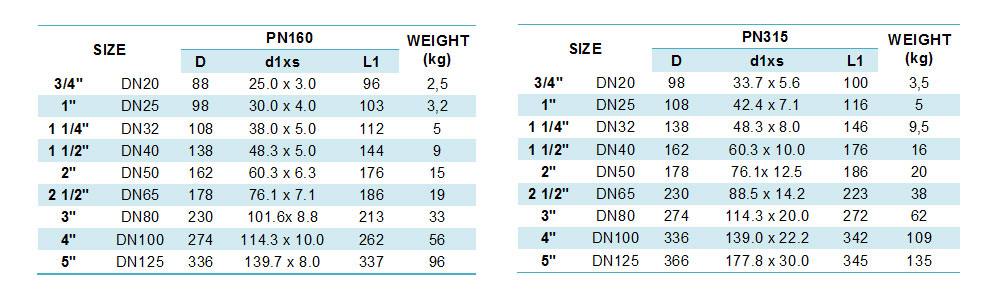

Size: 3/4” (DN20) – 5” (DN125) Material: 42CrMo4, AISI316TI Max. Temperature: (-20⁰C) – (120⁰C) / (-4⁰F) – (+250⁰F) Max. Pressure: 315 bar (4560 psi) Max. Angular Movement: ±7.5⁰ Max. Speed: Very slow speed, articulated motion only STYLE 20 A SERIES INSTALLATION & OPERATION & ASSEMBLY INSTRUCTIONS – ENGLISH A SERIES MAINTENANCE INSTRUCTIONS – ENGLISH A SERIES INSTALLATION INSTRUCTIONS – ENGLISH

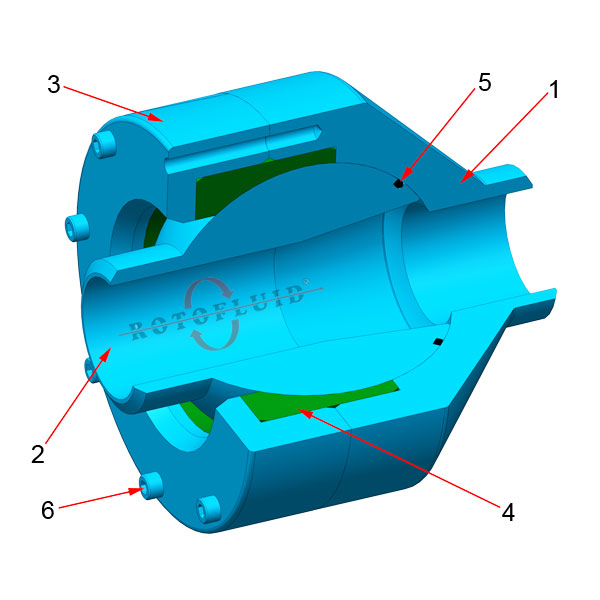

NO
PART NAME
1
A SERIES HOUSING
2
A SERIES SHAFT
3
A SERIES HOUSING FLANGE
4
SEAL RING
5
SEAL O-RING
6
BOLTS
