1000 Series Flanged

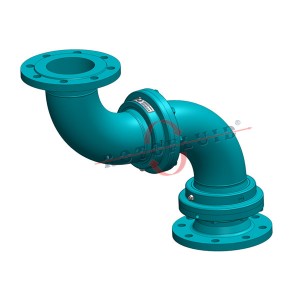

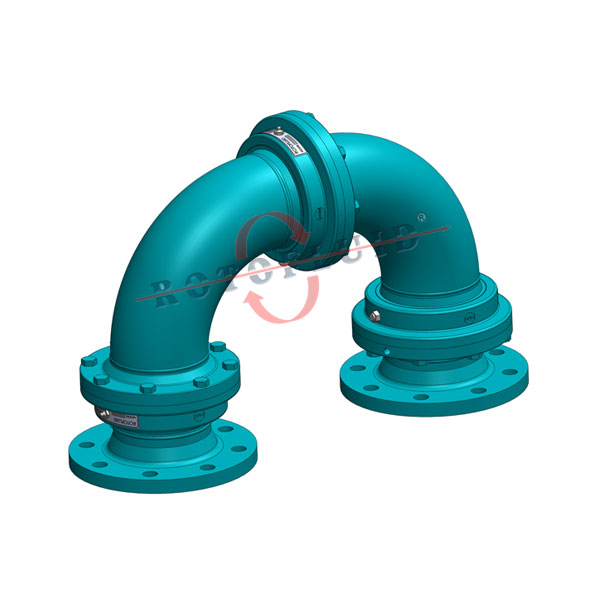

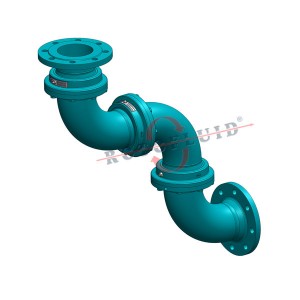

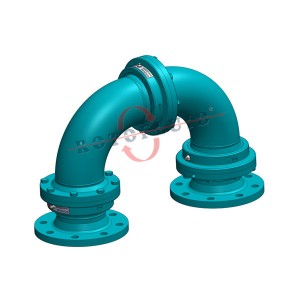

1000 Series Swivel Joints
Medium: Water, Steam, Hot Oil, Chemicals, All kinds of liquids, Gases
Size: 1/2″ (DN15) – 24″ (DN600)
– Single Ball Race
– Deep hardened ball race
– Manufactured in 8 different styles
– Different seal alternatives for different applications
– Different connection style alternatives upon customer request
Warning: sizeof(): Parameter must be an array or an object that implements Countable in /home/rotoflui/public_html/wp-content/themes/betheme/woocommerce/single-product/meta.php on line 26

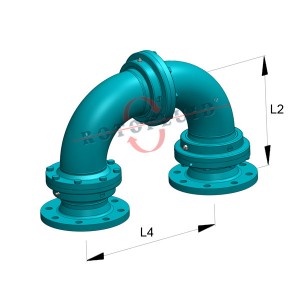

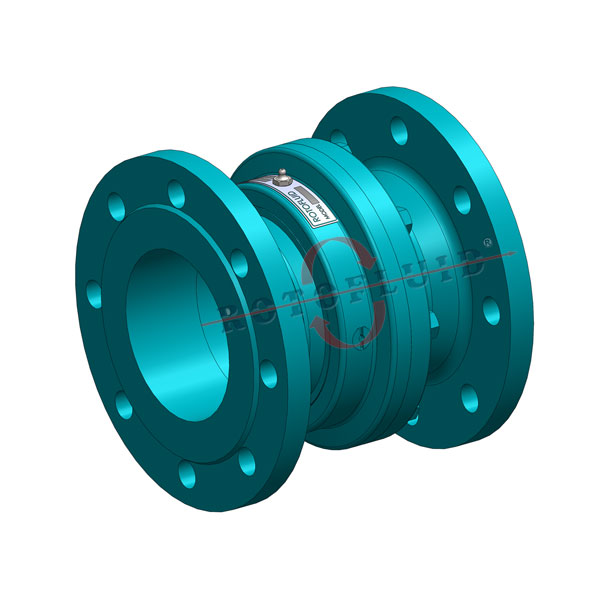

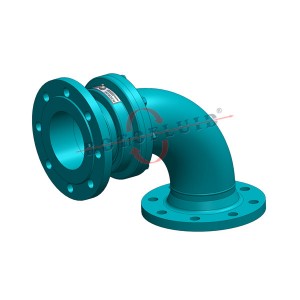

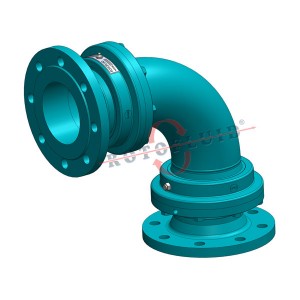

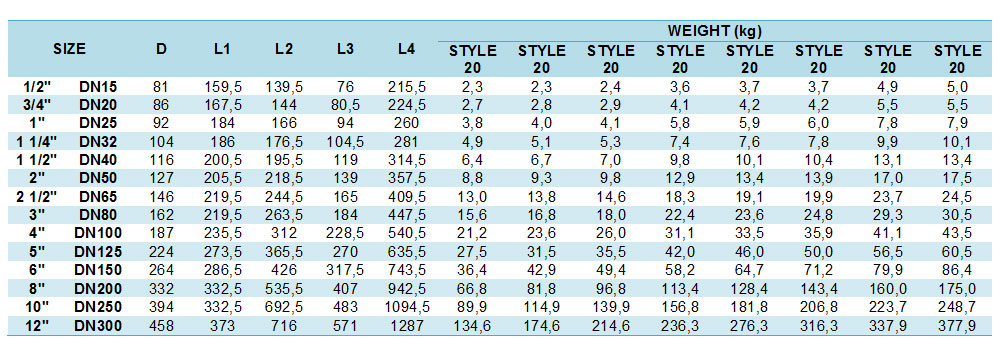

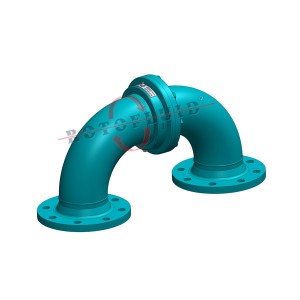

Size: 1/2″ (DN15) – 24″ (DN600) Material: St52-3, 42CrMo4, AISI304,AISI316,AISI316TI Other materials upon request Max. Temperature: (-50°C) – (250°C) (-58°F) – (+437°F) Max. Pressure: Steel Models 100 bar (1450 psi) Stainless Steel Models: 40 bar (580 psi) STYLE 20 STYLE 50 STYLE 80 STYLE 30 STYLE 60 STYLE 10 STYLE 40 STYLE 70 STYLE 20 STYLE 50 STYLE 80 STYLE 30 STYLE 60 STYLE 10 STYLE 30 STYLE 70 1000 SERIES PN16 FLANGED SWIVEL JOINTS 1000 SERIES ANSI150 FLANGED SWIVEL JOINTS 1000 SERIES (O-RING SEAL) INSTALLATION & OPERATION & ASSEMBLY INSTRUCTIONS – ENGLISH 1000 SERIES (Y SEAL) INSTALLATION & OPERATION & ASSEMBLY INSTRUCTIONS – ENGLISH 1000 SERIES (O-RING SEAL) MAINTENANCE INSTRUCTIONS – ENGLISH 1000 SERIES (Y SEAL) MAINTENANCE INSTRUCTIONS – ENGLISH 1000 SERIES INSTALLATION INSTRUCTIONS – ENGLISH

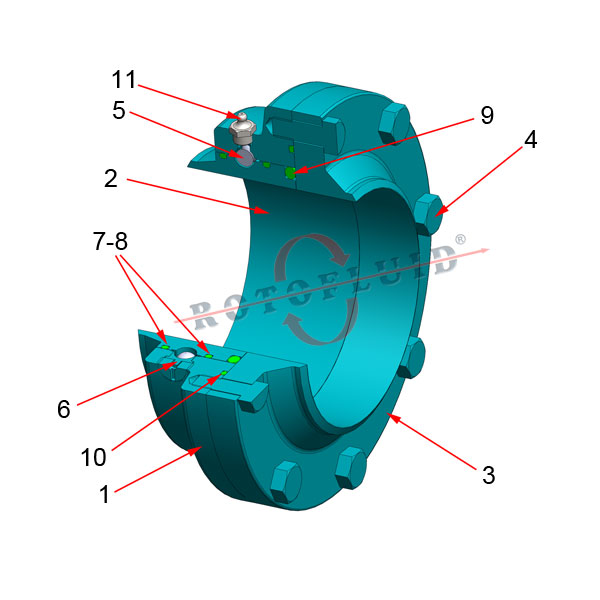

NO
PART NAME
1
1000 SERIES HOUSING
2
1000 SERIES SHAFT
3
HOUSING FLANGE
4
BOLTS
5
BALLS
6
BALL PLUG SET
NO
PART NAME
7
O-RING
8
O-RING
9
SEAL RING
10
DRAIN SEAL
11
GREASE RING
12
GREASE RELIEF VALVE
