Spring Energized Siphon Elbow
20 October 2015

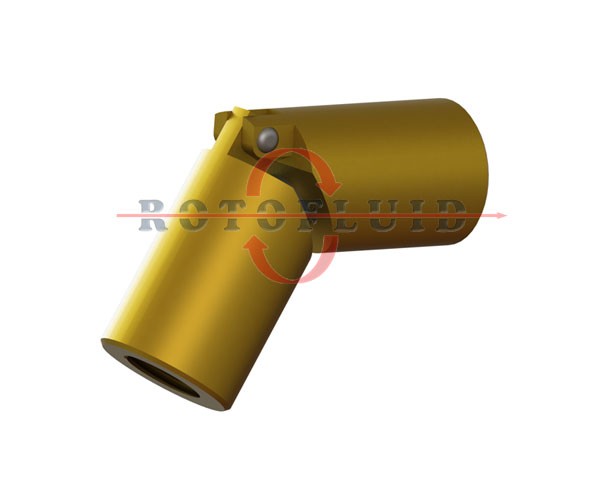

Siphon Elbow
With the advantage of their simple design and ease of installation, siphon elbows are widely used in most of the applications. They are manufactured from 1/4″ to 1″ in standard and higher sizes are manufactured upon customer request.
Warning: sizeof(): Parameter must be an array or an object that implements Countable in /home/rotoflui/public_html/wp-content/themes/betheme/woocommerce/single-product/meta.php on line 26
– For slow moving applications where condensate is in puddle stage – Assembled to the siphon pipe outside of the cylinder and do not need calibration – Easily installed – Leak tight sealing – Designed to be used specially with ROTOFLUID rotary joints Size: 1/4″ (DN08) – 1″ (DN25) Material: Speed: Max. 50 m/dak (160fpm)

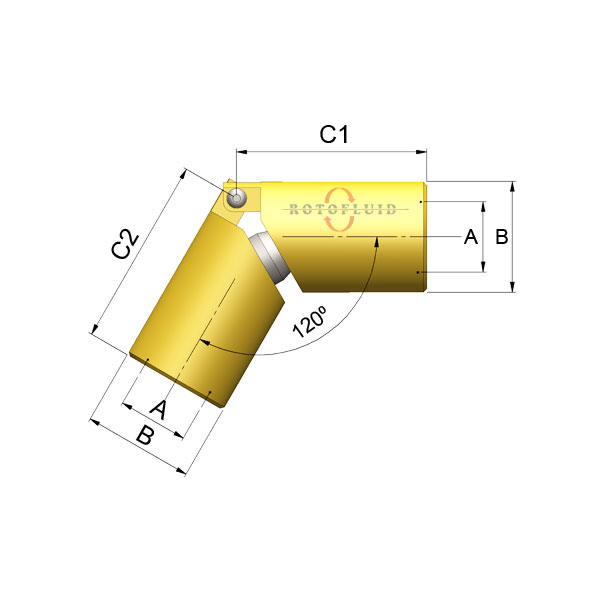

A
STOCK CODE
B
C1
C2
1/4″ NPT
0032-120-100
22
44.5
44.5
1/4″ BSPP
0032-120-300
3/8″ NPT
0033-120-100
24
44.5
44.5
3/8″ BSPP
0033-120-300
1/2″ NPT
0034-120-100
33
56.5
56.5
1/2″ BSPP
0034-120-300
3/4″ NPT
0035-120-100
39
60
60
3/4″ BSPP
0035-120-300
1″ NPT
0036-120-100
49
70
70
1″ BSPP
0036-120-300
