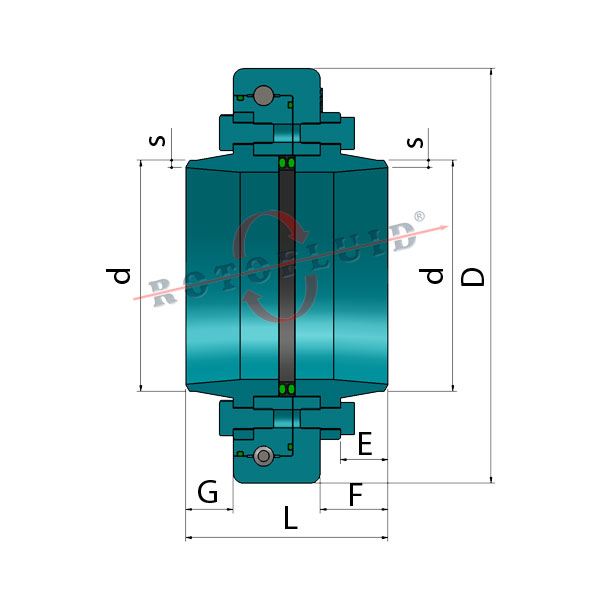

5000 Series Swivel Joint
Medium: Water, Steam, Hot Oil, All Kinds of Liquids, Gases
Size: 2″ (DN50) – 8″ (DN200)
– Single Ball Race
– Deep hardened ball race

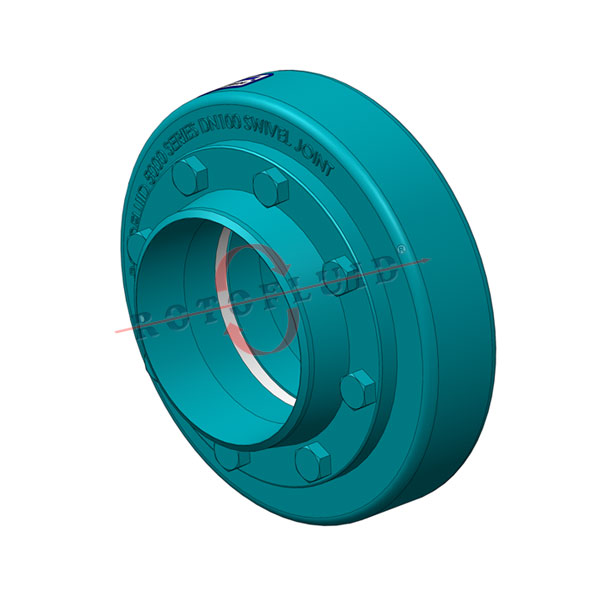

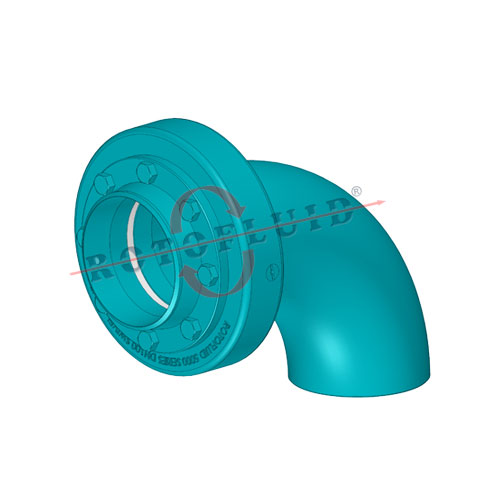

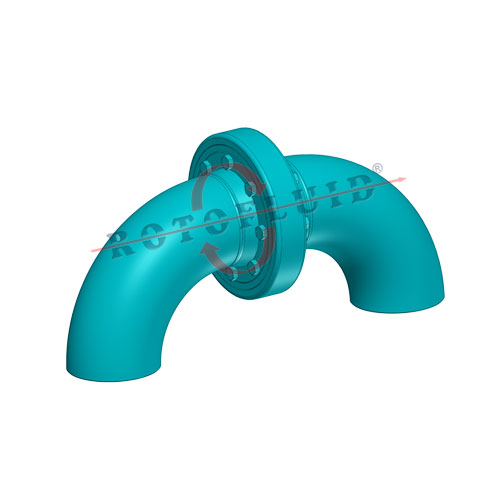

– Manufactured in 8 different styles
– Different seal alternatives for different applications
– Different connection style alternatives upon customer request

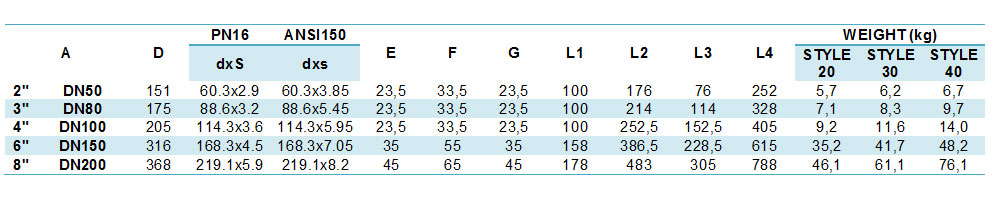

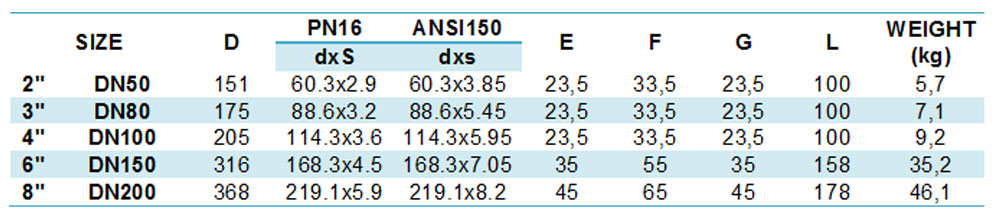

Single Ball Race Size: 2″ (DN50) – 8″ (DN200) Materials: ST52-3, 42CrMo4, AISI304,316,316TI Other materials upon request Max. Temperature: (-50⁰C) – (250⁰C) / (-58⁰F) – (437⁰F) Max. Pressure: 40 bar (580 psi) Connection Style: Weld End, Flanged(DIN, ANSI, etc.)

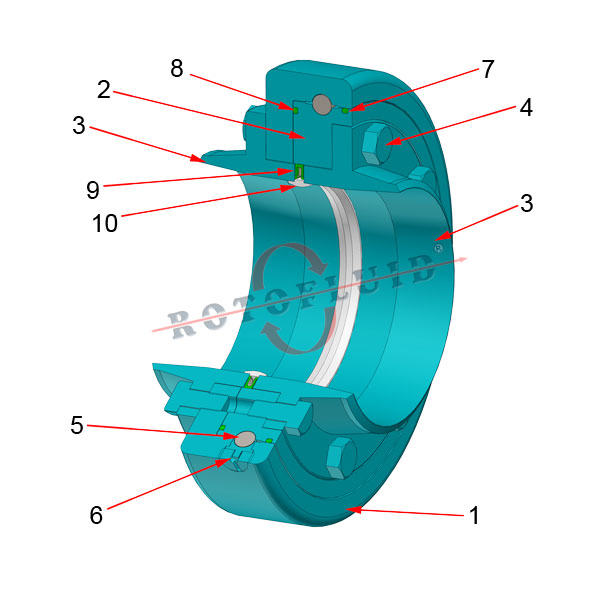

NO
PART NAME
1
5000 SERIES HOUSING
2
5000 SERIES SHAFT
3
5000 SERIES HOUSING FLANGE
4
BOLTS
5
BALLS
NO
PART NAME
6
BALL PLUG SET
7
O-RING
8
O-RING
9
SEAL RING
10
INTERNAL SCRAPER
