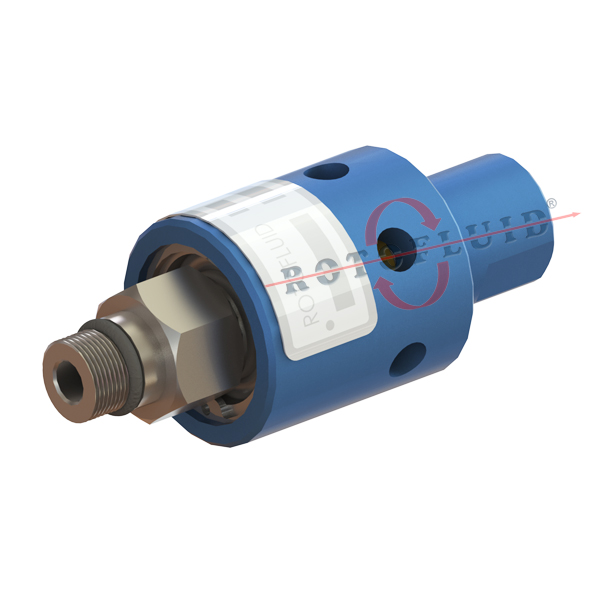

800 Series Rotary Joints
Medium: Water, Cutting Fluids, Hydraulic
Size: 1/4″ (DN08) – 3/8″ (DN10)
– Single flow
– Self supported rotary joint
– Aluminium housing
– Stainless steel internal parts

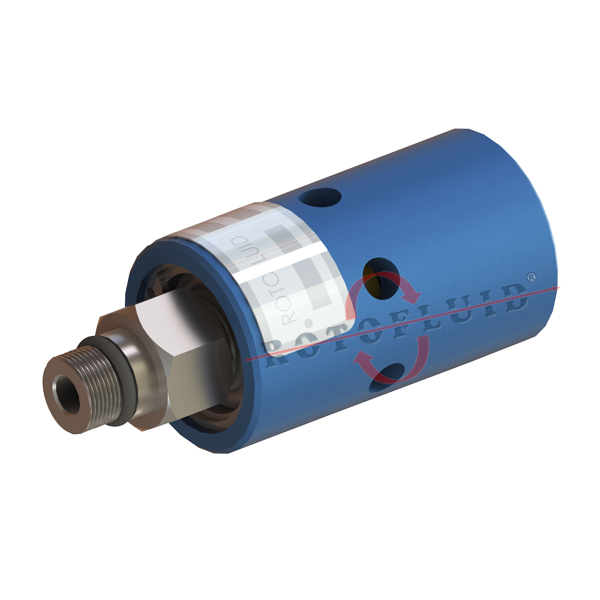

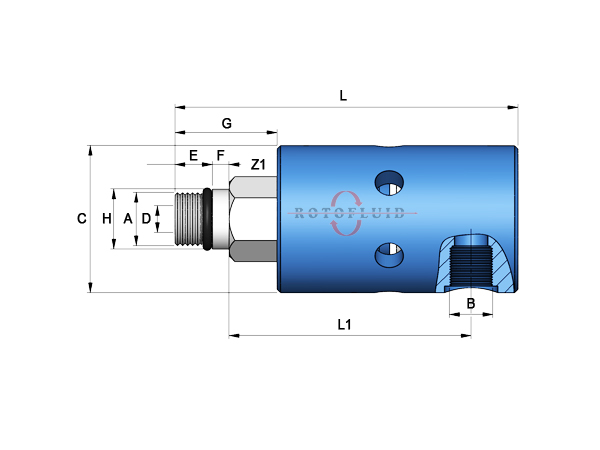

– Axial / Radial-90º inlet connection
– Vent holes on housing
– Balanced silicon carbide mechanical seals
– Tungsten carbide seals upon request
– Easy and quick replacement of seals
– Reliable usage with porr water quality
-Full flow
Max. Pressure: 70 bar (1,000 psi) Max. Temperature: 120ºC (250ºF) Max. Speed: 10,000 RPM (10,000 minˉ¹) Do not work with max. pressure at max. speed.
NO

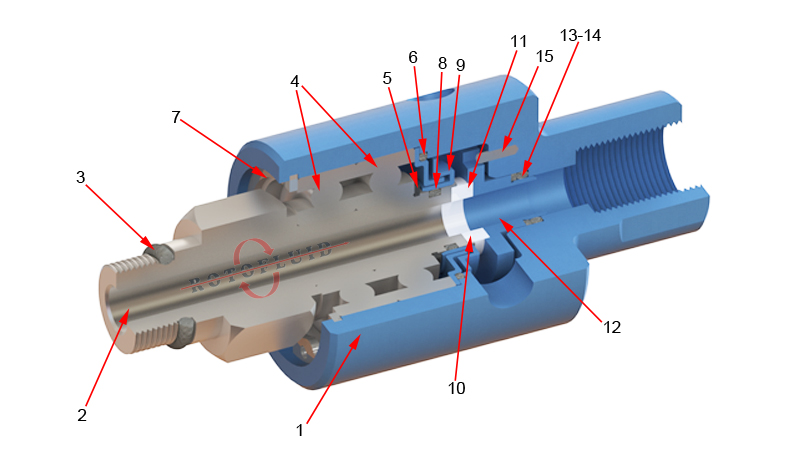

PART NAME
1
800 SERIES HOUSING
2
800 SERIES SHAFT
3
SHAFT FRONT O-RING
4
BALL BEARING
5
EXT. RETAINING RING
6
HOUSING O-RING
7
INT. RETAINING RING
8
SLINGER O-RING
NO
PART NAME
9
SLINGER SET
10
SEAL RING
11
FLOATING SEAL RING
12
FLOATING SEAL HOLDER
13
FLOATING SEAL HOLDER O-RING
14
BACK-UP
15
PIM
16
SPRING
