900R Series

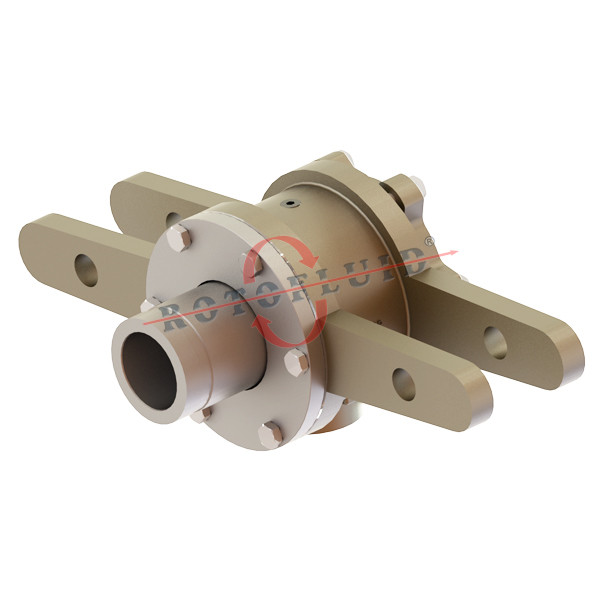

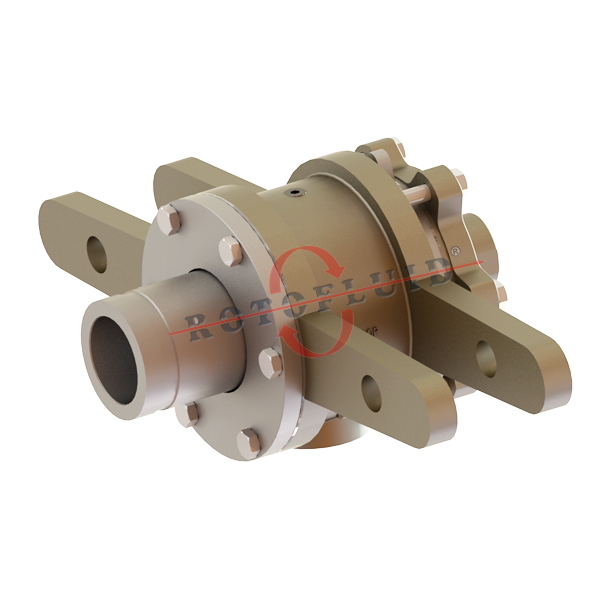

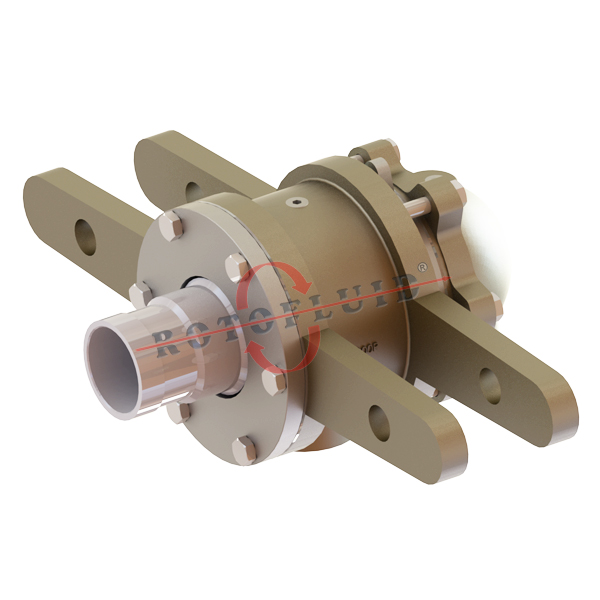

900R Series Rotary Joint
Medium: Steam, Hot Oil, Water
Size: 1/2″ (DN15) – 5″ (DN125)
– Rod supported rotary joint
– Single and dual flow models
– Cast iron housing
– Stainless steel internal parts
– Carbon graphite seal ring
– Threaded and quick release shaft alternatives
– Seal wear indicator on shaft
– Consult factory for special applications
Warning: sizeof(): Parameter must be an array or an object that implements Countable in /home/rotoflui/public_html/wp-content/themes/betheme/woocommerce/single-product/meta.php on line 26
Max. Steam Pressure: 17 bar (250 psi) Max. Steam Temperature: 200ºC (400ºF) Max. Hot Oil Pressure: 10 bar (150psi) Max. Hot Oil Temperature: 315ºC (600ºF) Max. Speed: 200 RPM (200 minˉ¹) Do not work with max. pressure at max. speed.

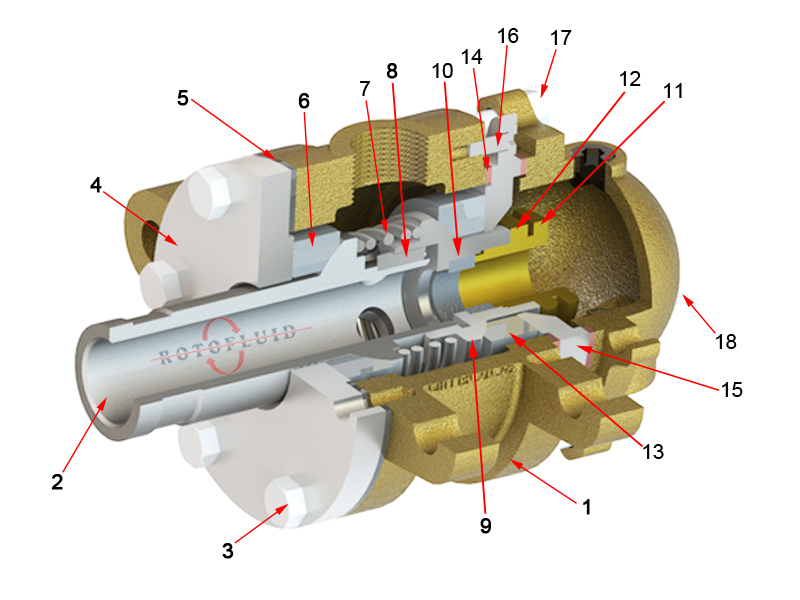

NO
PART NAME
1
HOUSING
2
SHAFT
3
BOLTS
4
FRONT HOUSING FLANGE
5
FRONT HOUSING FLANGE GASKET
6
SEAL RING
7
SPRING
8
WEDGES
9
THRUST WASHER
NO
PART NAME
10
SIPHON PACKING
11
PACKING GLAND
12
LOCK NUT
13
SEAL RING
14
HOUSING GASKET
15
ASSEMBLY FLANGE
16
SCREWS
17
BOLTS
18
END CAP
