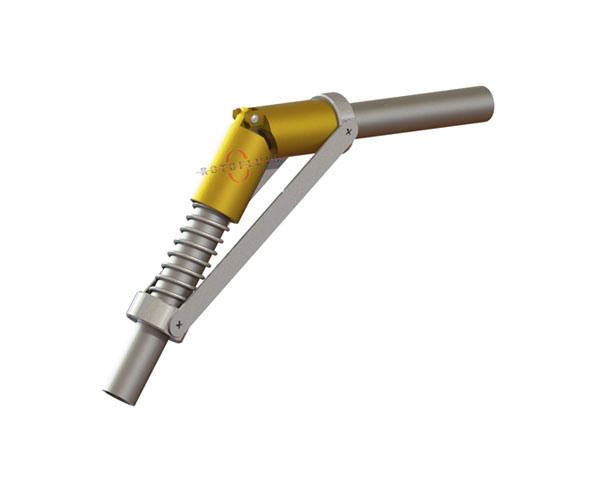

Spring Energized Siphon Elbow
Spring energized siphon elbows are designed to be used at higher speeds than standard siphon elbows. Siphon elbow is supported with 2 brackets and reinforcing spring with vertical pipe. Brackets and spring system reduces the force applied by medium to the pim of the elbow. Spring also forces elbow to be closed while in operation which results better internal flow. Spring energized siphon elbows are manufactured from 1/2″(DN15) to 1″(DN25) in standard and higher sizes are manufactured upon customer request.
Warning: sizeof(): Parameter must be an array or an object that implements Countable in /home/rotoflui/public_html/wp-content/themes/betheme/woocommerce/single-product/meta.php on line 26
– For slow moving applications where condensate is in puddle stage – Assembled to the siphon pipe outside of the cylinder and do not need calibration – Easily installed – Leak tight sealing – Designed to be used specially with ROTOFLUID rotary joints Size: 1/2″ (DN15) – 1″ (DN25) Material: Speed: Max. 50 m/dak (160 fpm)

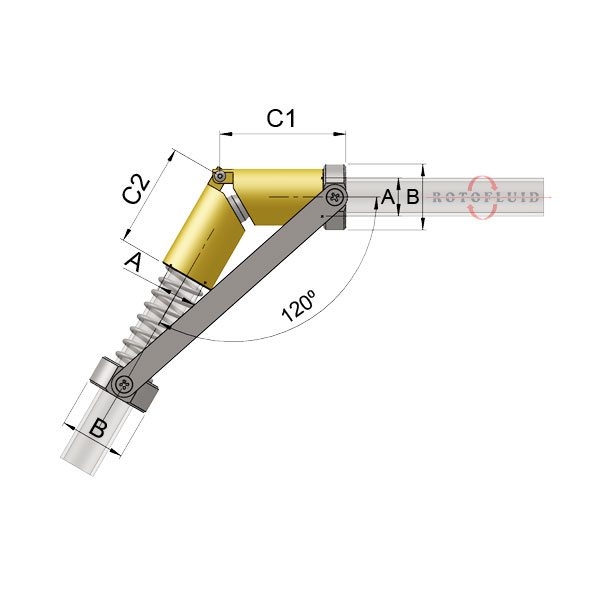

A
STOCK CODE
B
C1
C2
1/2″ NPT
0034-210-100
36
68.5
56.5
1/2″ BSPP
0034-210-300
3/4″ NPT
0035-210-100
42
72
65.5
3/4″ BSPP
0035-210-300
1″ NPT
0036-210-100
55
85
70
1″ BSPP
0036-210-300
