800S Series

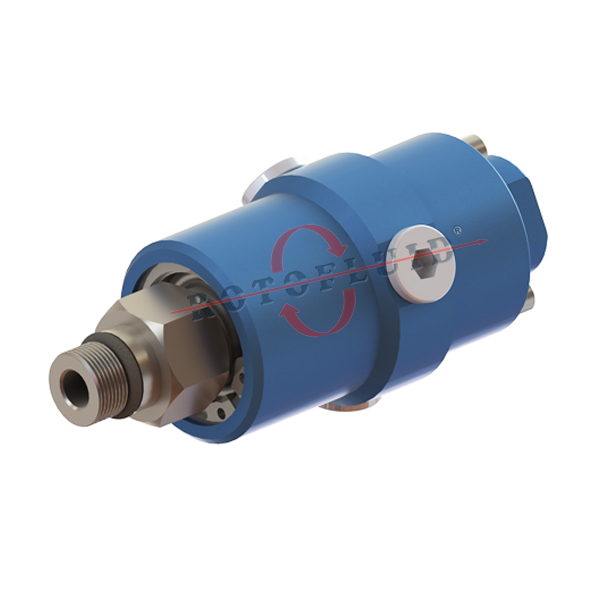

800S Series Rotary Joints
Medium: Water, Cutting Fluids, Hydraulic
Size: 1/4″ (DN08) – 3/8″ (DN10)
– Single flow
– Self supported rotary joint
– Aluminium housing
– Stainless steel internal parts

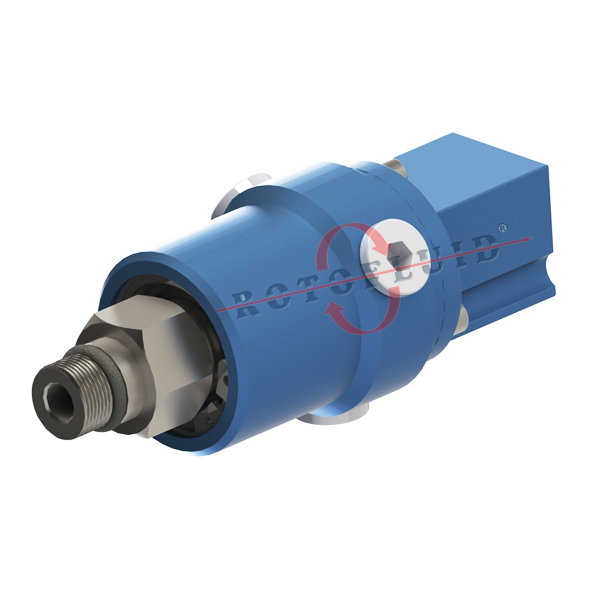

– Axial / Radial-90º inlet connection
– Vent holes on housing
– Balanced silicon carbide mechanical seals
– Tungsten carbide seals upon request
– Easy and quick replacement of seals
– Reliable usage with porr water quality
– Full flow
Warning: sizeof(): Parameter must be an array or an object that implements Countable in /home/rotoflui/public_html/wp-content/themes/betheme/woocommerce/single-product/meta.php on line 26
Max. Pressure: 70 bar (1,000 psi) Max. Temperature: 120ºC (250ºF) Max. Speed: 15,000 RPM (15,000 minˉ¹) Do not work with max. pressure at max. speed.

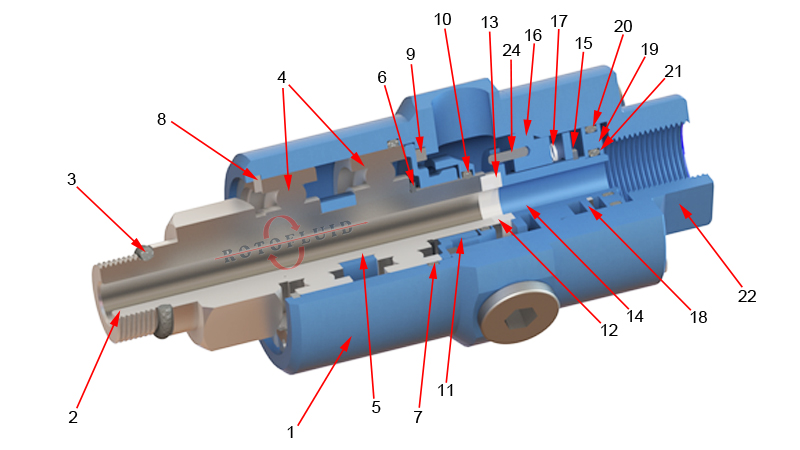

NO
PART NAME
1
800S SERIES HOUSING
2
800S SERIES SHAFT
3
SHAFT FRONT O-RING
4
BALL BEARING
5
WASHER
6
EXT. RETAINING RING
7
HOUSING O-RING
8
INT. RETAINING RING
9
WAVE SPRING
10
SLINGER O-RING
11
SLINGER SET
12
SEAL RING
NO
PART NAME
13
FLOATING SEAL RING
14
FLOATING SEAL HOLDER
15
EXT. RETAINING RING
16
HOUSING FLANGE
17
SPRING
18
SUPPORT WASHER
19
SUPPORT
20
O-RING
21
O-RING
22
END CAP
23
BOLTS
24
PIM
