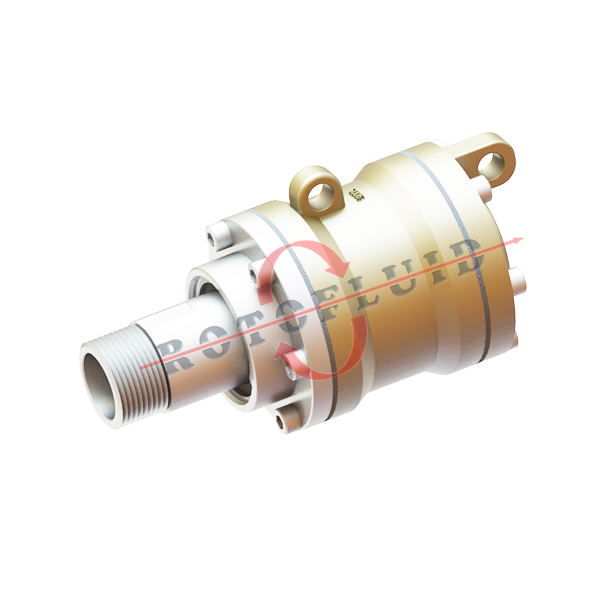

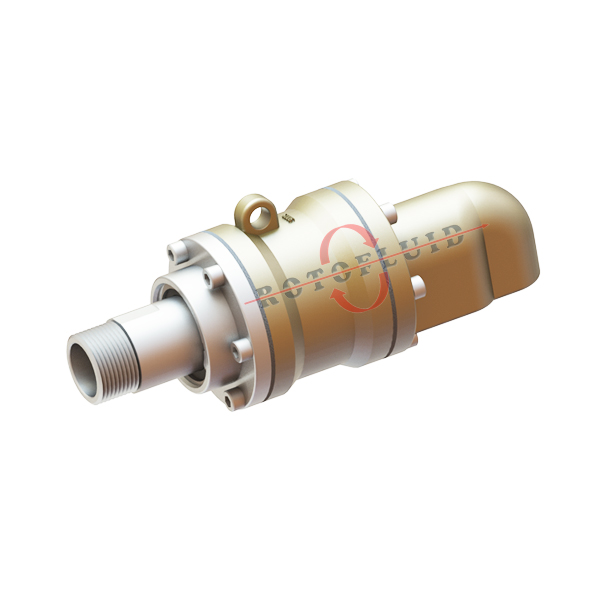

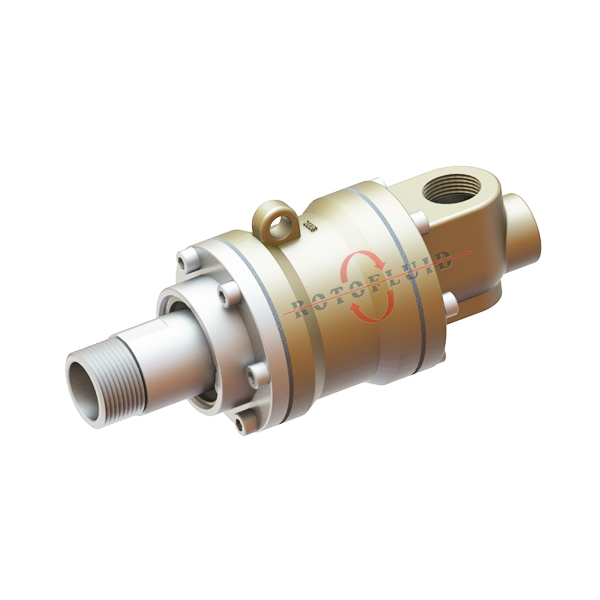

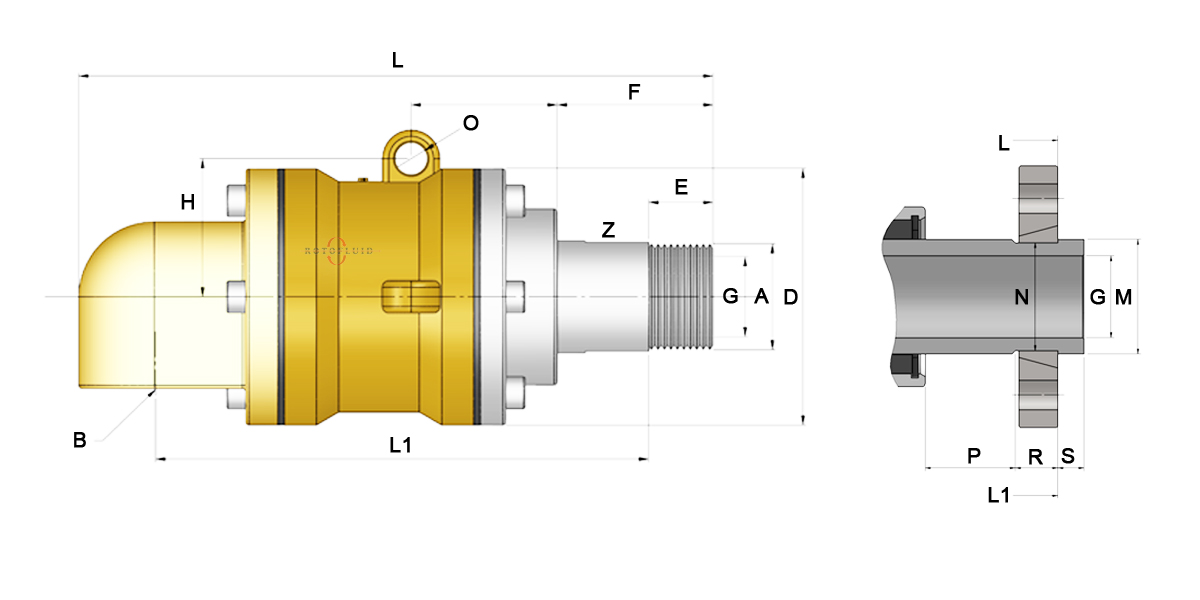

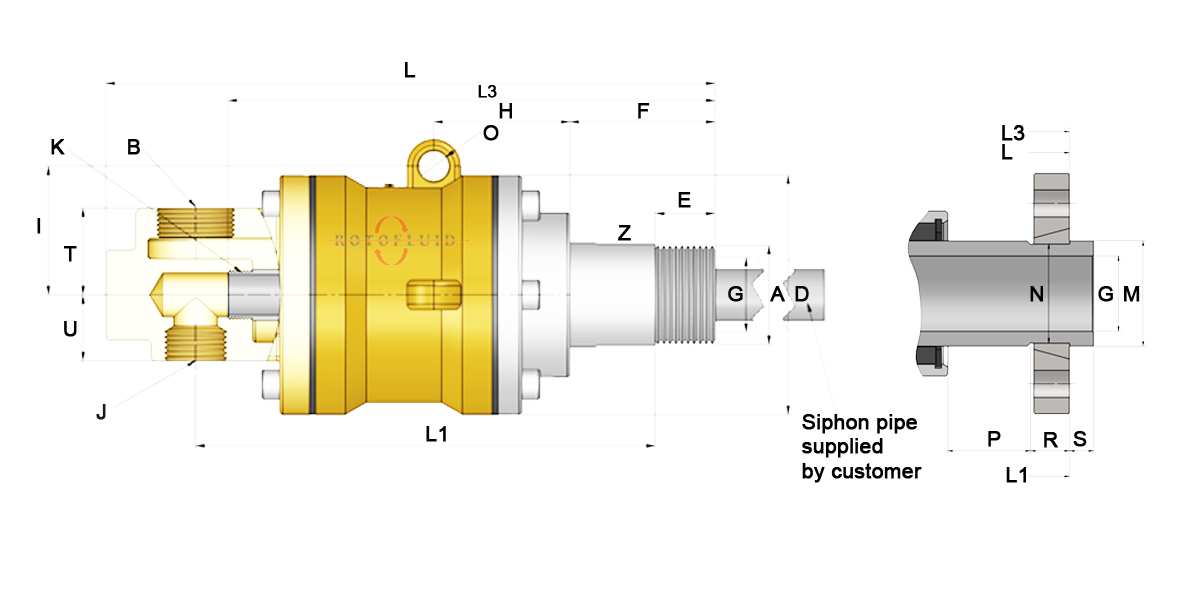

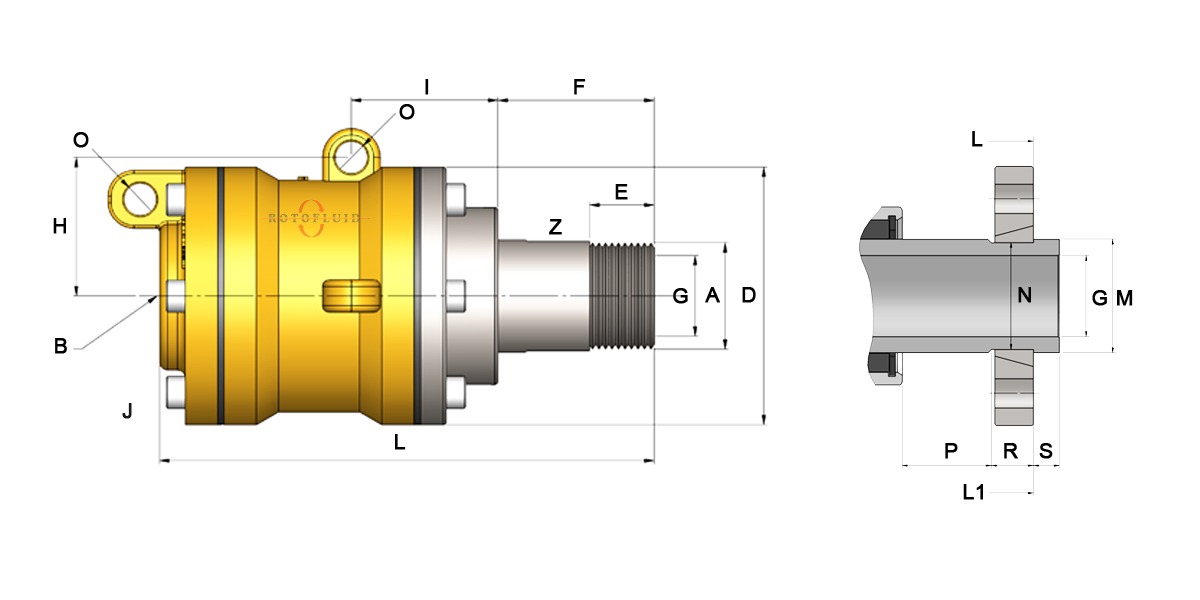

900S Series Rotary Joints
Medium: Steam, Hot Oil, Water
Size: 1/2″ (DN15) – 5″ (DN125)
– Self supported rotary joint
– Single and dual flow models
– Cast iron housing
– Stainless steel internal parts
– Carbon graphite seal ring
– Carbon graphite bearing
– Torque lugs on housing
– Threaded and quick release shaft alternatives
– Seal wear indicator on shaft
– Consult factory for special applications
Warning: sizeof(): Parameter must be an array or an object that implements Countable in /home/rotoflui/public_html/wp-content/themes/betheme/woocommerce/single-product/meta.php on line 26
Max. Steam Pressure: 17 bar (250 psi) Max. Steam Temperature: 200ºC (400ºF) Max. Hot Oil Pressure: 10 bar (150psi) Max. Hot Oil Temperature: 315ºC (600ºF) Max. Speed: 600 RPM (600 minˉ¹) Do not work with max. pressure at max. speed.

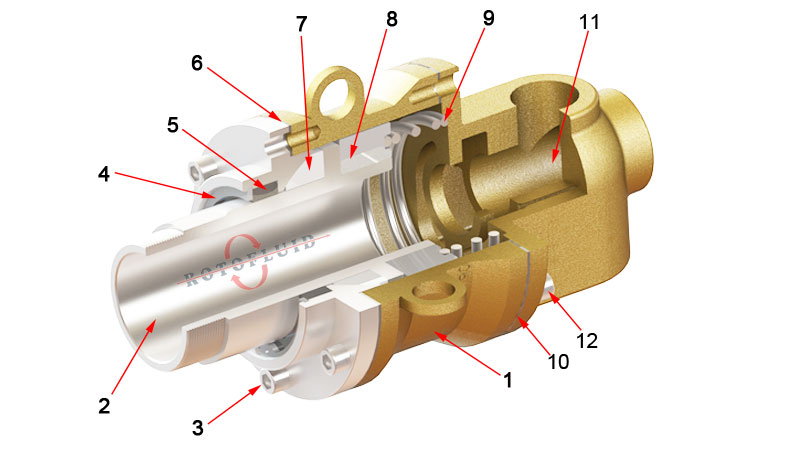

NO
PART NAME
1
900S HOUSING
2
900S SHAFT
3
BOLTS
4
INT. RETAINING RING
5
FRONT GRAPHITE BEARING
6
GASKET
NO
PART NAME
7
SEAL RING
8
REAR GRAPHITE BEARING
9
SPRING
10
GASKET
11
END CAP
12
BOLTS
