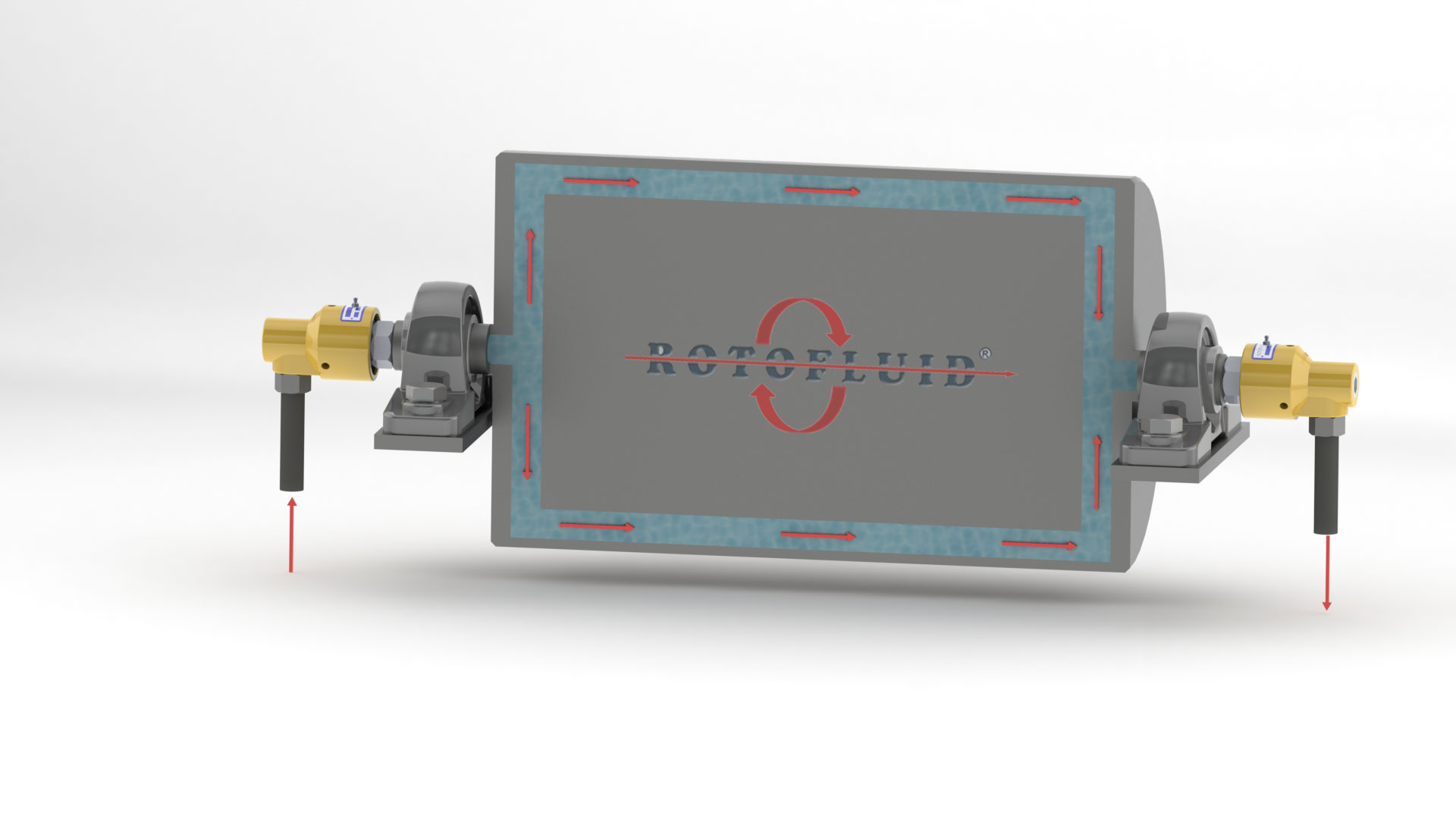

TYPE 1: SINGLE FLOW (P TYPE)
Single flow joints are used when supply and return lines are connected to opposite sides of the cylinder.
Single flow joints are used when supply and return lines are connected to opposite sides of the cylinder.

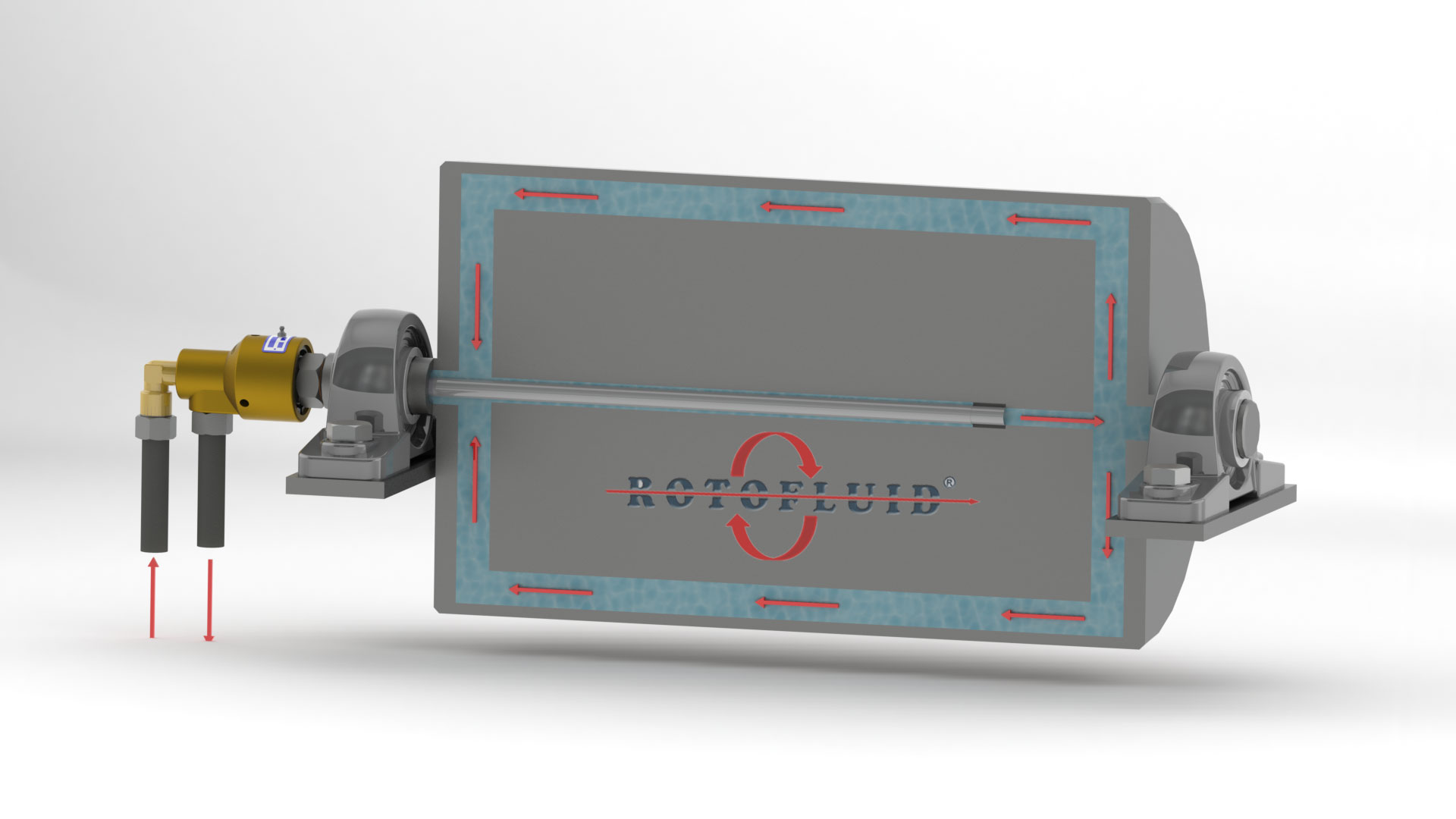

TYPE 2: DUAL FLOW (S TYPE)
Dual flow joints are used when supply and return lines are connected to one side of the cylinder. Internal pipe is stationary.
Dual flow joints are used when supply and return lines are connected to one side of the cylinder. Internal pipe is stationary.

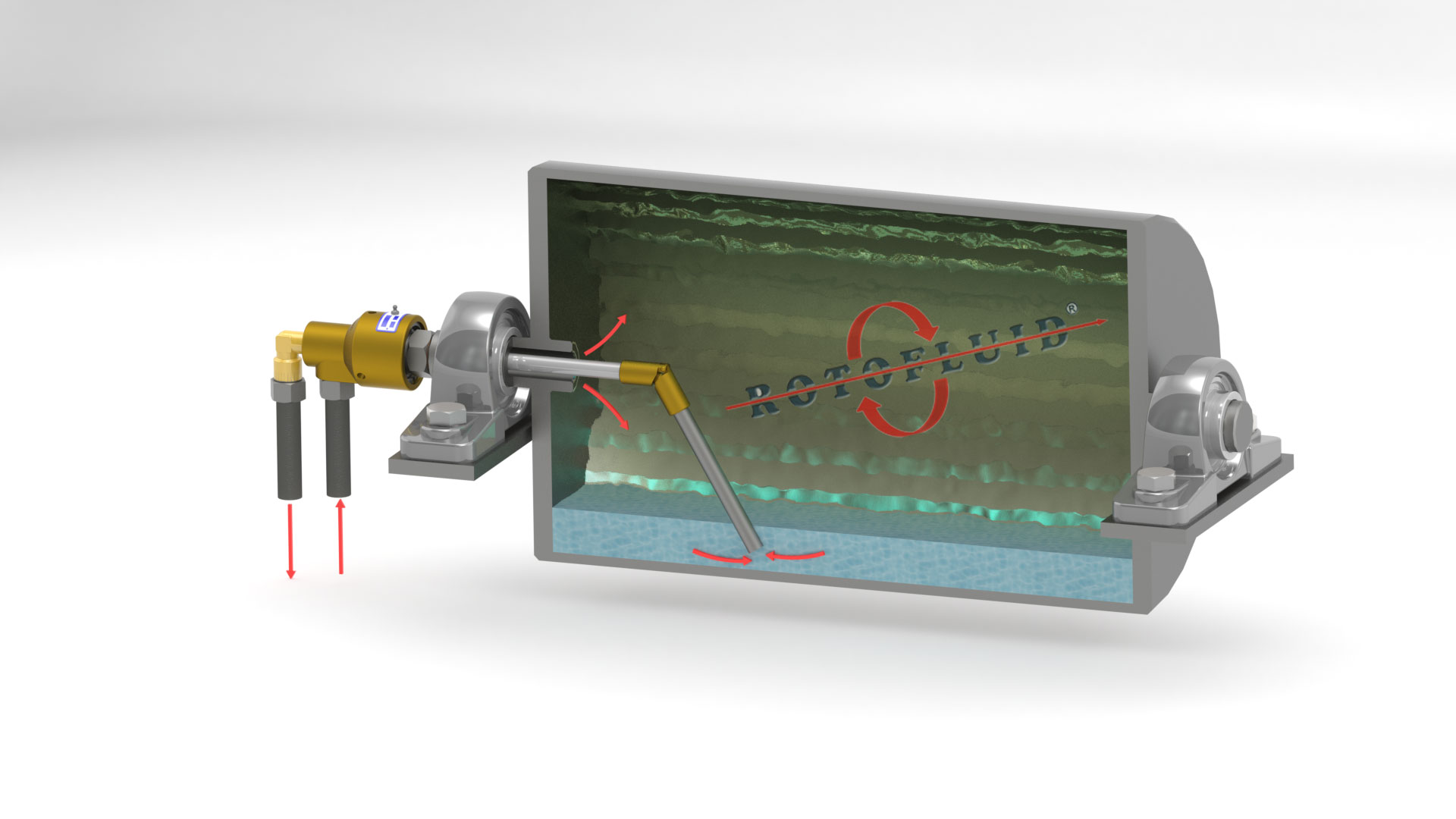

TYPE 3: DUAL FLOW (RSP TYPE)
Dual flow joints are used when supply and return lines are connected to one side of the cylinder. Internal pipe rotates with the rotating cylinder.
Dual flow joints are used when supply and return lines are connected to one side of the cylinder. Internal pipe rotates with the rotating cylinder.
