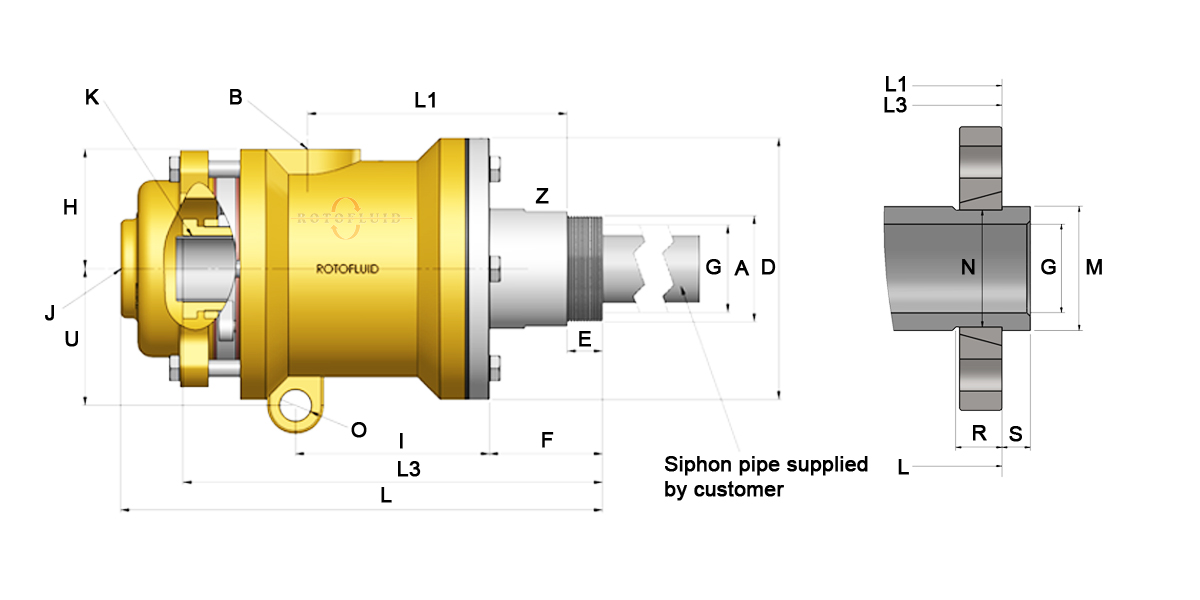

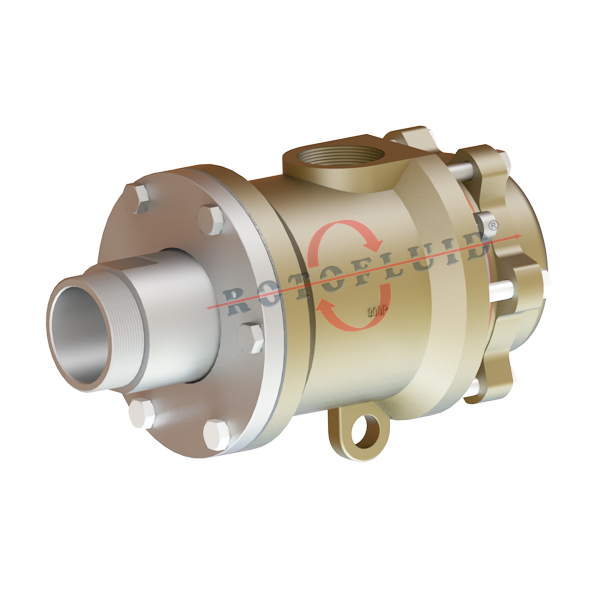

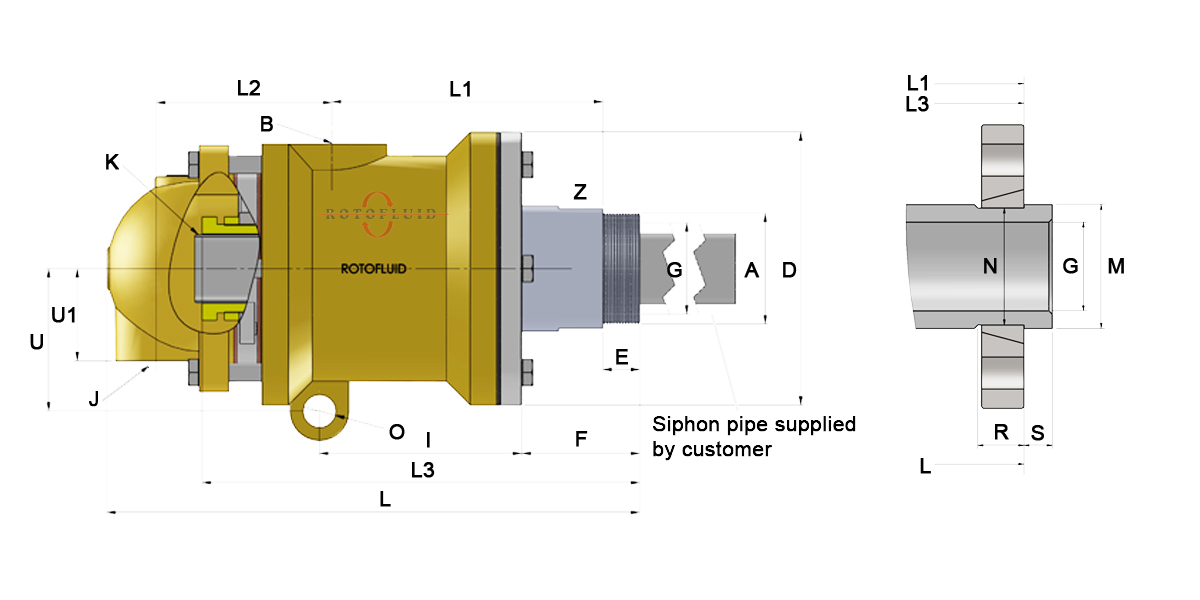

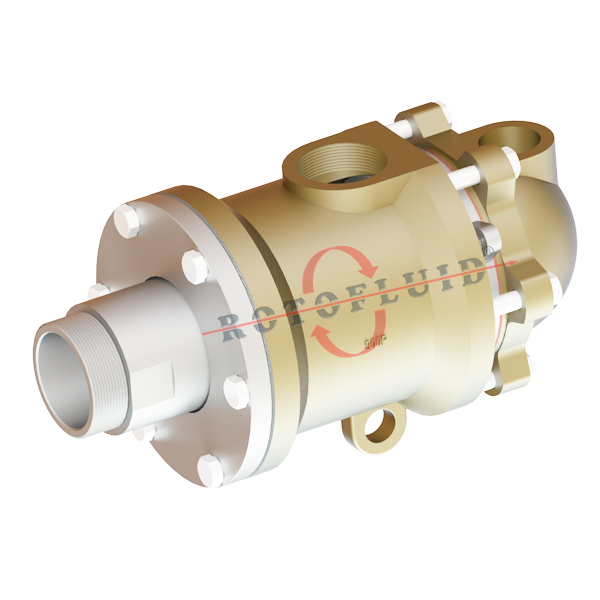

900P Series Rotary Joint
Medium: Steam, Hot Oil, Water
Size: 1/2″ (DN15) – 5″ (DN125)
– Self supported rotary joint
– Dual flow – rsp type models
– Cast iron housing
– Stainless steel internal parts
– Carbon graphite seal ring
– Carbon graphite bearing
– Torque lugs on housing
– Threaded and quick release shaft alternatives
– Seal wear indicator on shaft
– Consult factory for special applications

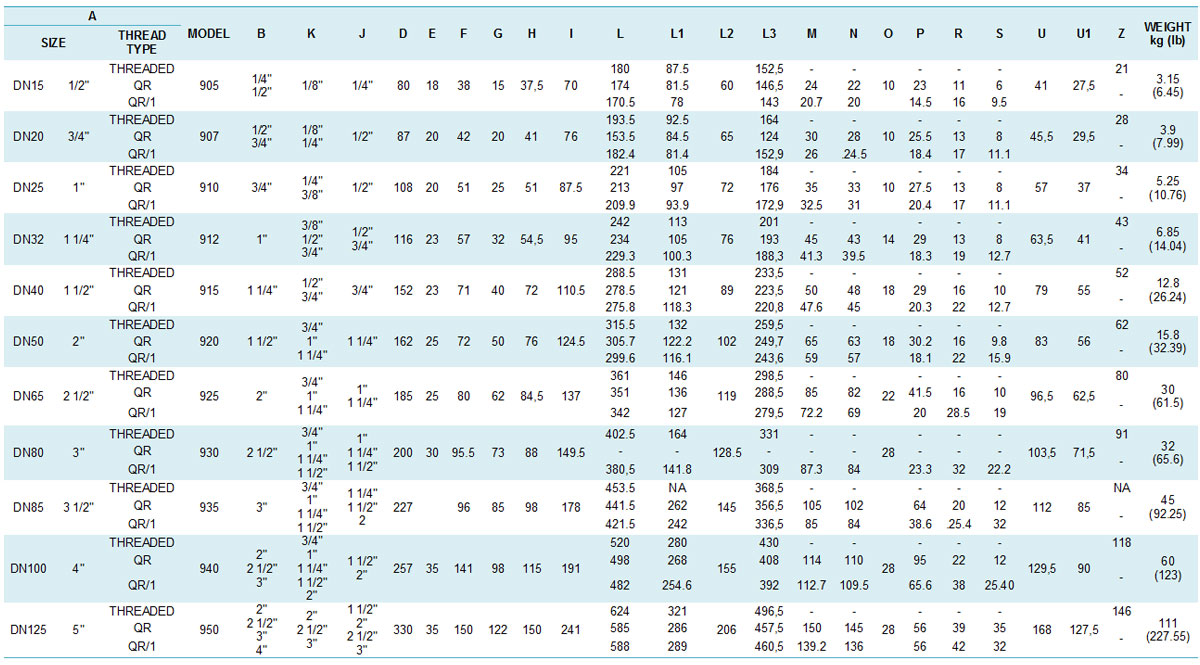

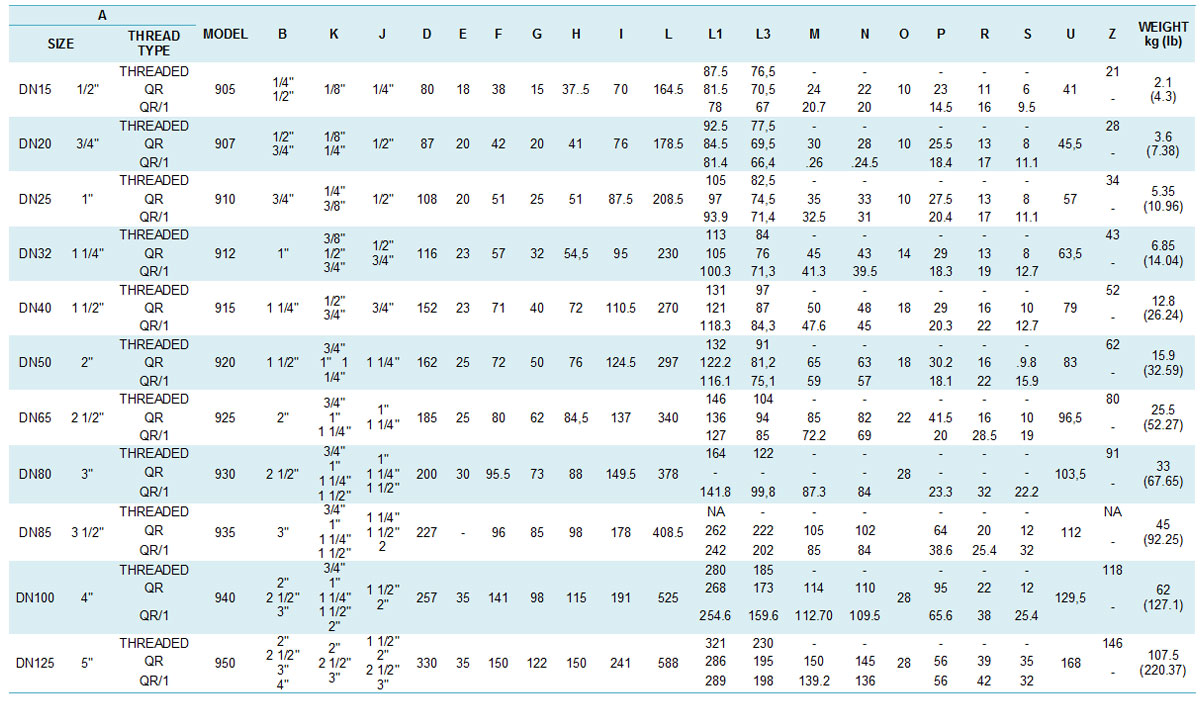

Max. Steam Pressure: 17 bar (250 psi) Max. Steam Temperature: 200ºC (400ºF) Max. Hot Oil Pressure: 10 bar (150psi) Max. Hot Oil Temperature: 315ºC (600ºF) Max. Speed: 100 RPM (100 minˉ¹) Do not work with max. pressure at max. speed.
NO
PART NAME
1
HOUSING
2
SHAFT
3
BOLTS
4
FRONT HOUSING FLANGE
5
FRONT HOUSING GASKET
6
SEAL RING
7
SPRING
8
WEDGES
9
THRUST WASHER
10
GRAPHITE BEARING
NO
PART NAME
11
SIPHON PACKING
12
PACKING GLAND
13
LOCK NUT
14
SEAL RING
15
HOUSING GASKET
16
ASSEMBLY FLANGE
17
SCREW
18
BOLTS
19
END CAP
