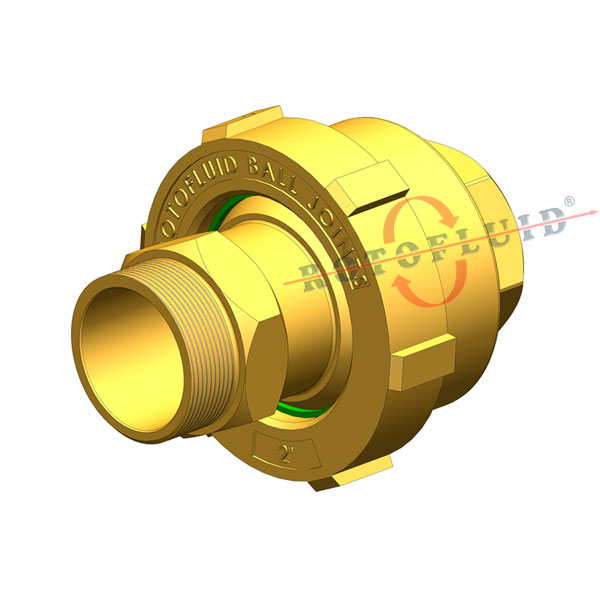

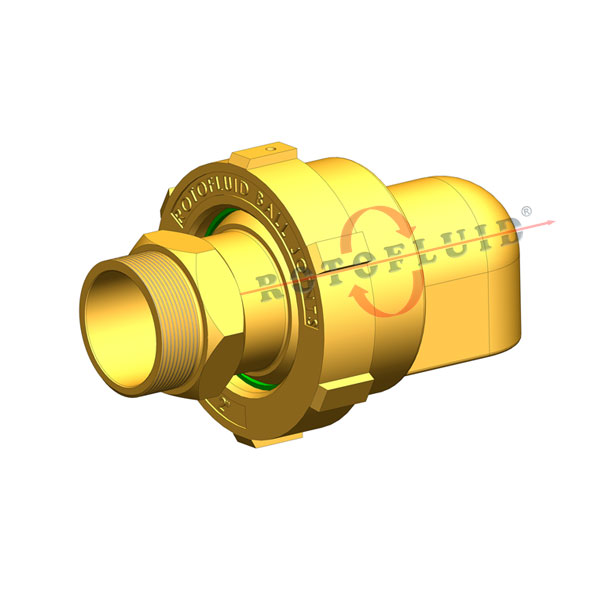

B Series Ball Joints
Medium: Water, Steam, Hot Oil, Hydraulic, Pneumatic
Size: 3/8″ (DN10) – 2″ (DN50)

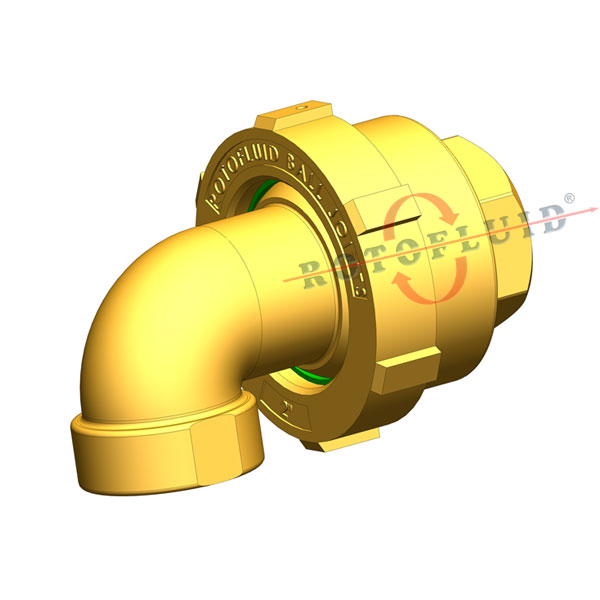

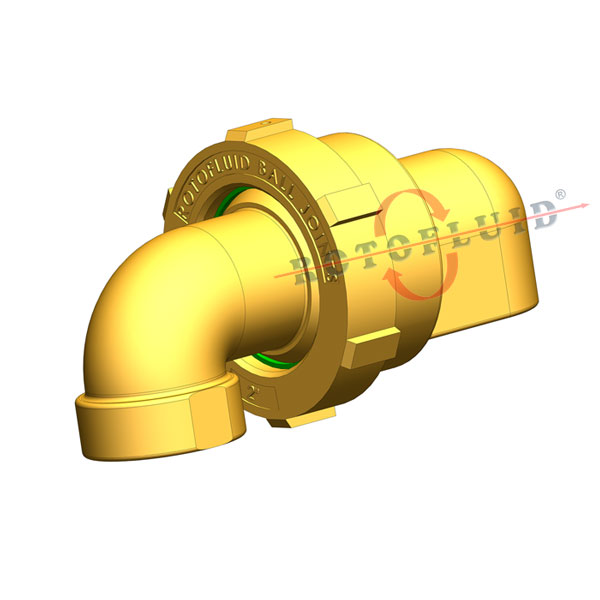

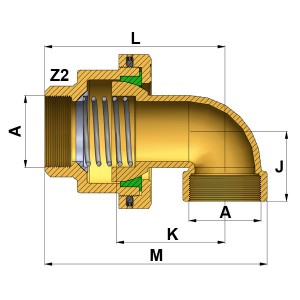

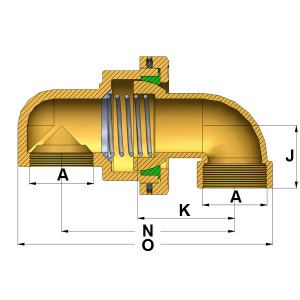

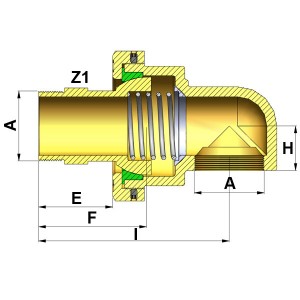

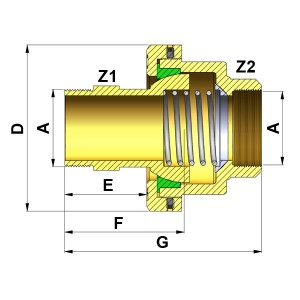

– Available in 4 styles
– No lubrication needed
– Steel, brass, stainless steel alternatives
– Other materials upon request
– Very slow speeds, articulated motion only

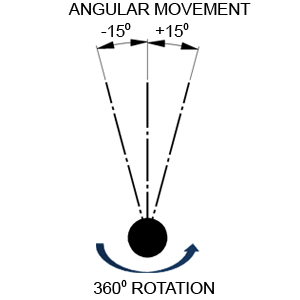

– ±15⁰ angular movement

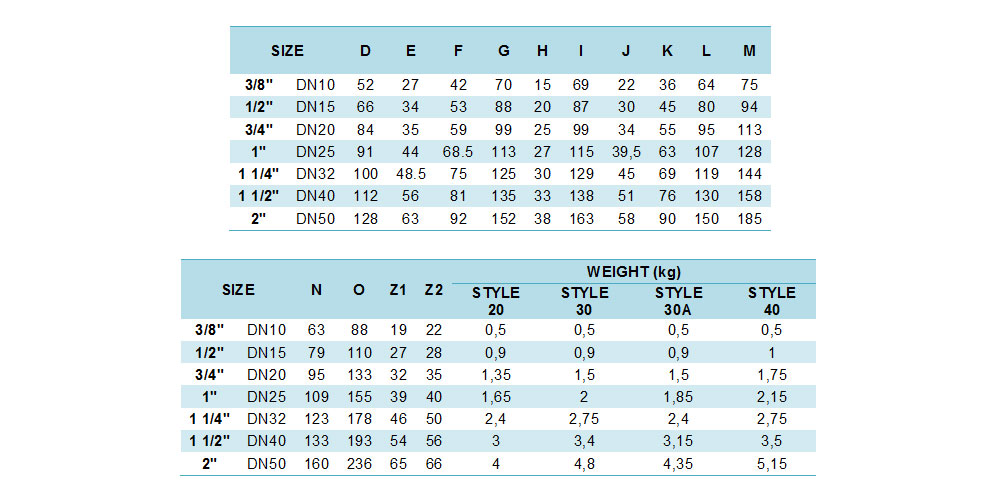

Size: 3/8” (DN10) – 2” (DN50) Materials: Brass, 42CrMo4, AISI304, 316, 316TI Max. Temperature: 260⁰C (500⁰F) Max. Pressure: 24 bar (350 psi) Max. Angular Movement: ±15⁰ Max. Speed: Articulated motion only, very slow speeds
B SERIES INSTALLATION & OPERATION & ASSEMBLY INSTRUCTIONS – ENGLISH B SERIES MAINTENANCE INSTRUCTIONS – ENGLISH B SERIES INSTALLATION INSTRUCTIONS – ENGLISH
NO
PART NAME

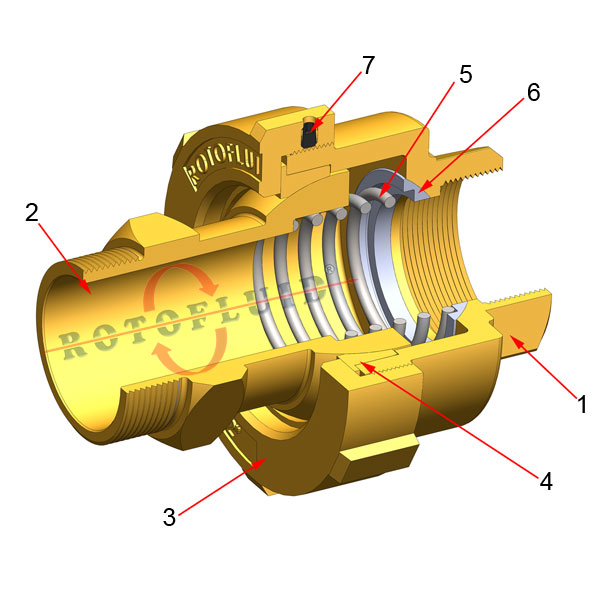

1
B SERIES HOUSING
2
B SERIES SHAFT
3
B SERIES NUT
4
B SERIES SEAL RING
NO
PART NAME
5
SPRING
6
SPRING SEAT
7
CAP SCREW
