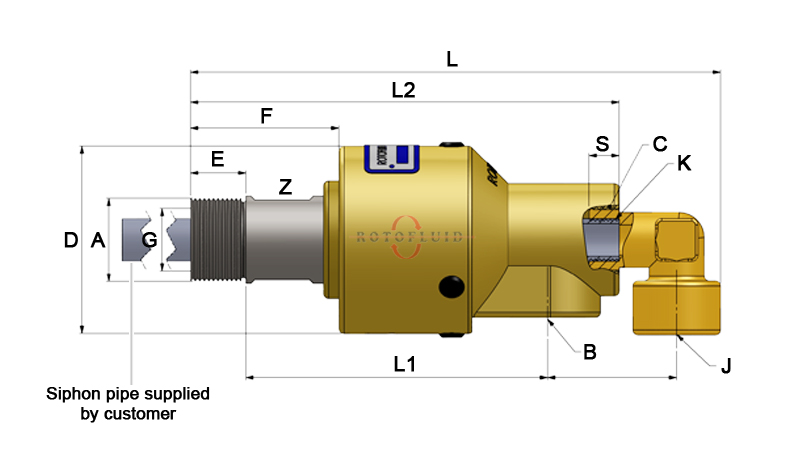

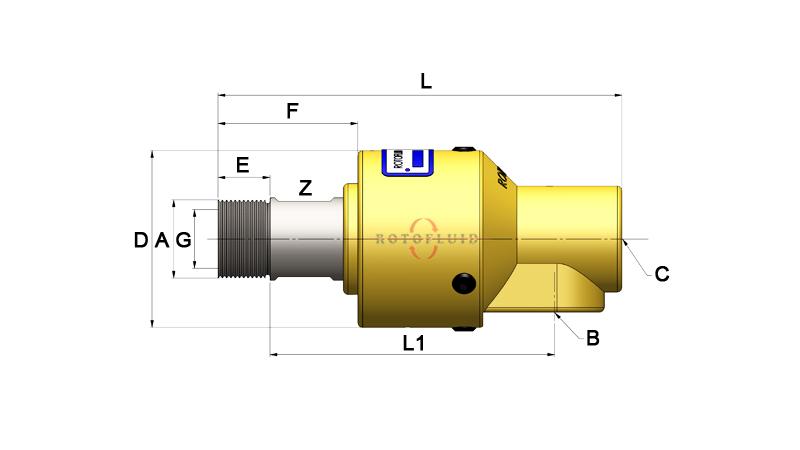

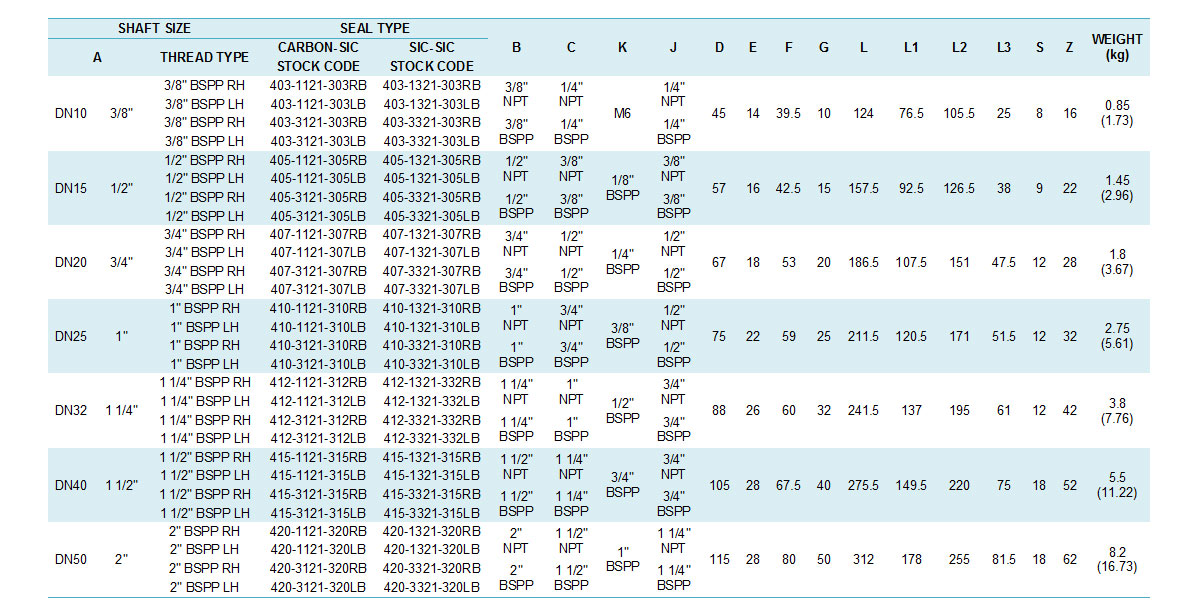

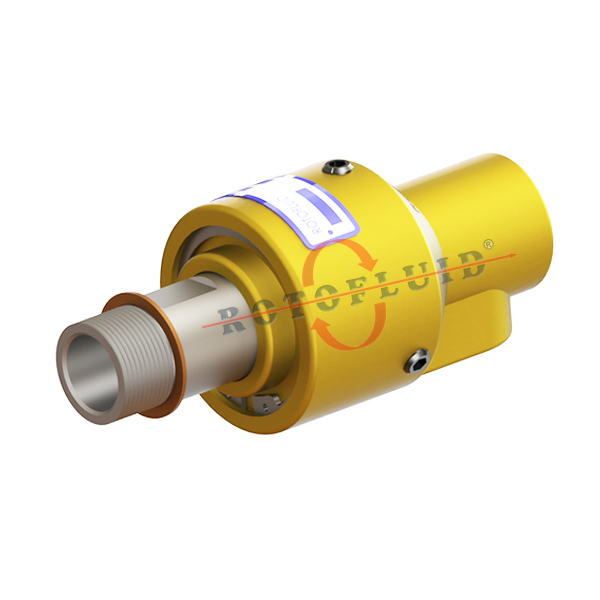

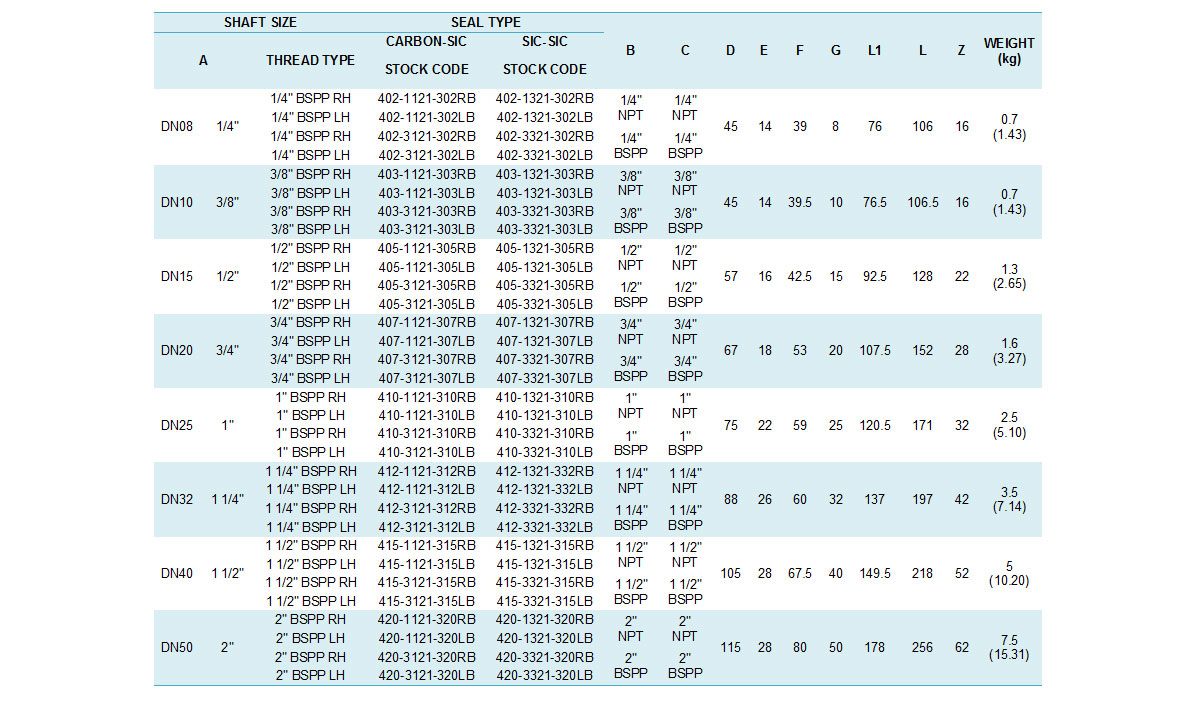

400B Series Rotary Joints
Medium: Water, Buhar, Kızgın Yağ, Hidrolik, Hava
Size: 1/4″ (DN08) – 2″ (DN50)
– Self supported rotary joint
– Single and dual flow models
– Radial housing connection
– Balanced mechanical seals
– Easy and quick replacement of seals
– Reliable usage with poor water quality
– Forged brass housing
– Stainless steel internal parts
– Composite / bronze bearing
– Consult factory for special applications
Max. Pressure: 50 bar (750 psi) Max. Temperature: 160ºC (320ºF) Max. Speed: 100 RPM (100 minˉ¹) Do not work with max. pressure at max. speed.
NO

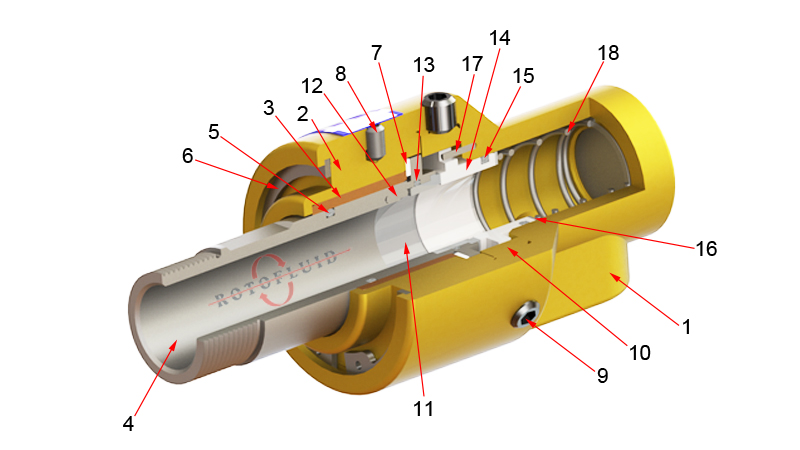

PART NAME
1
400B HOUSING
2
BEARING CASING
3
BEARING
4
SHAFT
5
BEARING O-RING
6
INT. RETAINING RING
7
TEFLON WASHER
8
CAP SCREW
9
CAP SCREW
NO
PART NAME
10
BRASS BRACKET
11
SEAL RING
12
PIM
13
SEAL RING O-RING
14
FLOATING SEAL RING
15
FLOATING SEAL O-RING
16
SPACER
17
PIM
18
SPRING
