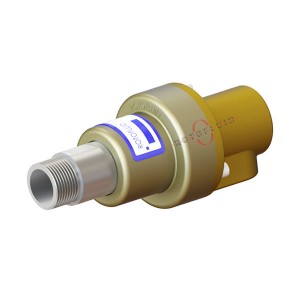

200 Series Rotary Joints
Medium: Steam, Water, Hot Oil
Size: 1/2″ (DN15) – 2″ (DN50)
– Self supported rotary joints
– Single and dual flow models
– Cast iron housing
– Stainless steel internal parts
– Carbon graphite seal ring
– Carbon graphite bearing
– Torque lugs on housing
– Threaded and quick release shaft alternatives
– Seal wear indicator on shaft
– Consult factory for special applications
Max. Pressure: 17 bar (250 psi) Max. Temperature: 200ºC (400ºF) Max. Speed: 400 RPM (400 minˉ¹) Do not work with max. pressure at max. speed.
NO
PART NAME
1
HOUSING
2
SHAFT
3
HOUSING FLANGE
4
GASKET
5
SEAL RING
NO
PART NAME
6
GRAPHITE BEARING
7
SPRING
8
BOLTS
9
PIM
