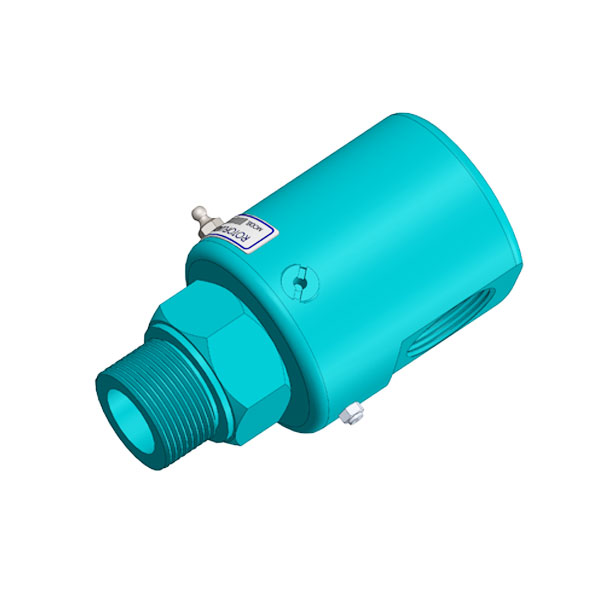

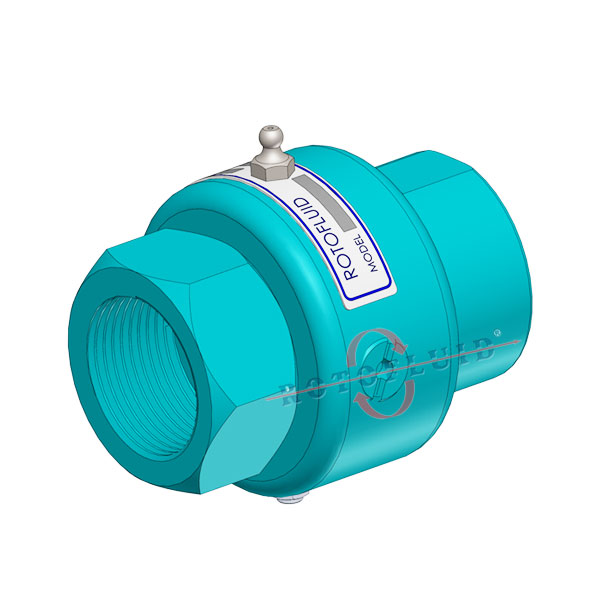

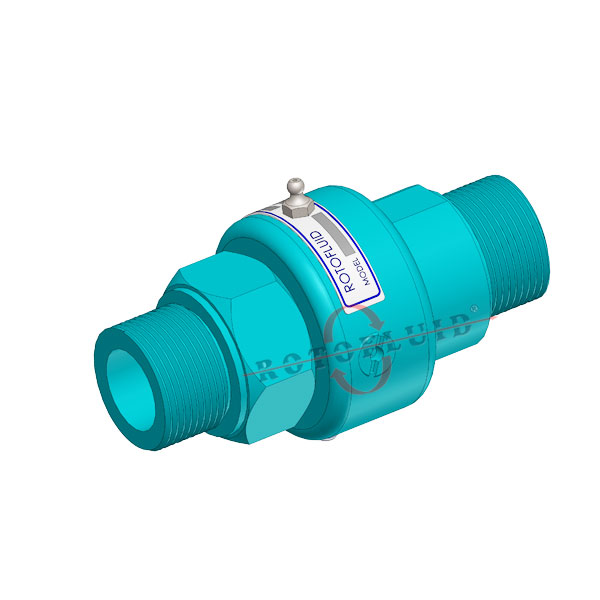

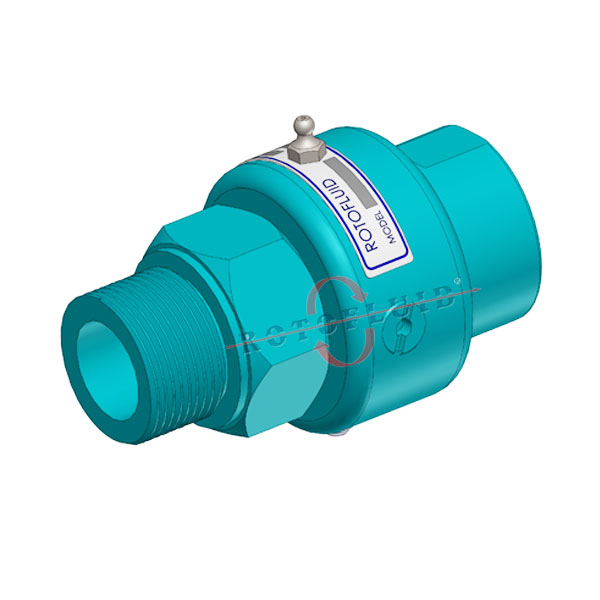

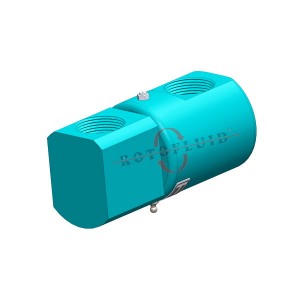

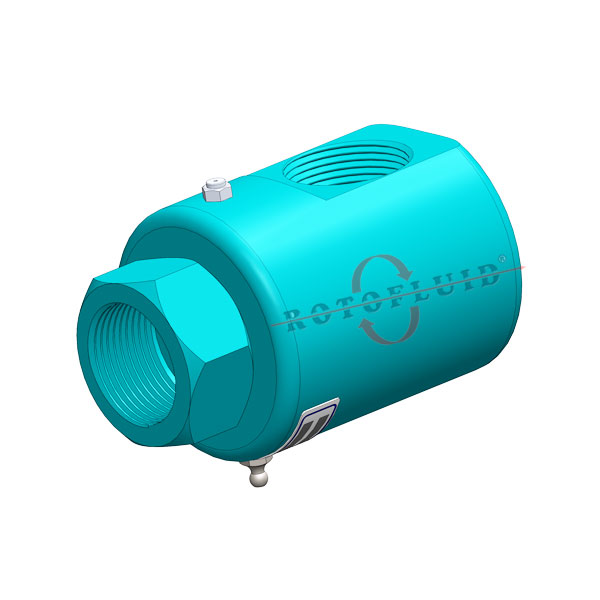

7000 Series – Type 1 Swivel Joints
Medium: Water, Steam, Hot Oil, Hydraulics, Pneumatics, Chemicals, All Liquids
Size: 1/8″(DN06) – 2″ (DN50)
– Single ball race design
– Deep hardened ball race
– Manufactured in 3 configurations
– Different seal alternatives for different applications
– Different connection style alternatives upon customer request

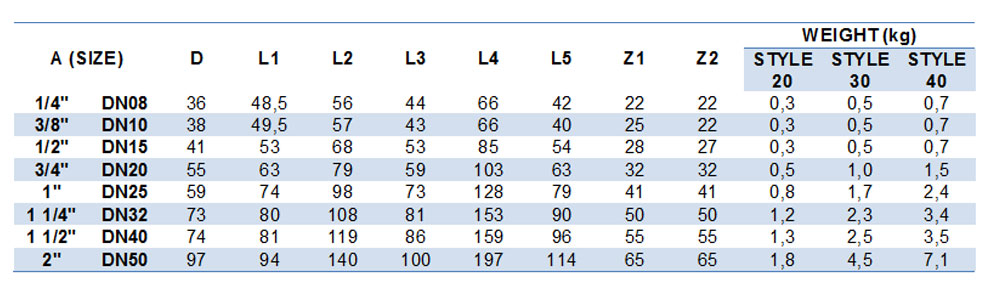

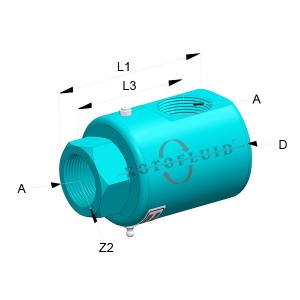

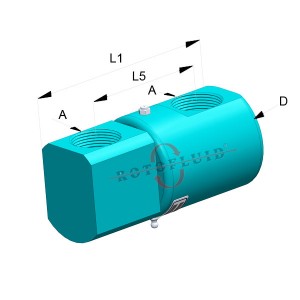

Size: 1/4″ (DN08) – 2″ (DN50) Type 1: Single Ball Race Material: ST52-3, 42CrMo4, AISI304,316,316TI Other materials upon request Max. Temperature: (-50⁰C) – (250⁰C) (-58⁰F) – (437⁰F) Max. Pressure Steel Models: 100 bar (1450 psi) Stainless Steel Models: 40 bar (580 psi) Connection Style: Male&Female Threaded (BSP, NPT, etc.), Socket

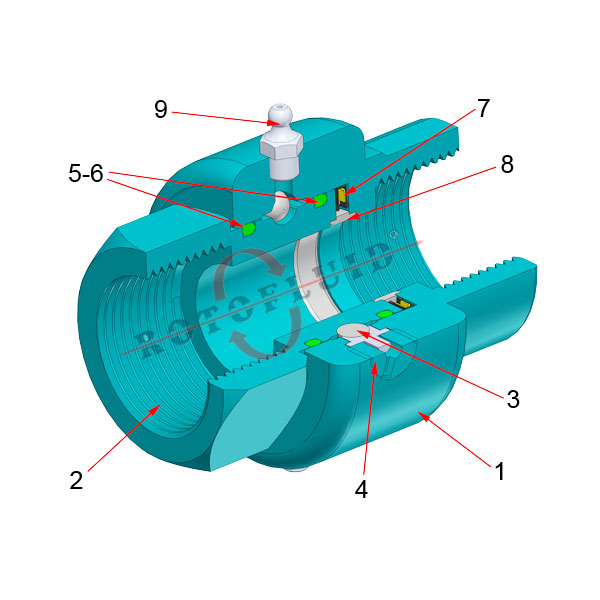

NO
PART NAME
1
7000 SERIES HOUSING
2
7000 SERIES SHAFT
3
BALLS
4
BALL PLUG SET
5
O-RING
NO
PART NAME
6
O-RING
7
SEAL RING
8
INTERNAL SCRAPER
9
GREASE RING
10
GREASE RELIEF FITTING
