1-360⁰ ROTATION IN SINGLE PLANE

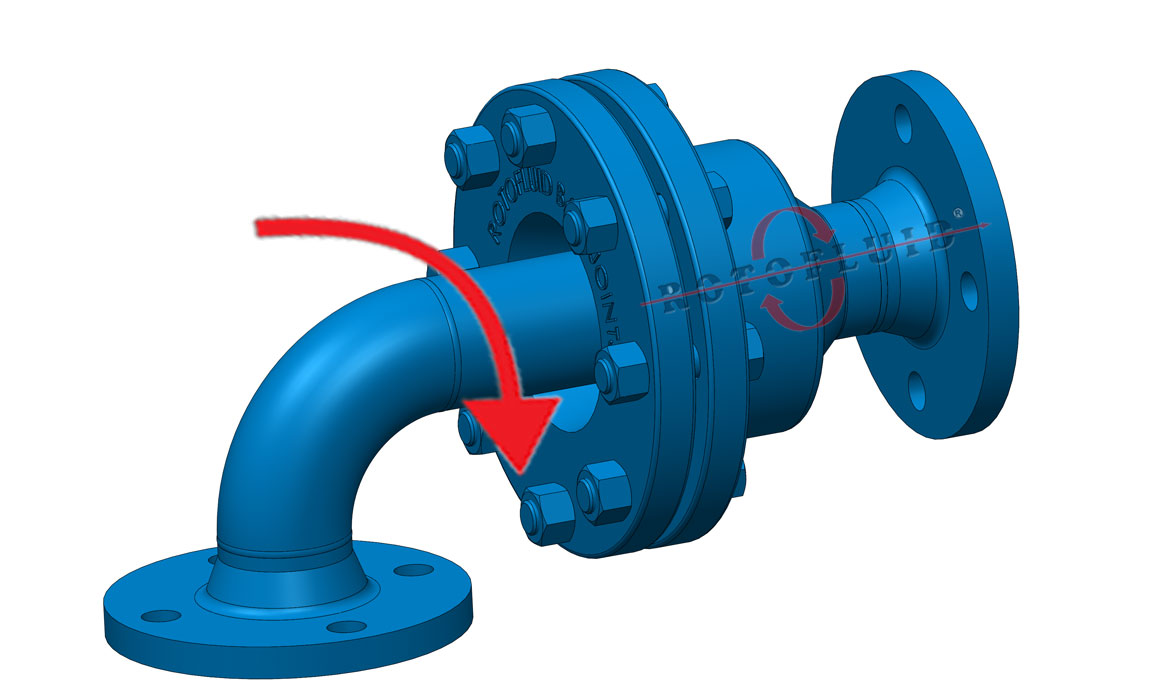

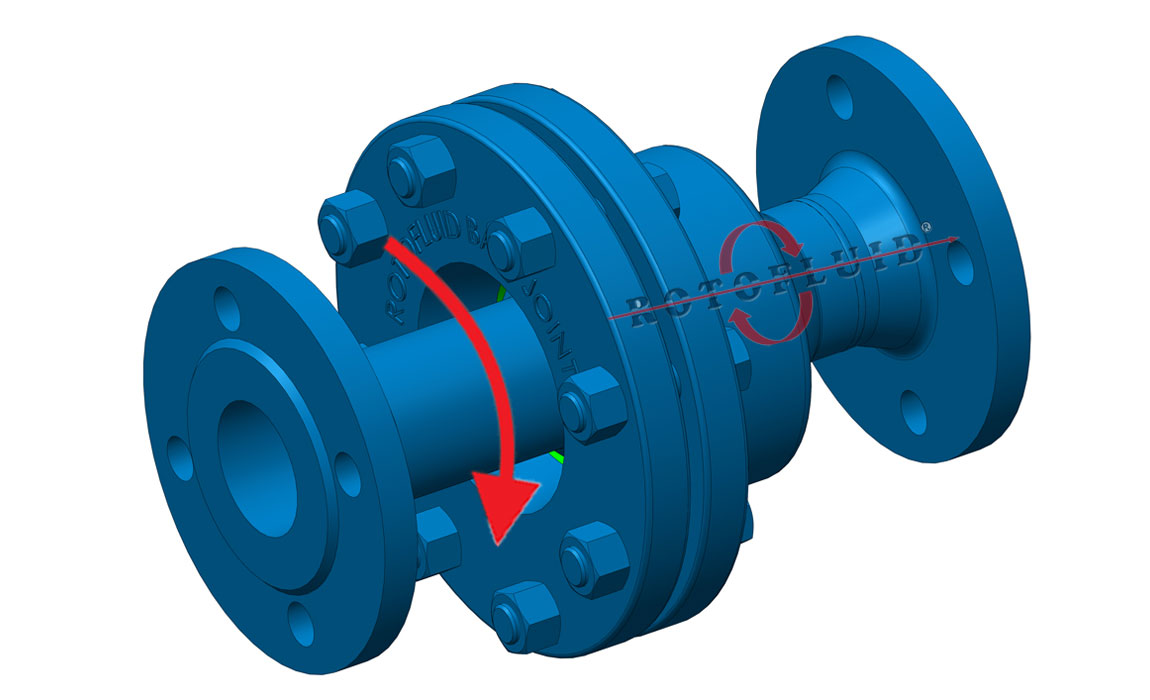

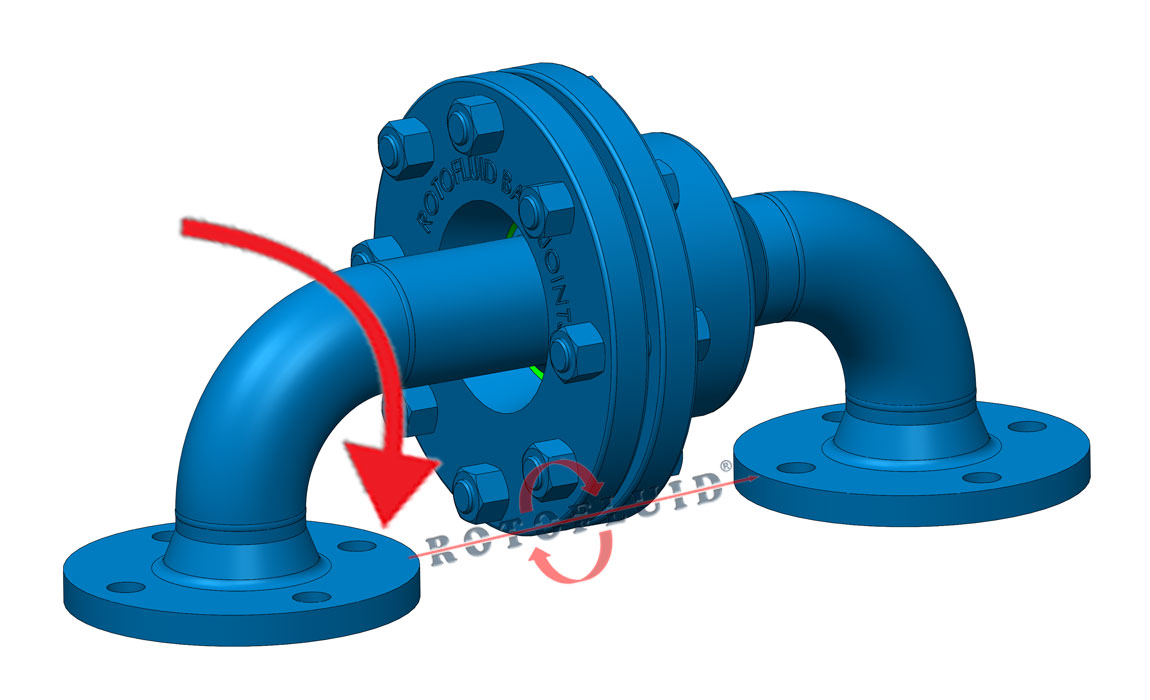

STYLE 20
STYLE 30

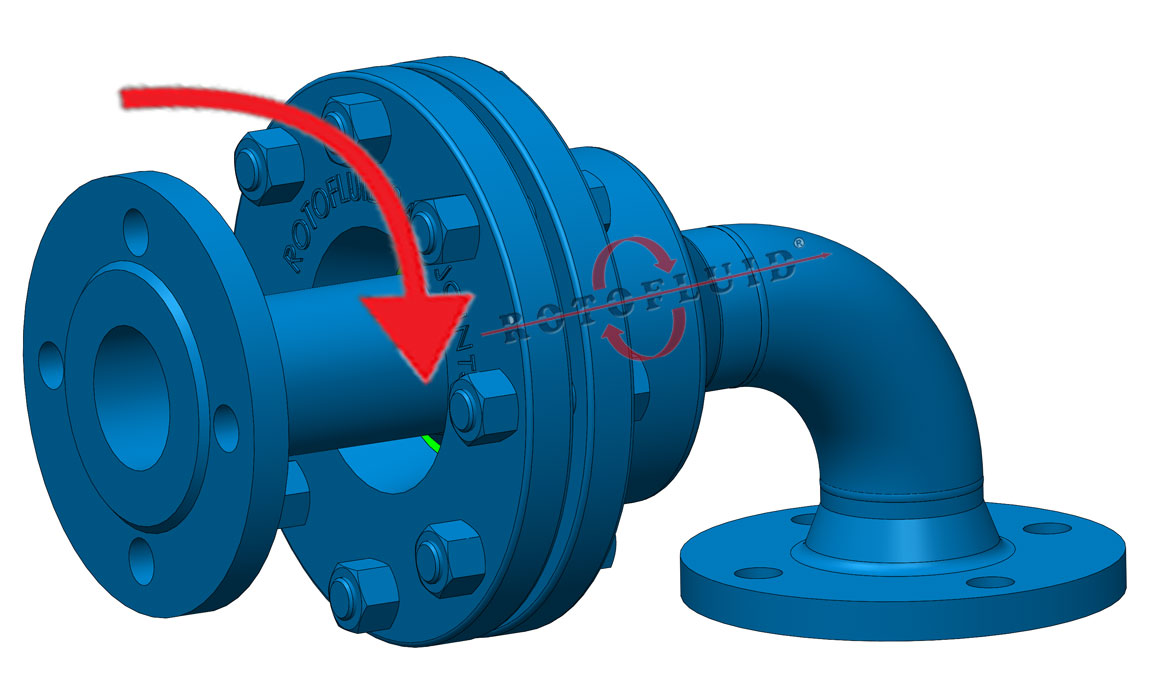

STYLE 30A
STYLE 40
ROTOFLUID BALL JOINTS APPLICATION EXAMPLES
Typical application styles of ball joints are shown below. Ball joints allow rotation in all planes.
Typical application styles of ball joints are shown below. Ball joints allow rotation in all planes.

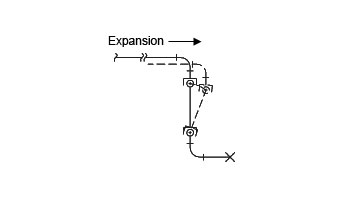

1.Design with two ball joints
2.Design with two ball joints
3.Design with two ball joints

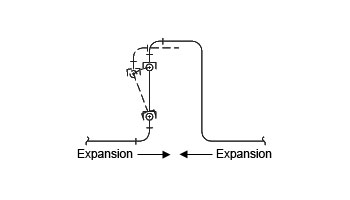

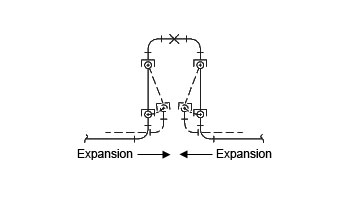

4.Design with four ball joints
5.Design with two ball joints, rotation in two planes

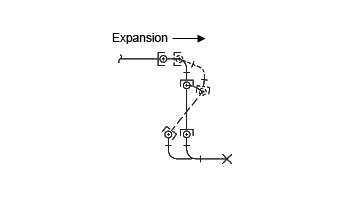

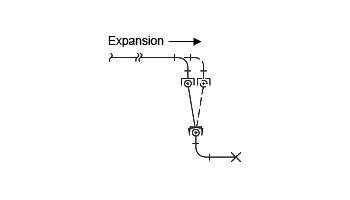

6.Design with three ball joints-rotation in one plane

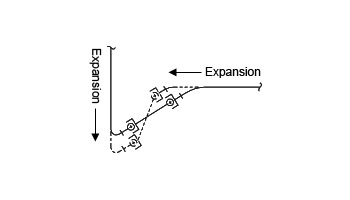

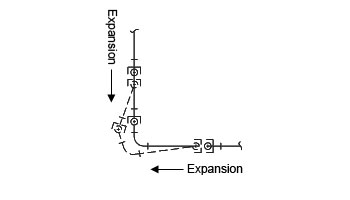

7.Design with three ball joints-rotation in two planes
6.Oilfield wellhead design

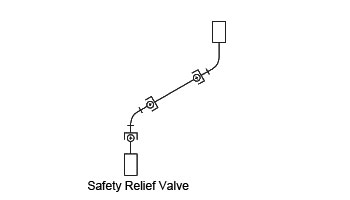

6.Design with three ball joints-safety relief valve piping
