300A Series

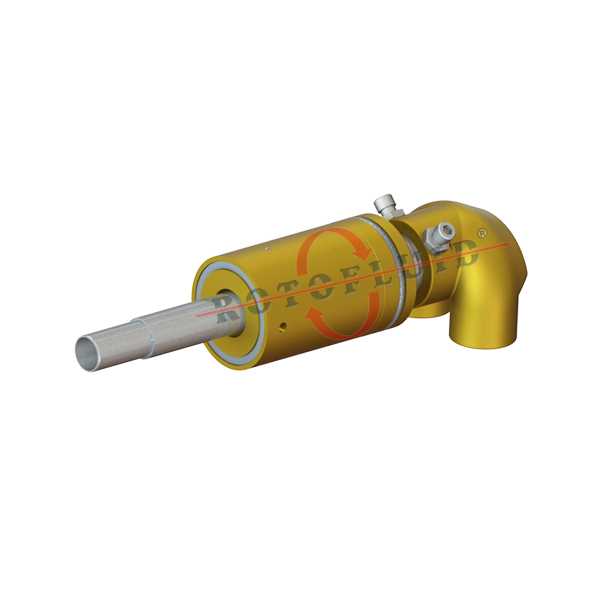

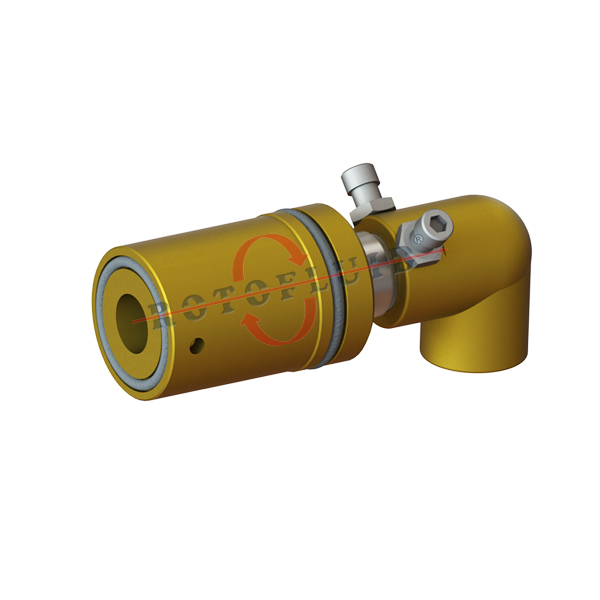

300A Series Continuous Casting Rotary Joints
Medium: Water

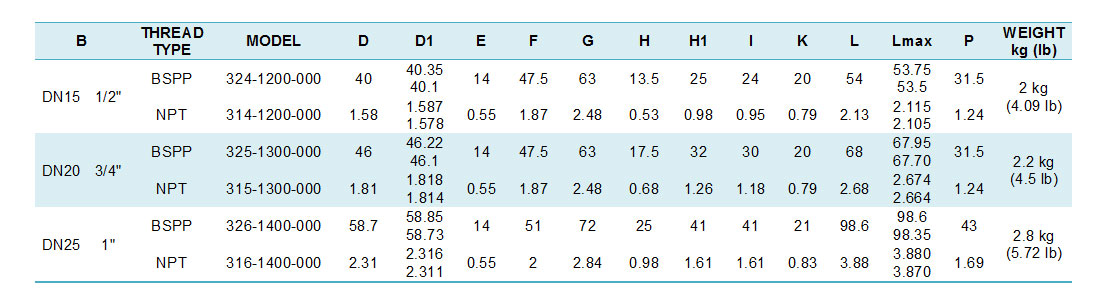

Size: 1/2″ (DN15) – 1 1/2″ (DN40)

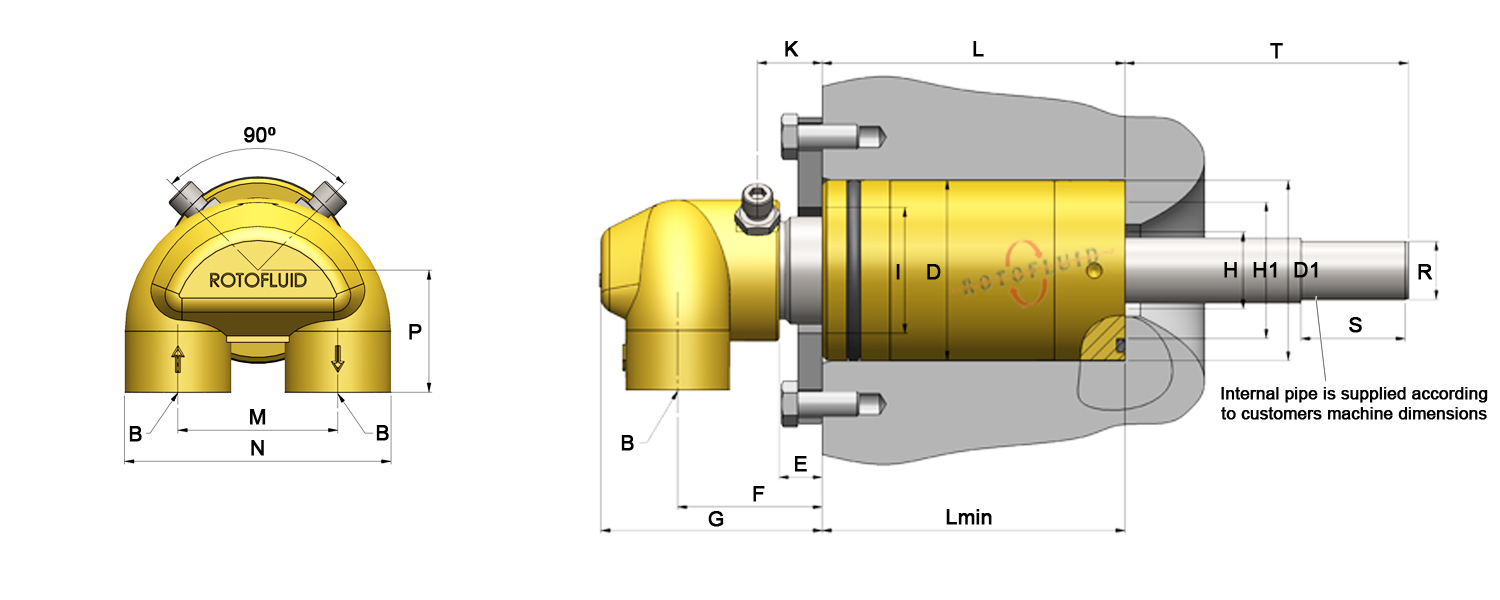

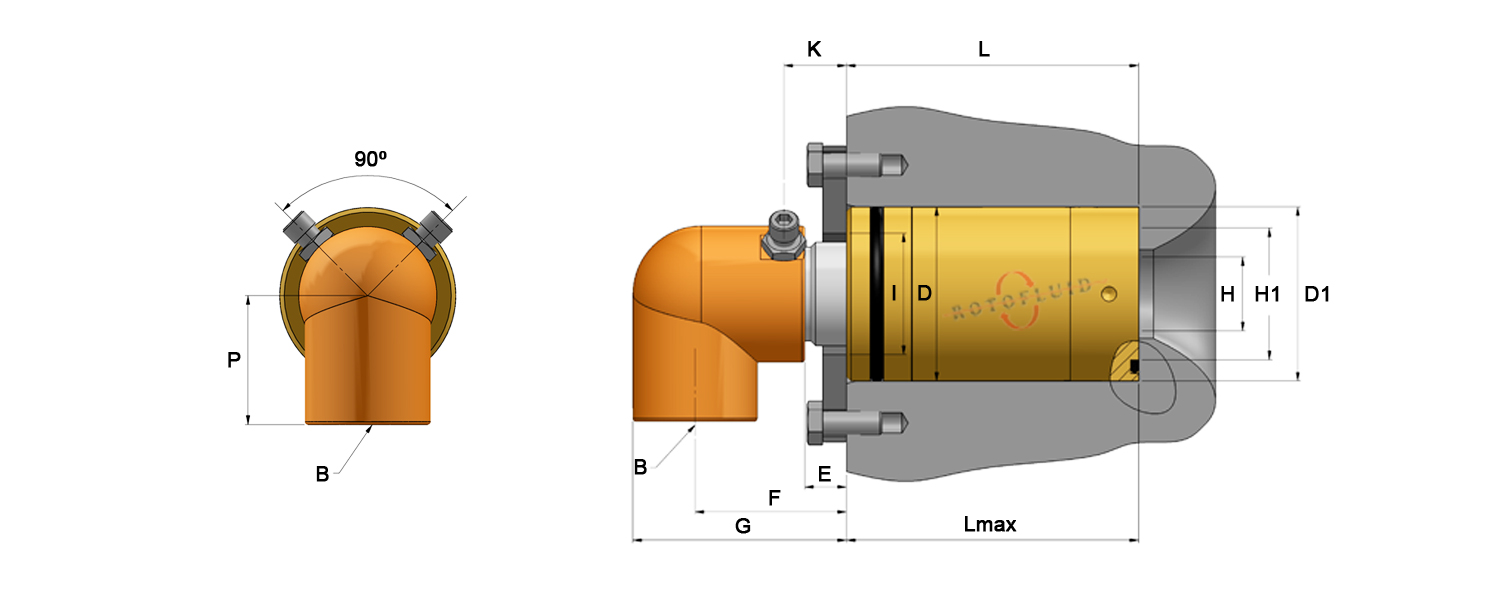

– Single and dual flow models
– In the shaft mounted design
– Assembled with customer’s counter flange
– Full flow design
– Easy and quick replacement of seals
– Reliable useage with poor water quality
– Brass housing and brass elbow
– Complete in stainless steel as option
– Composite / bronze bearing
– Consult factory for special applications
Warning: sizeof(): Parameter must be an array or an object that implements Countable in /home/rotoflui/public_html/wp-content/themes/betheme/woocommerce/single-product/meta.php on line 26
Max. Water Pressure: 10 bar (150 psi) Max. Water Temperature: 120ºC (250ºF) Max. Speed: 100 RPM (100 minˉ¹) Do not work with max. pressure at max. speed.
NO
PART NAME
1
300A HOUSING
2
300A END CAP
3
SHAFT
4
ELBOW
5
BEARING
6
TEFLON WASHER
7
HOUSING O-RING
8
U-CUP
9
SEAL O-RING
NO
PART NAME
10
HOUSING OUTER O-RING
11
HOUSING FRONT O-RING
12
CAP SCREW
13
ELBOW O-RING
14
BOLTS
15
NUT
16
INTERNAL PIPE
17
PIPE O-RING
18
PIM
