7000 Series Type2

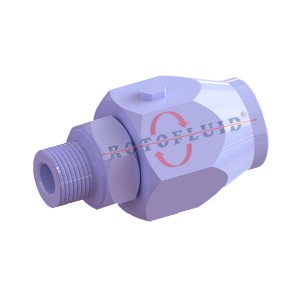

7000 Series – Type 2 Swivel Joints
Medium: Water, Steam, Hot Oil, Hydraulics, Pneumatics, Chemicals, All Liquids
Size: 1/8″(DN06) – 2″ (DN50)
– Dual ball race design
– Deep hardened ball race
– Manufactured in 3 configurations
– Different seal alternatives for different applications
– Different connection style alternatives upon customer request
Warning: sizeof(): Parameter must be an array or an object that implements Countable in /home/rotoflui/public_html/wp-content/themes/betheme/woocommerce/single-product/meta.php on line 26
Size: 1/4″ (DN08) – 2″ (DN50) Type 2: Dual Ball Race Design Materials: ST52-3, 42CrMo4, AISI304,316,316TI Other materials upon request Max. Temperature: (-50⁰C) – (250⁰C) (-58⁰F) – (437⁰F) Max. Pressure: Steel Models: 420 bar (6100 psi) Stainless Steel Models: 100 bar (1450 psi) Connection Styles: Male & Femal Threaded (BSP, NPT, etc.), Socket STYLE 20 STYLE 30 STYLE 40 7000 SERIES – STYLE 20 CONNECTION: MALE-MALE CONNECTION: FEMALE-MALE CONNECTION: METRIC-MALE CONNECTION: MALE-FEMALE CONNECTION: FEMALE-FEMALE CONNECTION: METRIC-FEMALE CONNECTION: MALE-METRIC CONNECTION: FEMALE-METRIC CONNECTION: METRIC-METRIC 7000 SERIES – STYLE 30 CONNECTION: FEMALE-MALE CONNECTION: FEMALE-FEMALE CONNECTION: FEMALE-METRIC
NO
PART NAME
1
7000 SERIES HOUSING
2
7000 SERIES SHAFT
3
BALLS
4
BALL PLUG SET
5
O-RING
NO
PART NAME
6
O-RING
7
SEAL RING
8
INTERNAL SCRAPER
9
GREASE RING
10
GREASE RELIEF VALVE
