C Series Female Threaded
20 October 2015
C Series Flanged
20 October 2015
C Series Weld End
C Series Ball Joint
Medium: Water, Steam, Hot Oil, Hydraulics, Pneumatic
Size: 1″ (DN25) – 4″ (DN100)
– Manufactured in 4 styles
– No lubrication needed
– Steel, brass, stainless steel models
– Special materials upon request
– Very slow speed, articulated motion only
– ±15⁰ angular movement
Warning: sizeof(): Parameter must be an array or an object that implements Countable in /home/rotoflui/public_html/wp-content/themes/betheme/woocommerce/single-product/meta.php on line 26

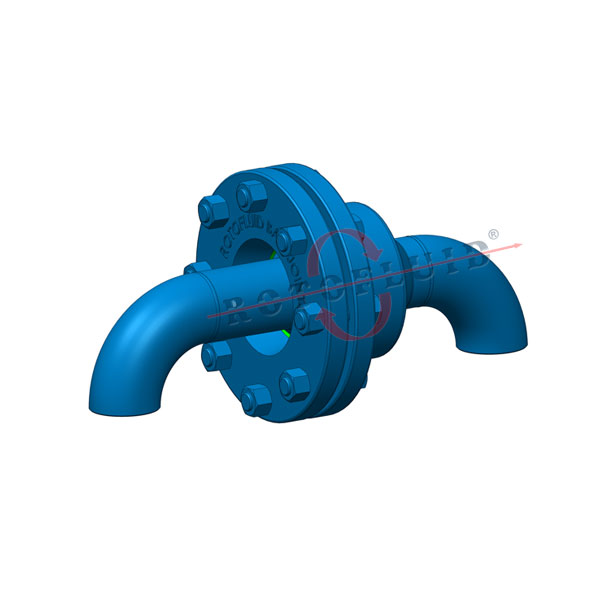

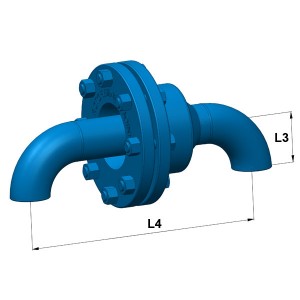

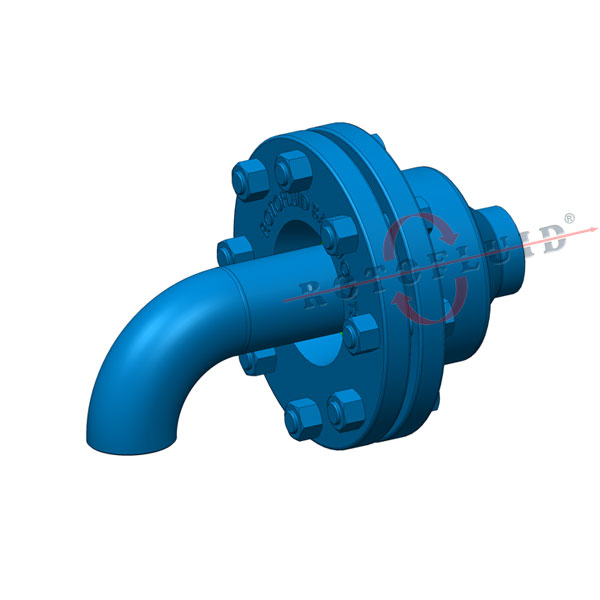

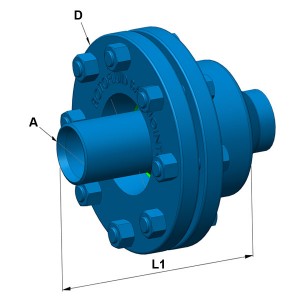

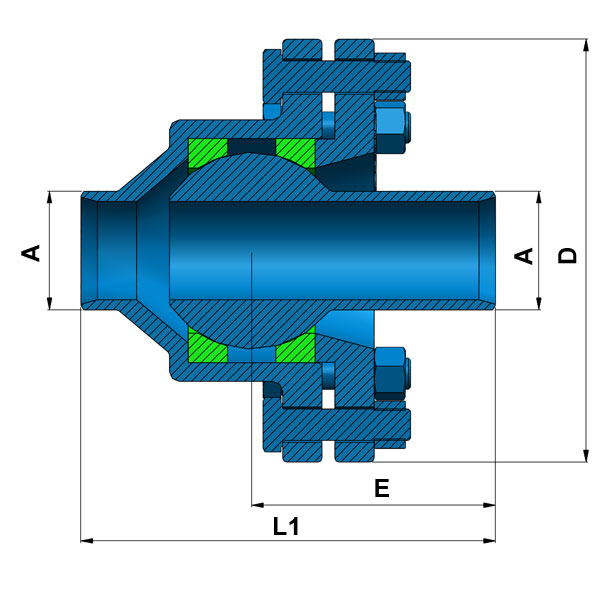

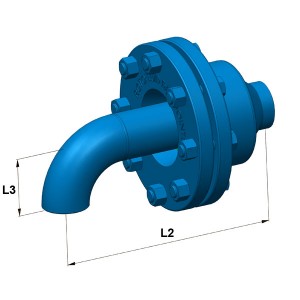

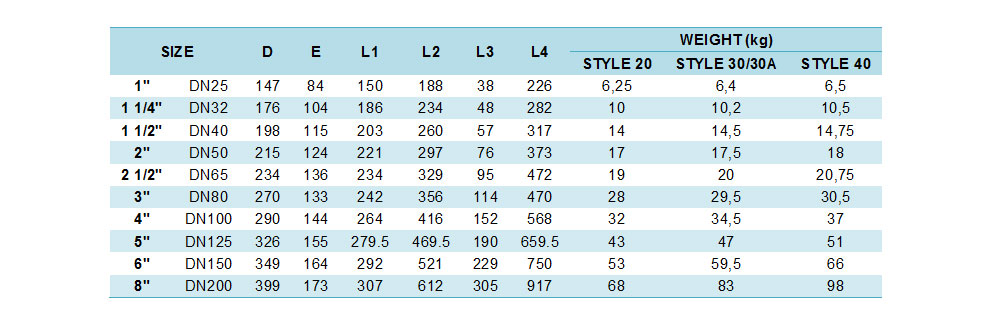

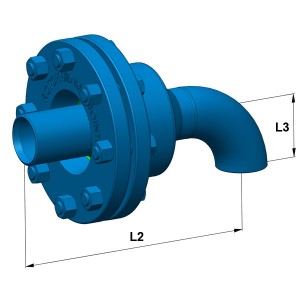

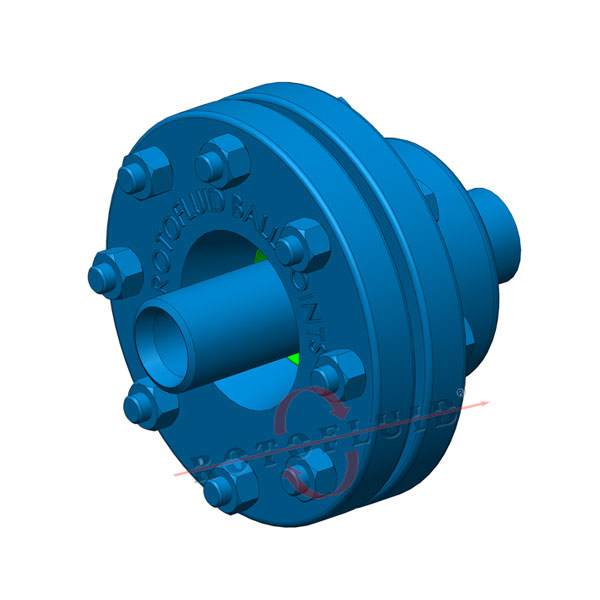

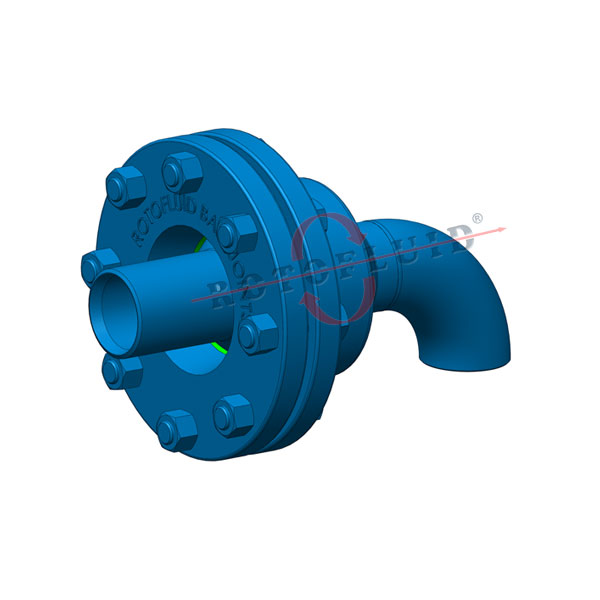

Size: 1” (DN25) – 4” (DN100) Material: ST52-3, 42CrMo4, AISI304/316/316TI Max. Temperature: (-20⁰C) – (120⁰C) / (-4⁰F) – (+250⁰F) Max. Pressure: 20 bar (290 psi) Max. Angular Movement: ±15⁰ Max. Speed: Very slow speed, articulated motion only STYLE 20 STYLE 30 STYLE 30A STYLE 40 C SERIES INSTALLATION & OPERATION & ASSEMBLY INSTRUCTIONS – ENGLISH C SERIES MAINTENANCE INSTRUCTIONS – ENGLISH B SERIES INSTALLATION INSTRUCTIONS – ENGLISH

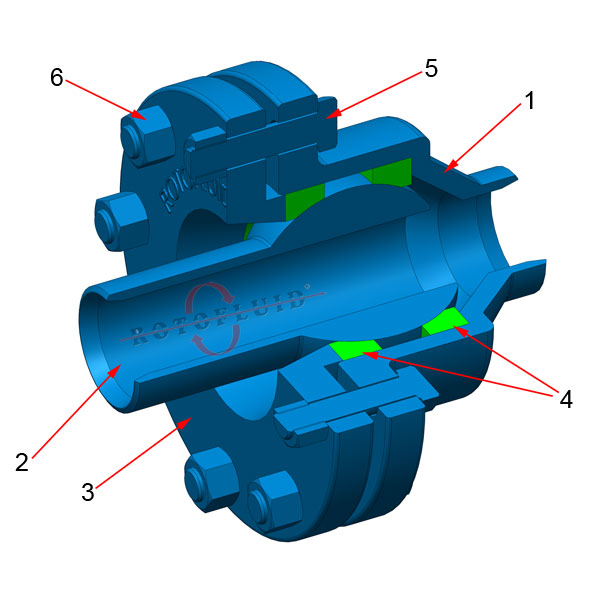

NO
PART NAME
1
HOUSING
2
SHAFT
3
HOUSING FLANGE
NO
PART NAME
4
SEALRING
5
BOLTS
6
NUT
Reviews
There are no reviews yet.
