10 Series-Axial

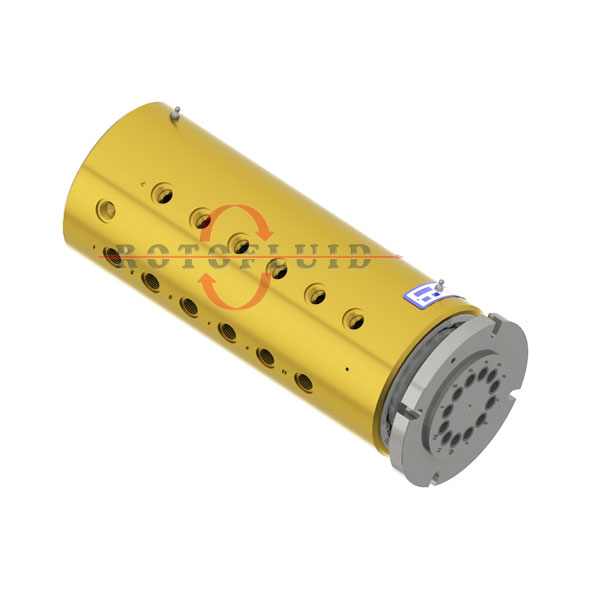

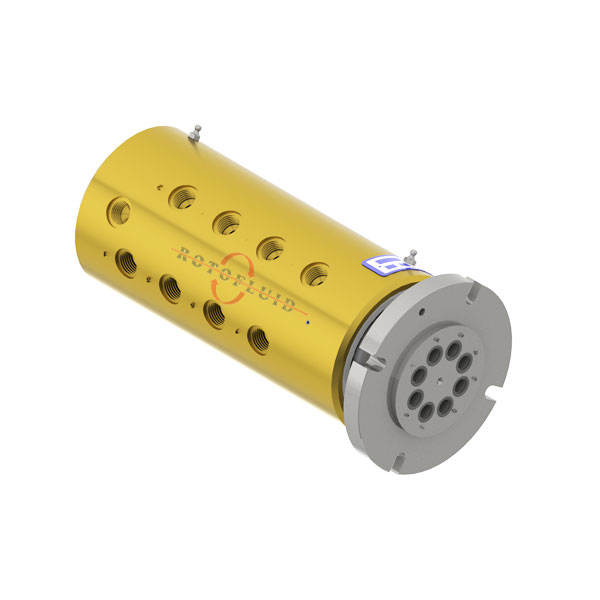

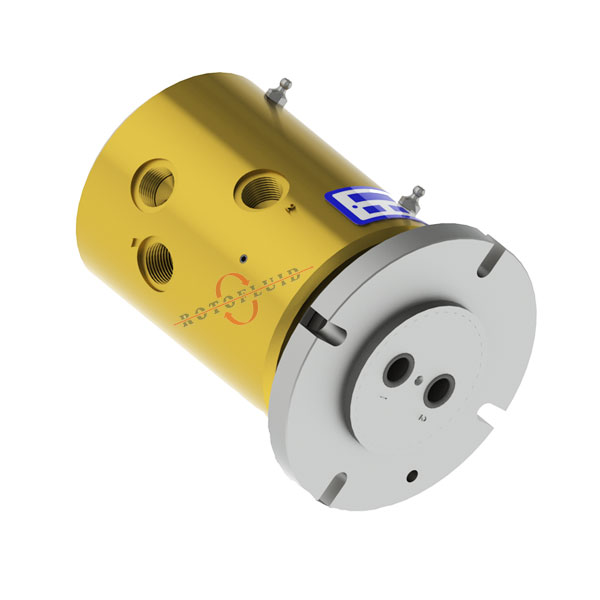

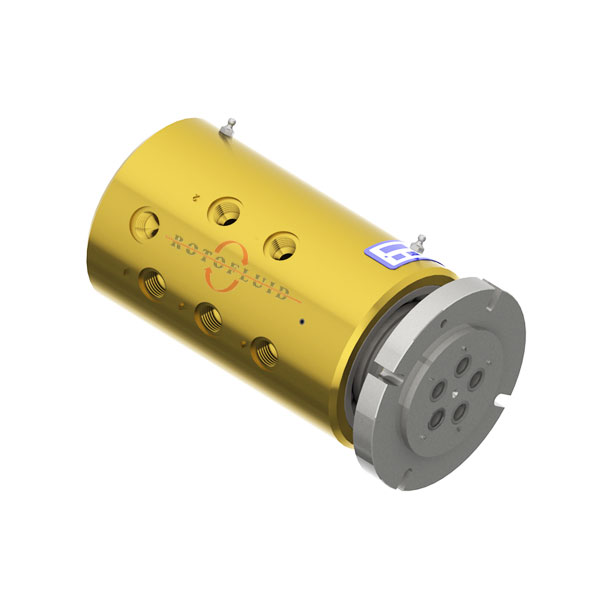

10 Series Multi Channel Rotary Joints
Medium: Air, Hydraulics, Vacuum, Water, Gases, All Kinds of Liquids
Port Size: 1/8″ (DN06) – 1″ (DN25)
Port#: 2-12 Ports Standard
-Self supported design
-Radial hose connections on housing as standard
-Axial / Radial shaft outlets
-Steel, stainless, brass, aluminium material alternatives
-Hard chrome plating on sealing surfaces
-Special models for special applications
Warning: sizeof(): Parameter must be an array or an object that implements Countable in /home/rotoflui/public_html/wp-content/themes/betheme/woocommerce/single-product/meta.php on line 26
Max. Pressure: 450 bar (6500 psi) Max. Temperature: 120ºC (250ºF) Max. Speed: 250 RPM (250 minˉ¹) Do not work with max. pressure at max. speed.

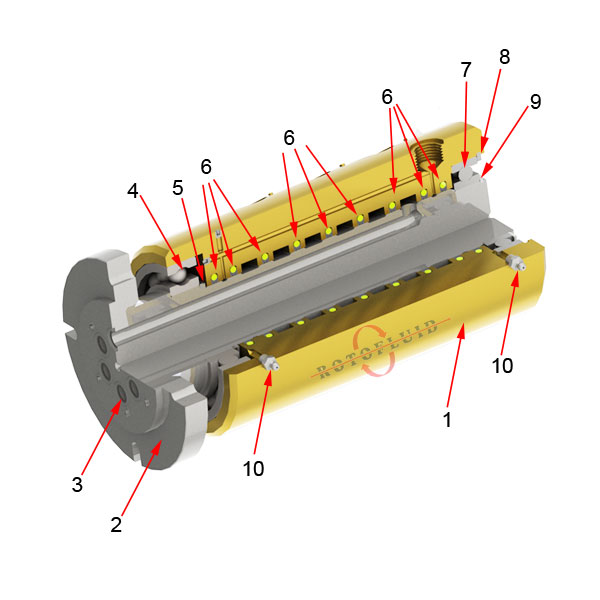

NO
PART NAME
1
HOUSING
2
SHAFT – STRAIGHT
3
FLANGE O-RING
4
FRONT BALL BEARING
5
EXT. RETAINING RING
6a
SEAL O-RING
NO
PART NAME
6b
BACK-UP
7
REAR BALL BEARING
8
INT. RETAINING RING
9
EXT. RETAINING RING
10
GREASE RING
