9000 Series Style30

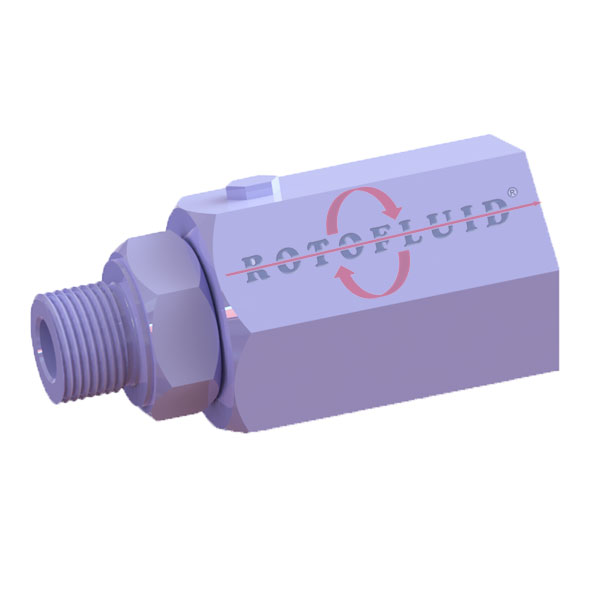

9000 Series – Style 30 Swivel Joints
Medium: Water, Hydraulics, Pneumatics, Chemicals, All Liquids
Size: 1/8″(DN06) – 2 1/2″ (DN65)
– Single Ball Race(<3/4″) and Dual Ball Race(>3/4″) Alternatives
– Different seal alternatives for different applications
– Different connection style alternatives upon customer request
Warning: sizeof(): Parameter must be an array or an object that implements Countable in /home/rotoflui/public_html/wp-content/themes/betheme/woocommerce/single-product/meta.php on line 26

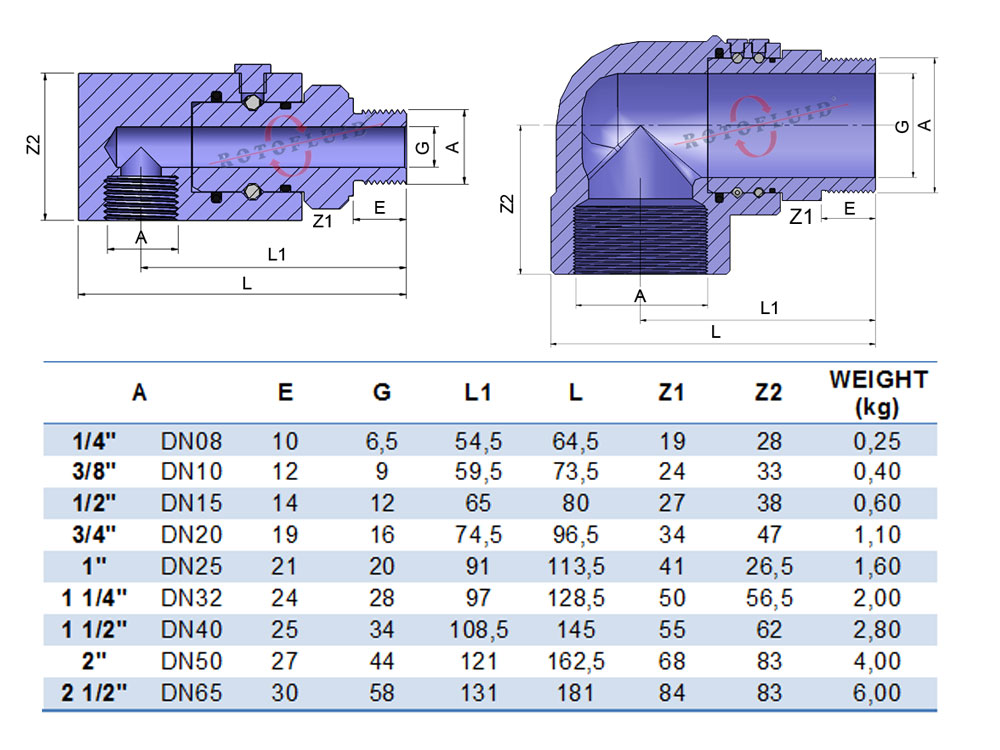

Size: 1/4″ (DN08) – 2 1/2″ (DN65) Materials: ST52-3, 42CrMo4, AISI304,316,316TI Other materials upon request Max. Temperature: (-50⁰C) – (250⁰C) / (-58⁰F) – (437⁰F) Max. Static Pressure: 400 bar (5800 psi) Max. Dynamic Pressure: 200 bar (2900 psi) Connection: Threaded (BSP, NPT, etc.)

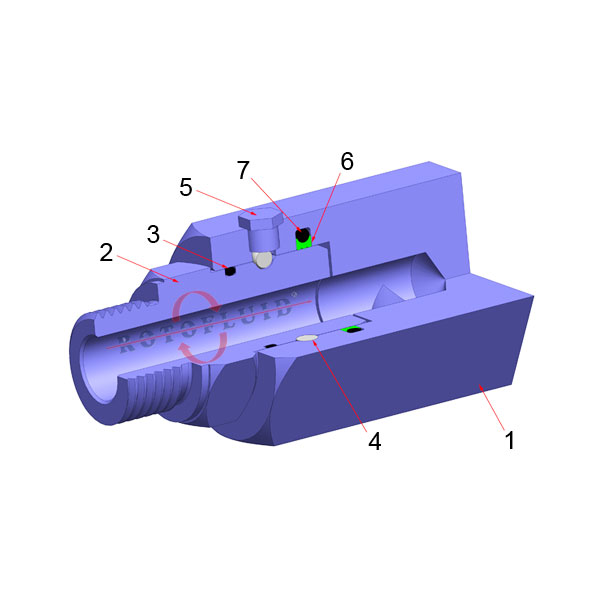

NO
PART NAME
1
HOUSING – RADIAL
2
SHAFT
3
O-RING
4
BALLS
NO
PART NAME
5
BALL PLUG
6
BACK-UP
7
SEAL O-RING
