1000 Series Swivel Joints
Medium: Water, Steam, Hot Oil, Chemicals, All kinds of liquids, Gases
Size: 3/4″ (DN20) – 4″ (DN100)
– Single Ball Race
– Deep hardened ball race

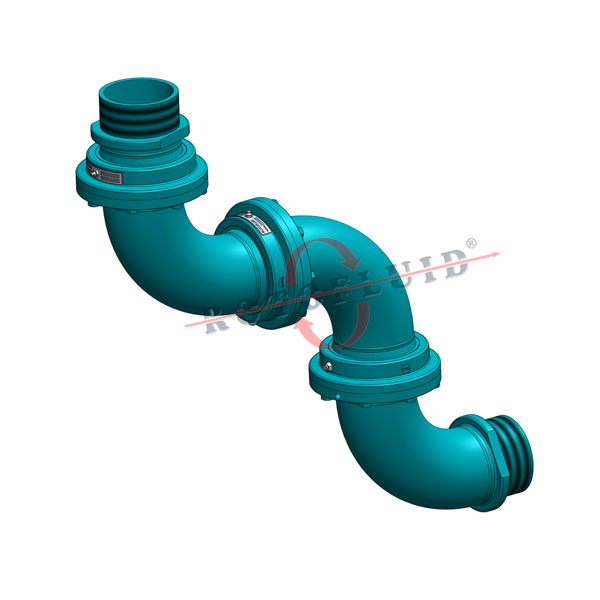

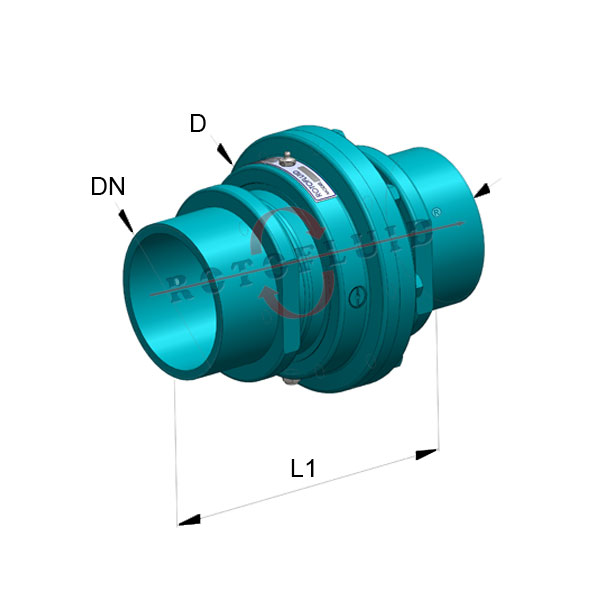

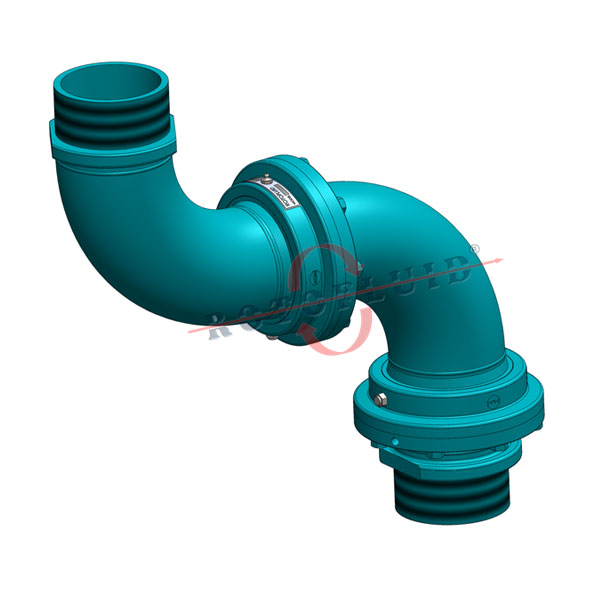

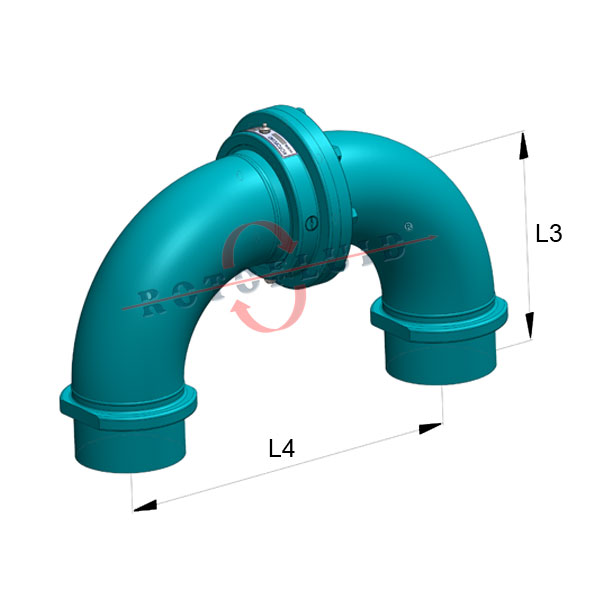

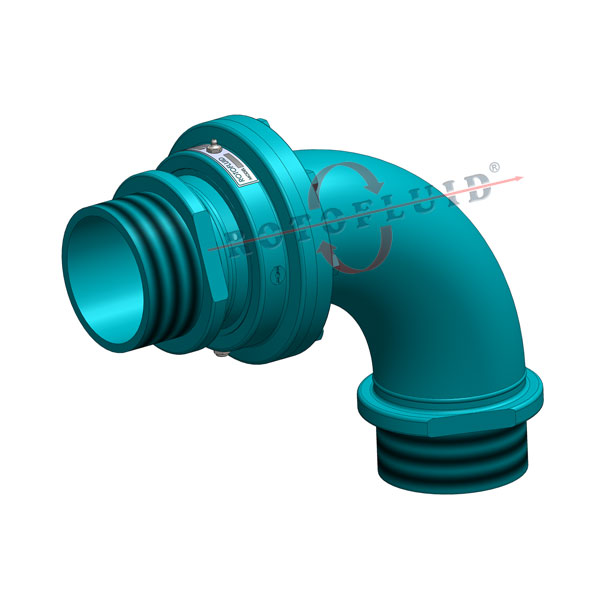

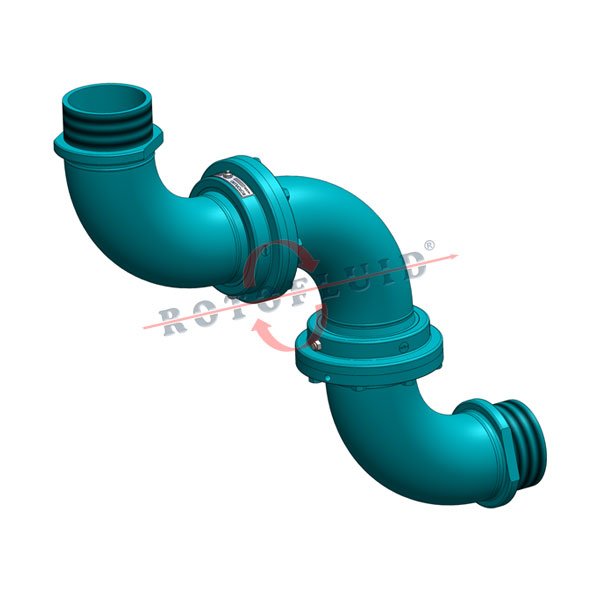

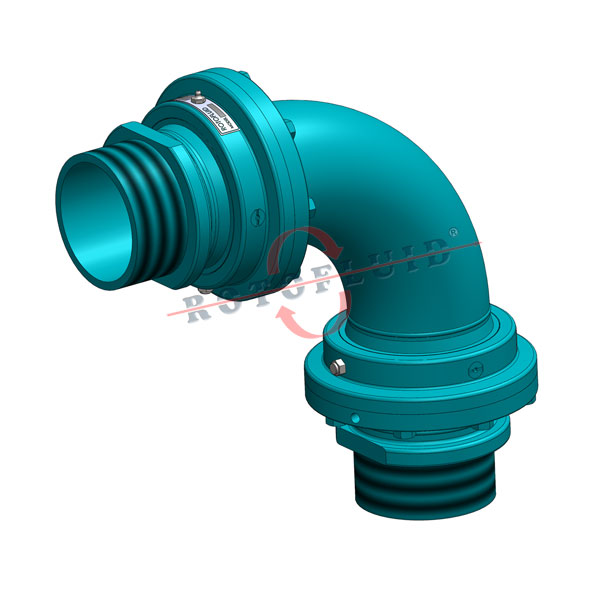

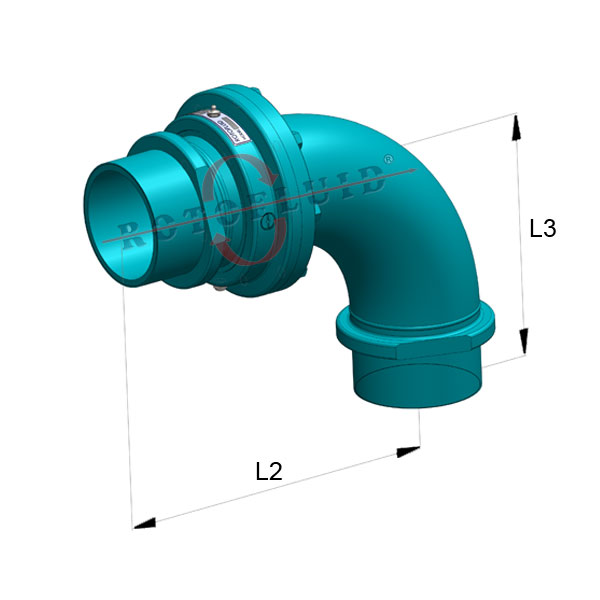

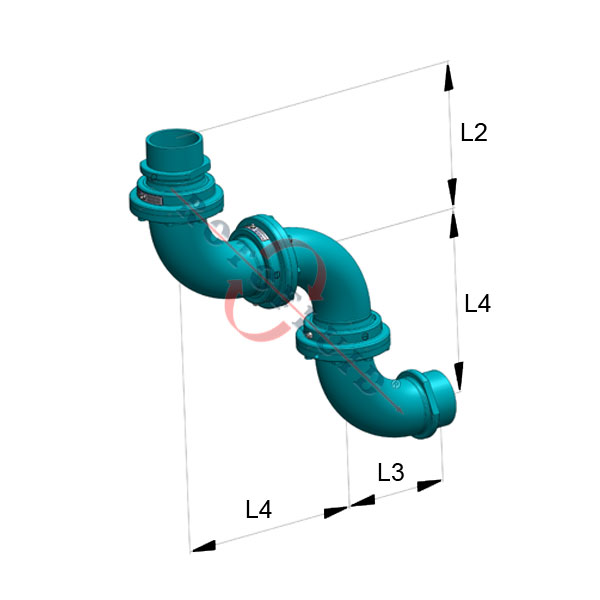

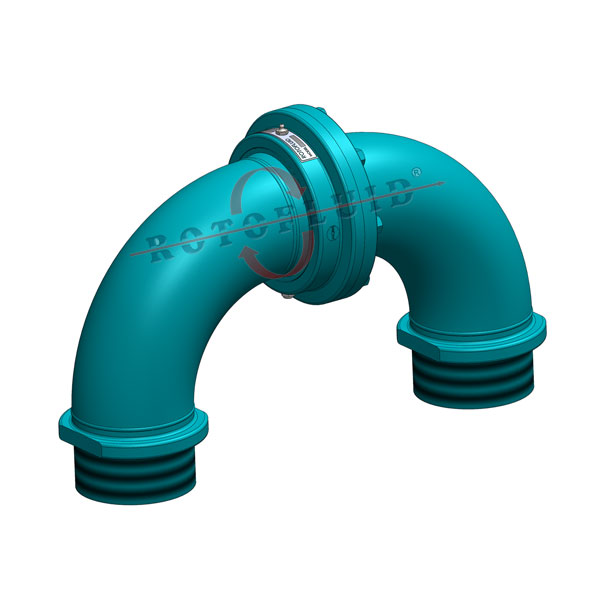

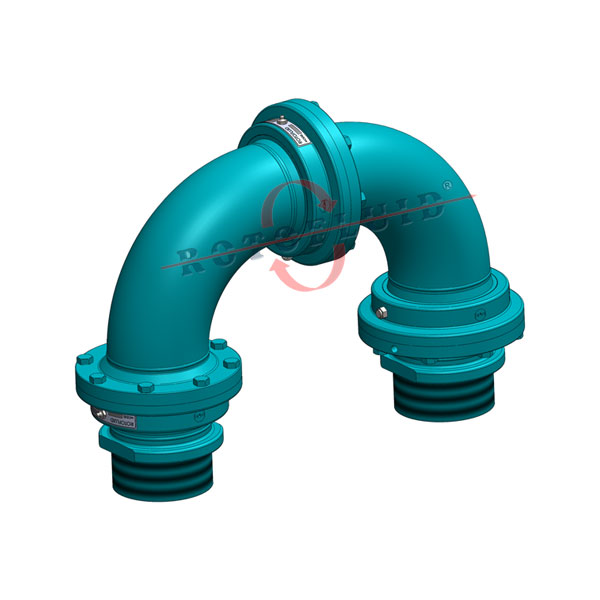

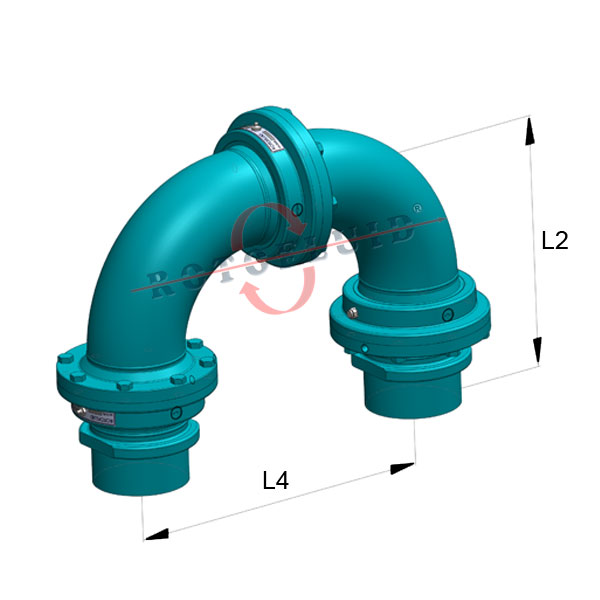

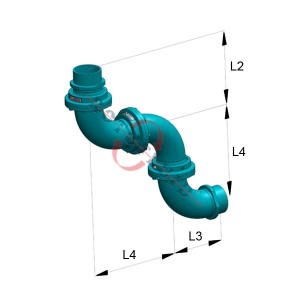

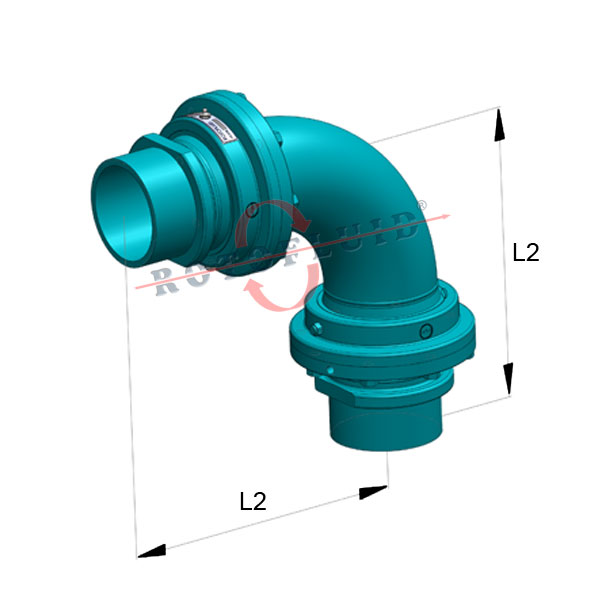

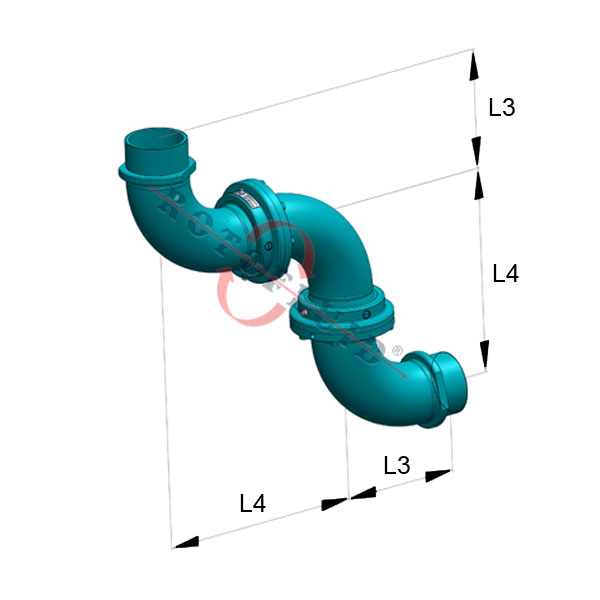

– Manufactured in 8 different styles
– Different seal alternatives for different applications
– Different connection style alternatives upon customer request
Size: 3/4″ (DN20) – 4″ (DN100) Material: St52-3, 42CrMo4, AISI304,AISI316,AISI316TI Other materials upon request Max. Temperature: (-50°C) – (250°C) (-58°F) – (+437°F) Max. Pressure: Steel Models 100 bar (1450 psi) Stainless Steel Models: 40 bar (580 psi) 1000 SERIES MALE THREADED SWIVEL JOINTS 1000 SERIES (O-RING SEAL) INSTALLATION & OPERATION & ASSEMBLY INSTRUCTIONS – ENGLISH 1000 SERIES (Y SEAL) INSTALLATION & OPERATION & ASSEMBLY INSTRUCTIONS – ENGLISH 1000 SERIES (O-RING SEAL) MAINTENANCE INSTRUCTIONS – ENGLISH 1000 SERIES (Y SEAL) MAINTENANCE INSTRUCTIONS – ENGLISH 1000 SERIES INSTALLATION INSTRUCTIONS – ENGLISH
NO
PART NAME
1
1000 SERIES HOUSING
2
1000 SERIES SHAFT
3
HOUSING FLANGE
4
BOLTS
5
BALLS
6
BALL PLUG SET
NO
PART NAME
7
O-RING
8
O-RING
9
SEAL RING
10
DRAIN SEAL
11
GREASE RING
12
GREASE RELIEF VALVE
