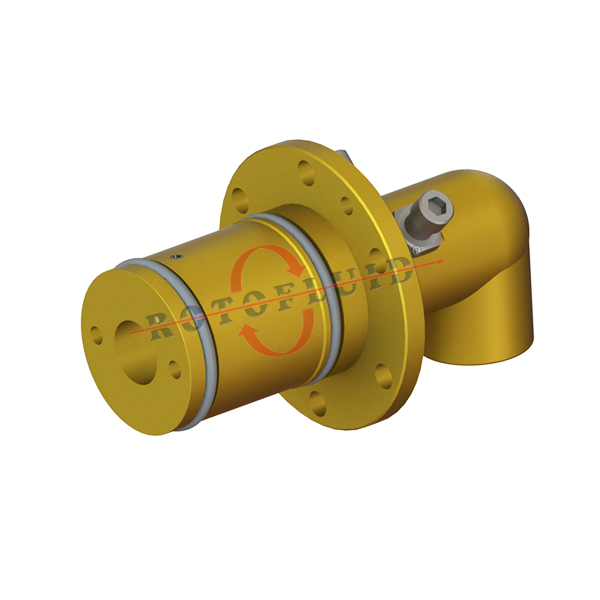

300C Series Continuous Casting Rotary Joints
Medium: Water
Size: 1/2″ (DN15) – 1 1/2″ (DN40)

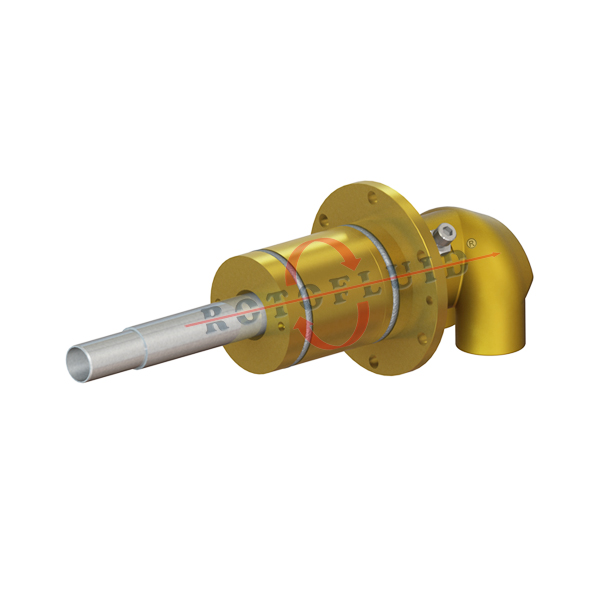

– Single and dual flow models
– In the shaft mounted design
– Assembled with housing flange directly to the machine
– Full flow design
– Easy and quick replacement of seals
– Reliable useage with poor water quality
– Brass housing and brass elbow
– Complete in stainless steel as option
– Composite / bronze bearing
– Consult factory for special applications
Max. Water Pressure: 10 bar (150 psi) Max. Water Temperature: 120ºC (250ºF) Max. Speed: 100 RPM (100 minˉ¹) Do not work with max. pressure at max. speed.

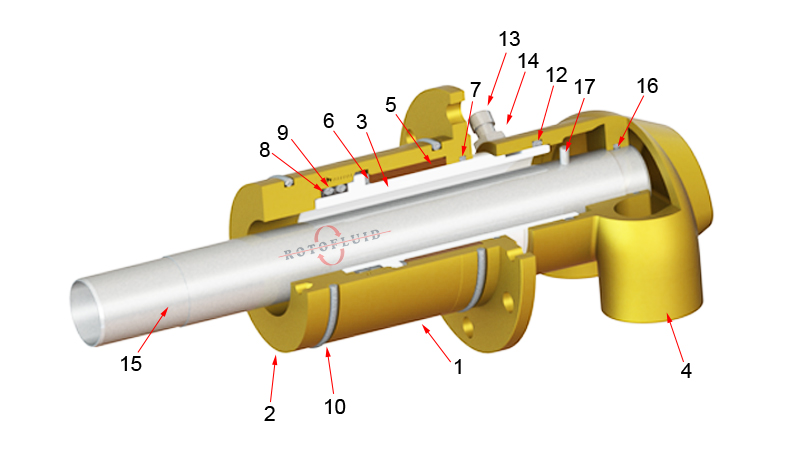

NO
PART NAME
1
300C HOUSING
2
300C END CAP
3
SHAFT
4
ELBOW
5
BEARING
6
TEFLON WASHER
7
HOUSING O-RING
8
U-CUP
9
SEAL O-RING
NO
PART NAME
10
HOUSING OUTER O-RING
11
CAP SCREW
12
ELBOW O-RING
13
BOLT
14
NUT
15
INTERNAL PIPE
16
PIPE O-RING
17
PIM
